Inspection Procedure
- READ VALUE ON TECHSTREAM
- Check the Data List to determine if the back door lock function properly.
Back Door (Power back door ECU)
DIAGNOSTIC NOTE TABLETester Display Measurement Item/Range Normal Condition Diagnostic Note Door Lock Status Back door lock condition signal / LOCK or UNLOCK LOCK Back door is locked
UNLOCK Back door is unlocked- OK: The back door functions as specified in the normal condition.
NG: Go to step 7
OK: Go to next step
- Check the Data List to determine if the back door lock function properly.
- READ VALUE ON TECHSTREAM
- Check the Data List to determine if the back door handle switch function properly.
Main body ECU (Instrument panel junction block)
DIAGNOSTIC NOTE TABLETester Display Measurement Item/Range Normal Condition Diagnostic Note Back Door Open Handle SW Back door opener switch / ON or OFF ON. Back door opener switch is pushed
OFF. Back door opener switch is not pushed- OK: The back door opener switch functions as specified in the normal condition.
NG: Go to step 5
OK: Go to next step
- Check the Data List to determine if the back door handle switch function properly.

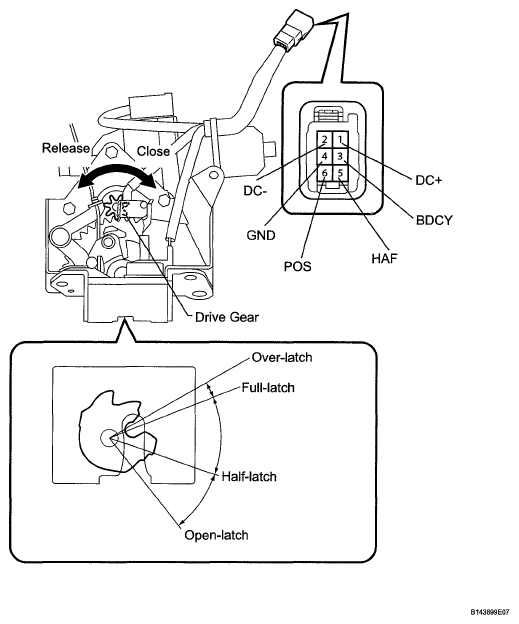

- INSPECT BACK DOOR LOCK
- Remove the back door lock (See REMOVAL ).
- Apply battery voltage and check operation of the door lock motor.
OK
MEASUREMENT SPECIFIED CONDITION TABLEMeasurement Condition Specified Condition Battery positive (+) → Terminal 1 (DC+)
Battery negative (-) → Terminal 2 (DC-)Latch turns to full-latch position Battery positive (+) → Terminal 2 (DC-)
Battery negative (-) → Terminal 1 (DC+)Latch turns to open-latch position - Measure the resistance of the switch.
Standard resistance: Full-latch switch
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Door Lock Latch Position Specified Condition 5 (HAF) - 4 (GND) Over-latch Below 1 Ω 5 (HAF) - 4 (GND) Open-latch 10 kΩ or higher 5 (HAF) - 4 (GND) Full-latch 10 kΩ or higher 5 (HAF) - 4 (GND) Half-latch 10 kΩ or higher Sector switch
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Door Lock Latch Position Specified Condition 6 (POS) - 4 (GND) Open-latch Below 1 Ω 6 (POS) - 4 (GND) Over-latch 10 kΩ or higher 6 (POS) - 4 (GND) Full-latch 10 kΩ or higher 6 (POS) - 4 (GND) Half-latch 10 kΩ or higher Back door courtesy light switch
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Door Lock Latch Position Specified Condition 3 (BDCY) - 4 (GND) Open-latch Below 1 Ω 3 (BDCY) - 4 (GND) Half-latch Below 1 Ω 3 (BDCY) - 4 (GND) Full-latch 10 kΩ or higher 3 (BDCY) - 4 (GND) Over-latch 10 kΩ or higher
NG: REPLACE BACK DOOR LOCK (See REMOVAL )
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (BACK DOOR LOCK - POWER BACK DOOR ECU)
- Disconnect the T4 back door lock connector.
- Disconnect the O15 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Condition Specified Condition T4-1 (DC+) - O15-2 (DC+) Always Below 1 Ω T4-2 (DC-) - O15-1 (DC-) Always Below 1 Ω T4-5 (HAF) - O15-22 (HAF) Always Below 1 Ω T4-6 (POS) - O15-24 (POS) Always Below 1 Ω T4-3 (BDCY) - O15-20 (FUL) Always Below 1 Ω T4-4 (GND) - Body ground Always Below 1 Ω T4-1 (DC+) - Body ground Always 10 kΩ or higher T4-2 (DC-) - Body ground Always 10 kΩ or higher T4-5 (HAF) - Body ground Always 10 kΩ or higher T4-6 (POS) - Body ground Always 10 kΩ or higher T4-3 (BDCY) - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE POWER BACK DOOR DRIVE UNIT (POWER BACK DOOR ECU) (See REMOVAL )

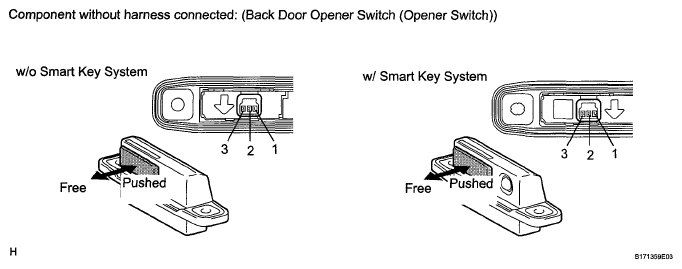

- INSPECT BACK DOOR OPENER SWITCH
- Remove the back door opener switch (See REMOVAL ).
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Switch Position Specified Condition 2 - 3 Back door opener switch not pushed (OFF) 10 kΩ or higher 2 - 3 Back door opener switch pushed (ON) Below 1 Ω
NG: REPLACE BACK DOOR OPEN SWITCH
OK: Go to next step
- CHECK HARNESS AND CONNECTOR (BACK DOOR OPENER SWITCH - MAIN BODY ECU)
- Disconnect the H1 switch connector.
- Disconnect the D8 ECU connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITION TABLETester Connection Condition Specified Condition H1-3 (BDSU) - D8-26 (BDSU) Always Below 1 Ω H1-2 (L) - Body ground Always Below 1 Ω H1-3 (BDSU) - Body ground Always 10 kΩ or higher
NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
- REPLACE POWER BACK DOOR DRIVE UNIT (POWER BACK DOOR ECU)
- Replace the power back door drive unit (power back door ECU) (See REMOVAL ).
- CHECK POWER BACK DOOR DRIVE UNIT (POWER BACK DOOR ECU)
- Check that the back door closer operates normally.
OK: It operates normally.
NG: REPLACE MAIN BODY ECU (INSTRUMENT PANEL JUNCTION BLOCK)
OK: END (REPLACE POWER BACK DOOR DRIVE UNIT (POWER BACK DOOR ECU) DEFECTIVE)
- Check that the back door closer operates normally.
