OEM Junction Block, Ecu & Fuse/Relay Locations (Except Hybrid)
>>
Can Junction Connector Identification
>>
Junction Connector (CAN)
Junction Connector (CAN)
Roof Side Inner Panel LH
(See
Body
)

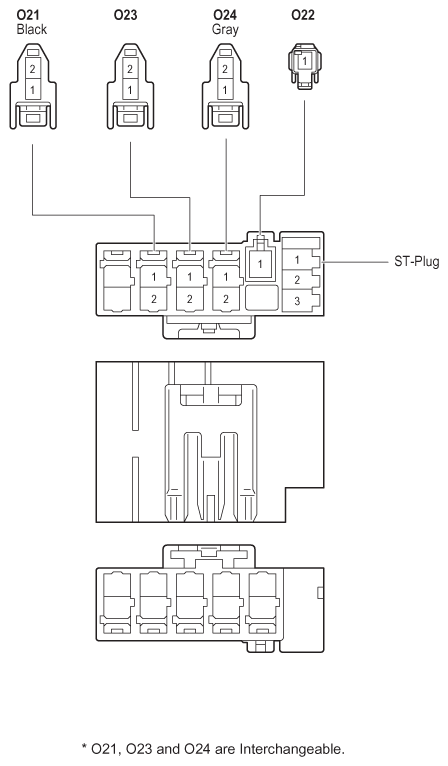

Fig 1: Junction Connector (CAN) Connector Locations - Roof Side Inner Panel LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
