Relay Block, Junction Block & Ecu Locations: Body

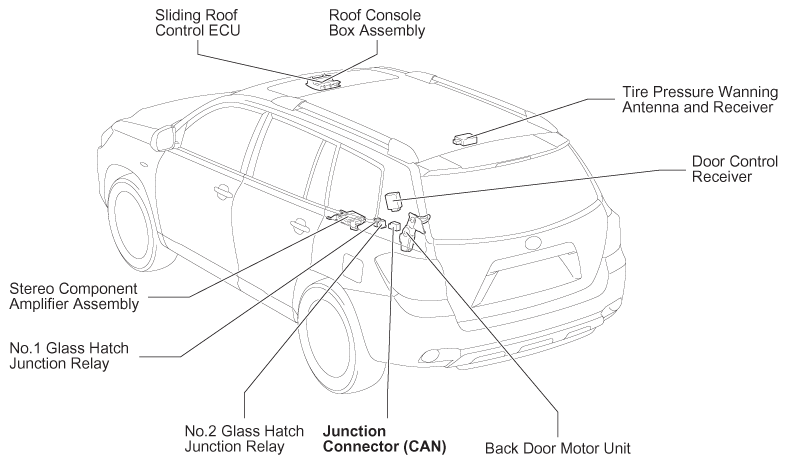

Fig 1: Body ECU And Relay Locations
G07576504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BODY RELAY IDENTIFICATION

RELAY DESCRIPTION
No.2 Glass Hatch Junction Relay
No. 1 Glass Hatch Junction Relay
