SKID CONTROL SENSOR (for 2WD): Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

INSTALL SKID CONTROL SENSOR LH
1. Clean the contact surfaces of the axle hub and speed sensor.
  NOTE: Make sure the sensor rotor is clean.
2. Place the speed sensor on the axle hub so that the connector position is as high as possible when the axle hub is installed to the vehicle.

  Fig 1: Installing Skid Control Sensor LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press the speed sensor into the hub and bearing.
  SST 09214-76011
  NOTE:
  - Do not tap the speed sensor directly with a hammer.
  - Check that the speed sensor detection part is clean.
  - Press in the speed sensor straight and slowly.

    Fig 2: Pressing Speed Sensor Into Hub And Bearing
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH
1. Install the rear axle hub and bearing LH (see INSTALLATION ).
INSTALL REAR DISC (See INSTALLATION )
INSTALL REAR DISC BRAKE CYLINDER MOUNTING LH (See INSTALLATION )
INSTALL SKID CONTROL SENSOR WIRE
NOTE: To prevent interference with other parts, do not twist the sensor wire's painted line areas when installing it.

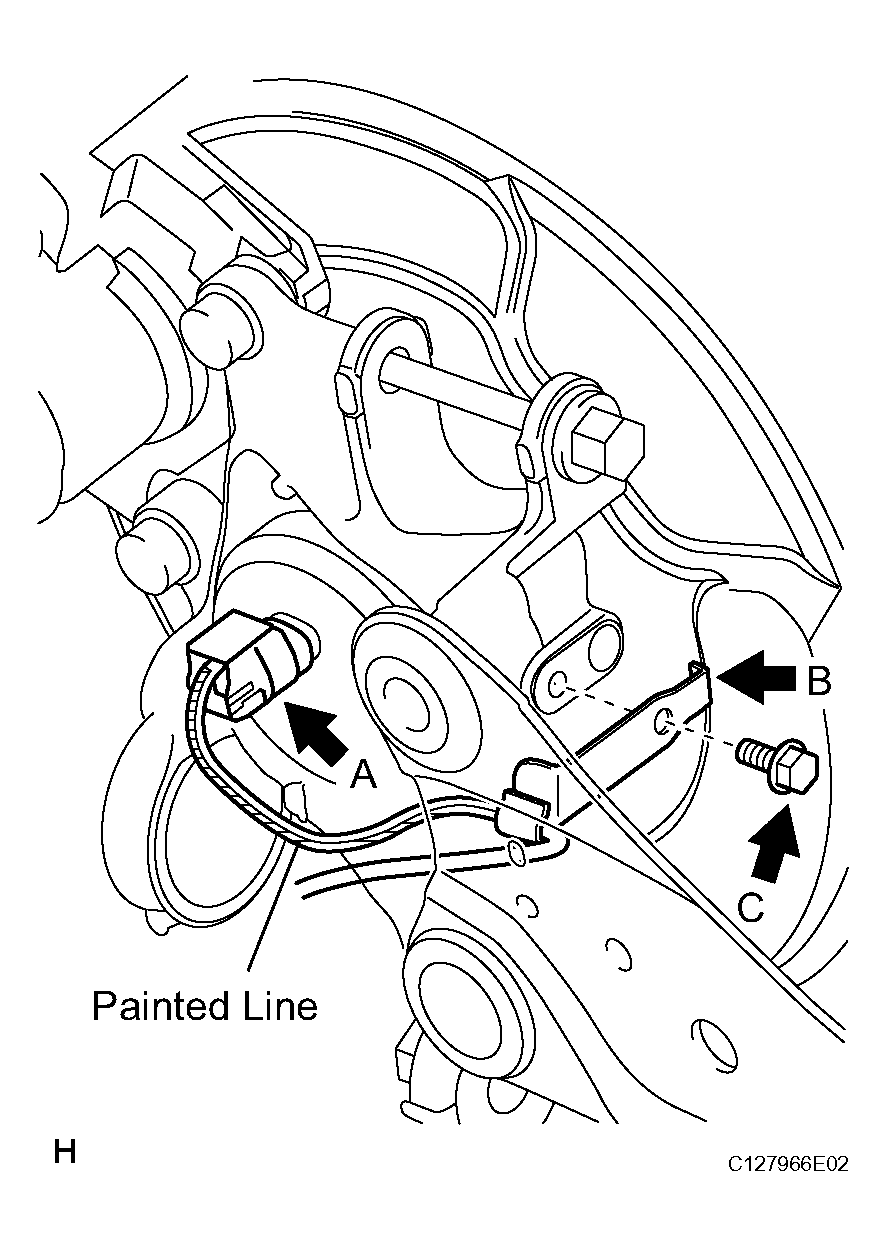

1. Connect the skid control sensor wire connector (labeled A) to the speed sensor.
2. Install the sensor clamp (labeled B) with the bolt (labeled C).
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  NOTE: Do not twist the sensor wire when installing the clamp.

  Fig 3: Installing Skid Control Sensor Wire Connector (Labeled A)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

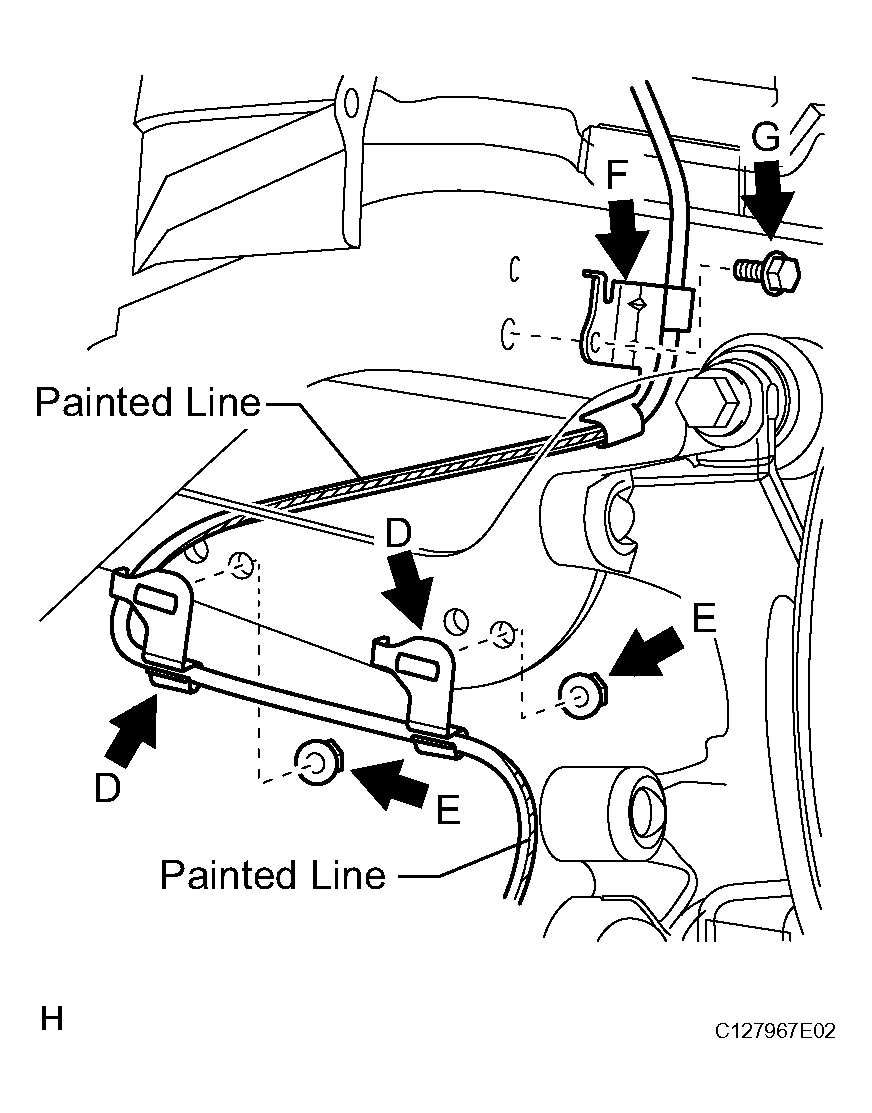

3. Install the 2 sensor clamps (labeled D) with the 2 nuts (labeled E). (See Fig 4).
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  NOTE: Do not twist the sensor wire when installing the clamps.
4. Install the sensor clamp (labeled F) with the bolt (labeled G).
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  NOTE: Do not twist the sensor wire when installing the clamp.

  Fig 4: Installing Sensor Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Insert the connector and grommet to the inside of the vehicle through the hole in the wheel house.
  NOTE: Make sure the grommet's band clamp remains on the outside of the vehicle.

  Fig 5: Inserting Connector And Grommet To Inside Of Vehicle Through Hole In Wheel House
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

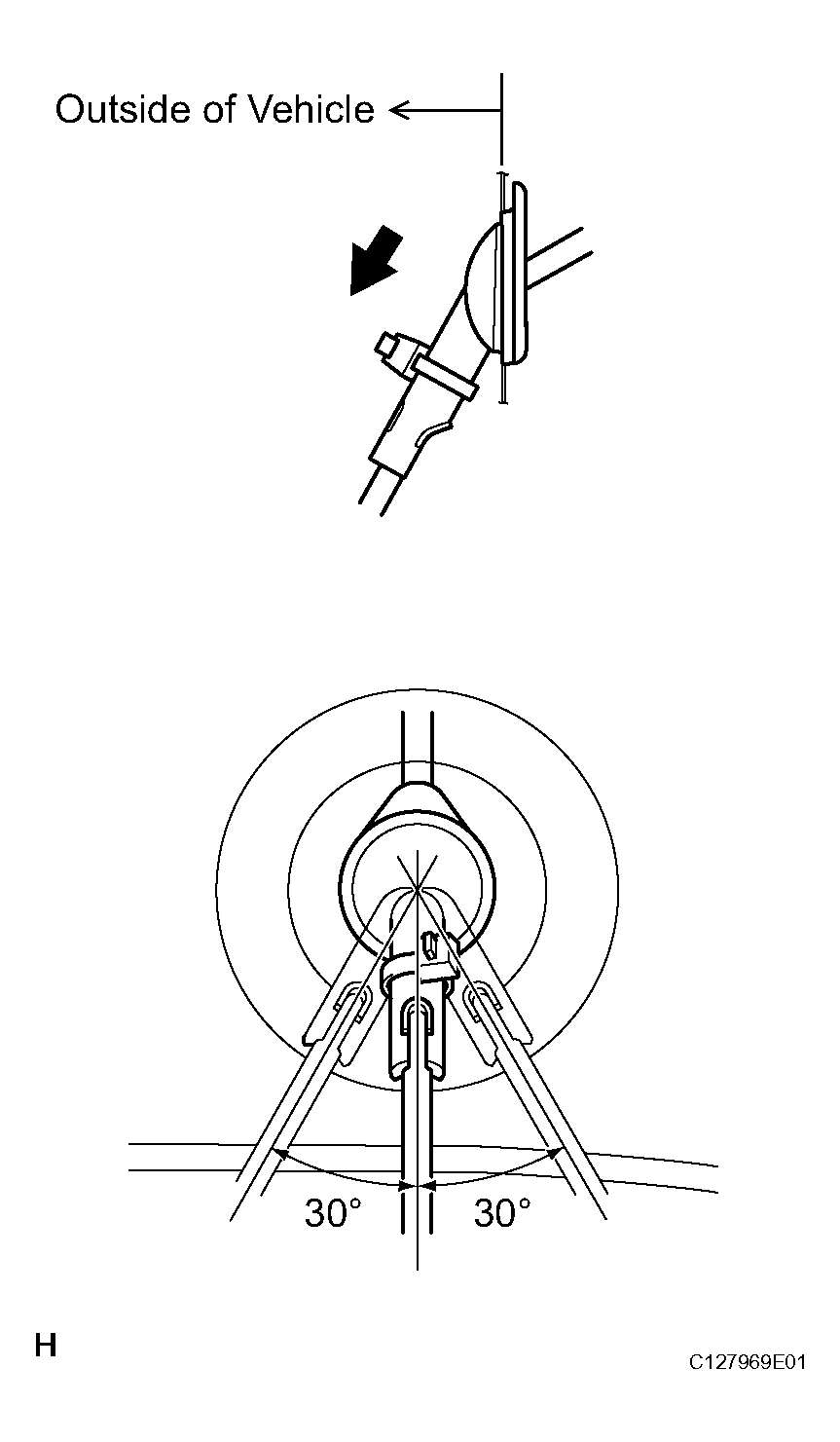

6. Hold the grommet and pull it from the inside of the vehicle to the outside of the vehicle. Then fix it in place so that it is not tilted.
  NOTE:
  - When pulling out the grommet, do not grip the sensor wire.
  - Fix the grommet in place within the range shown in Fig 6.

    Fig 6: Identifying Grommet Installation
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the skid control sensor wire connector.

  Fig 7: Connecting Skid Control Sensor Wire Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
1. Install the deck trim side panel LH (see appropriate step(s) INSTALLATION ).
  HINT:

  Refer to procedures from the installation of the deck trim side panel LH up until the installation of the rear door scuff plate LH.
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SPEED SENSOR SIGNAL
1. Check the speed sensor signal (see TEST MODE PROCEDURE ).
