REAR SPEED SENSOR (for 4WD): Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.

INSTALL REAR SPEED SENSOR LH
NOTE: To prevent interference with other parts, do not twist the sensor wire's painted line areas when installing it.
1. Install the sensor (labeled A) with the bolt (labeled B).
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
  NOTE:
  - Keep the sensor tip and sensor installation hole free from foreign matter.
  - To prevent interference with the bearing rotor, do not rotate the sensor body when inserting the sensor body or after inserting the sensor body.
2. Install the sensor clamp (labeled C) with the nut (labeled D).
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

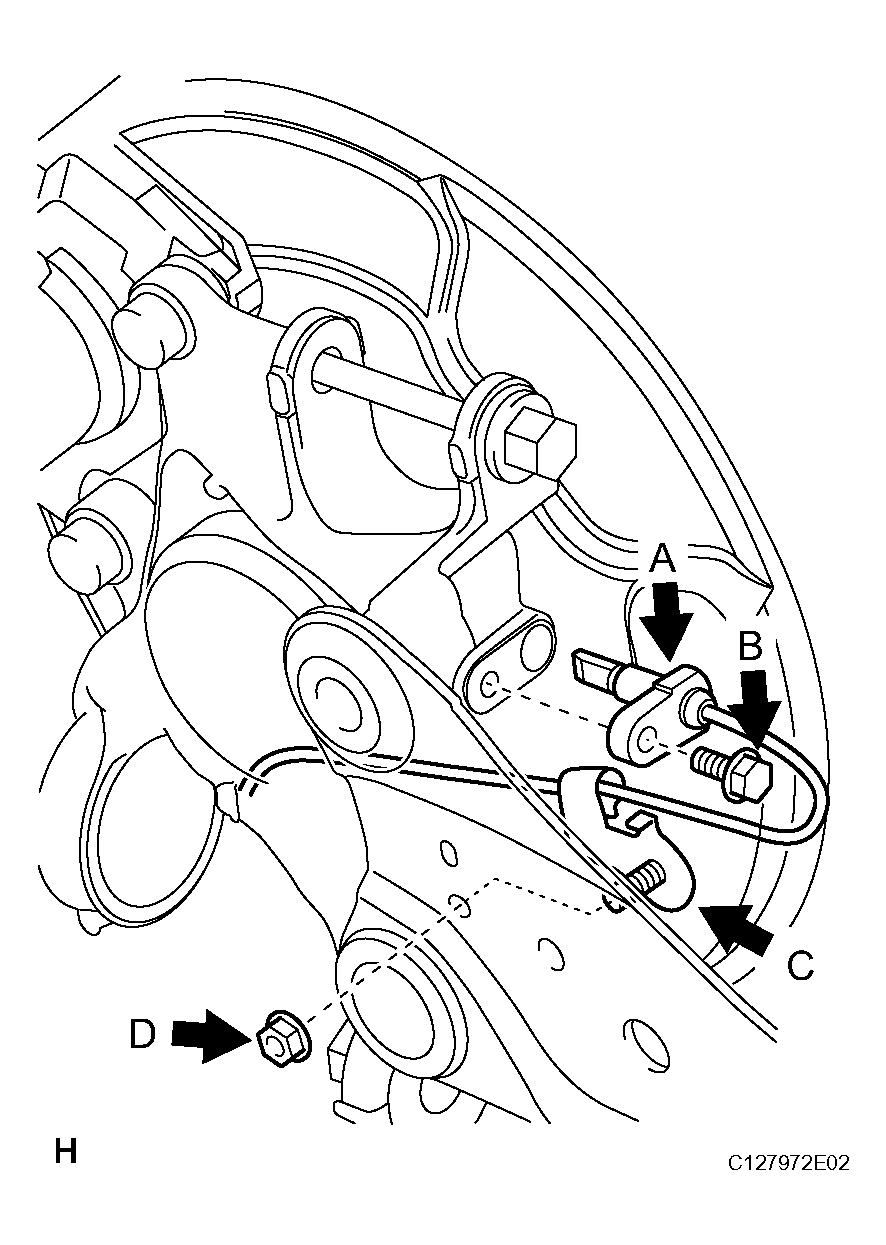

  Fig 1: Installing Sensor Clamp (Labeled C) With Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the sensor clamps (labeled E) with the 2 nuts (labeled F). (See Fig 2).
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  NOTE: Do not twist the sensor wire when installing the clamps.
4. Install the sensor clamp (labeled G) with the bolt (labeled H).
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  NOTE: Do not twist the sensor wire when installing the clamp.

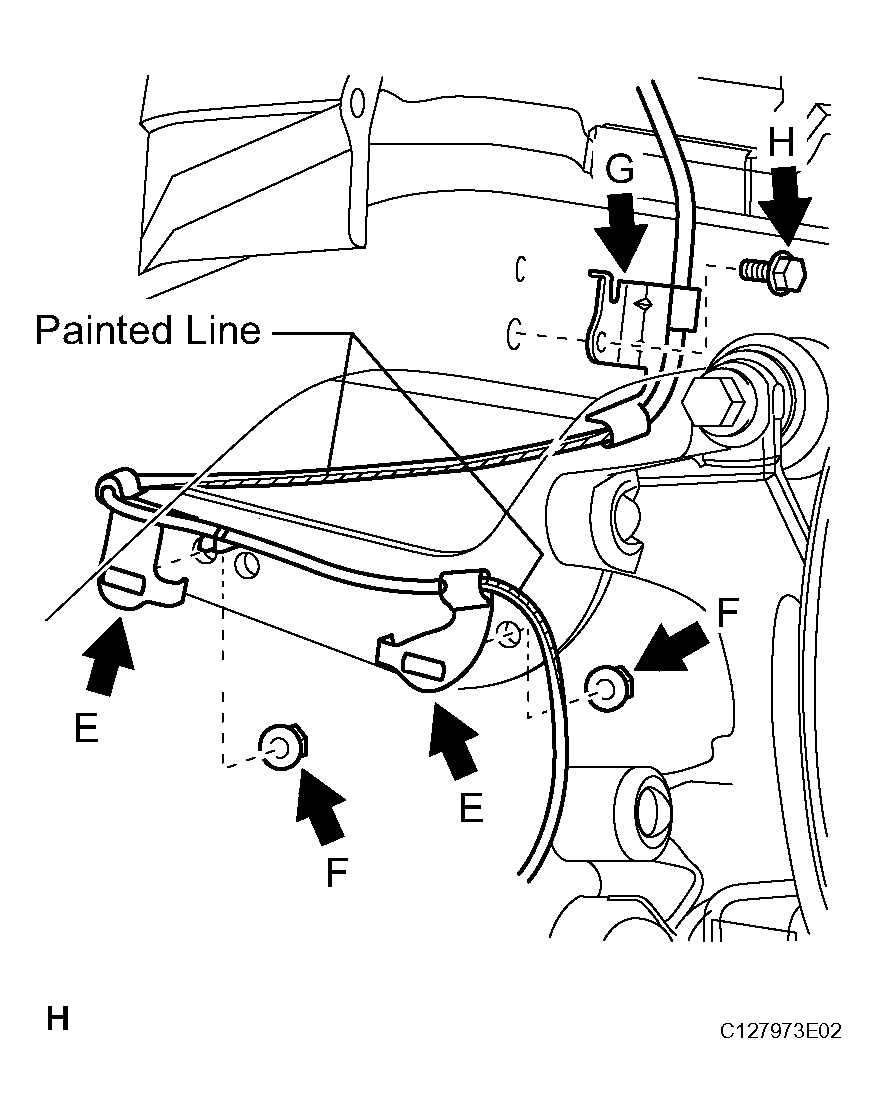

  Fig 2: Installing Sensor Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Insert the connector and grommet to the inside of the vehicle through the passage hole in the wheel house.
  NOTE: Make sure the grommet's band clamp remains on the outside of the vehicle.

  Fig 3: Inserting Connector And Grommet To Inside Of Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Hold the grommet and pull it from the inside of the vehicle to the outside of the vehicle. Then fix it in place so that it is not tilted.
  NOTE:
  - When pulling out the grommet, do not grip the sensor wire.
  - Fix the grommet in place within the range shown in Fig 4.

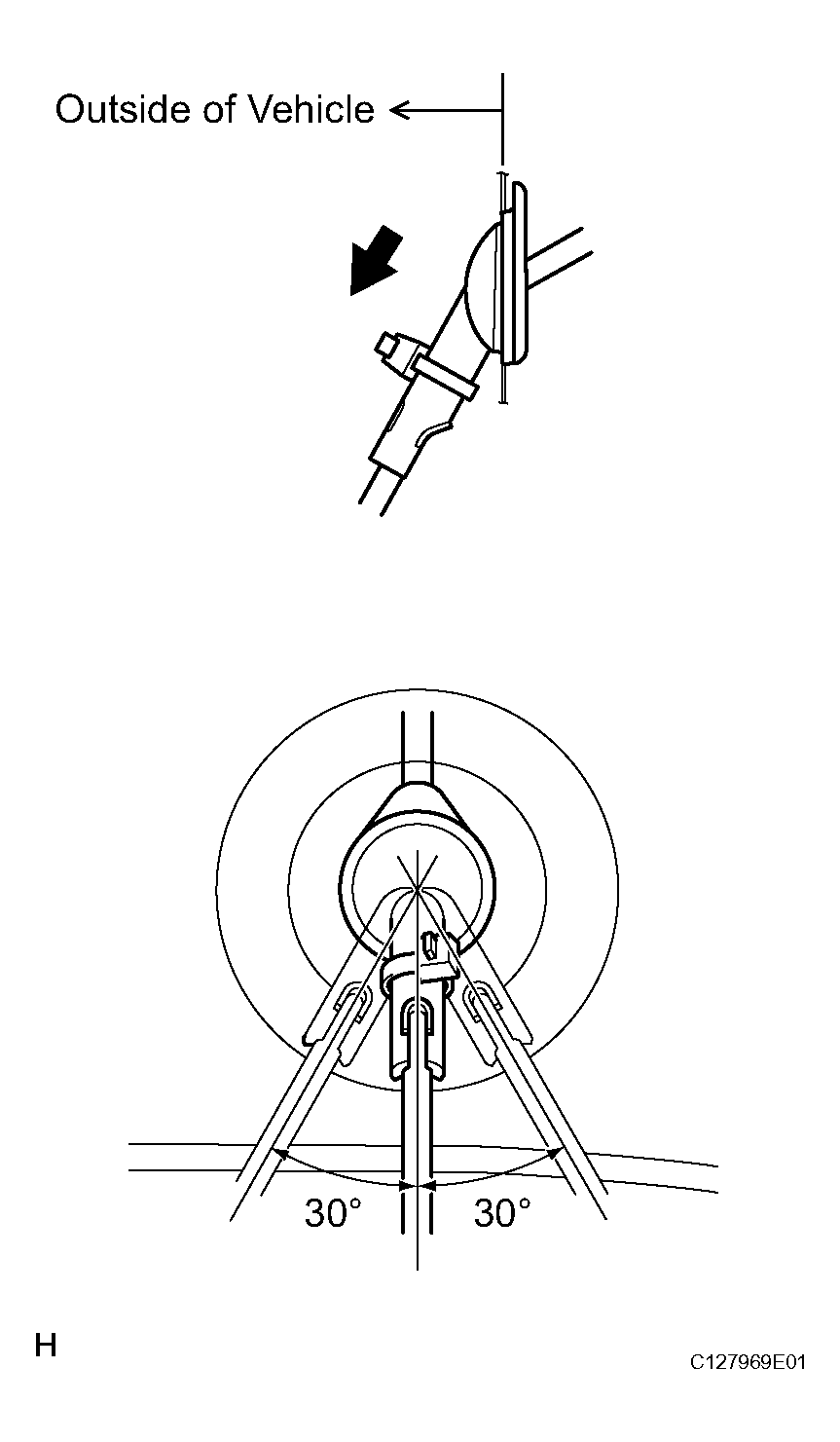

    Fig 4: Identifying Gromment Installation To Outside Of Vehicle
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the speed sensor connector.

  Fig 5: Connecting Speed Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
1. Install the deck trim side panel LH (see appropriate step(s) INSTALLATION ).
  HINT:

  Refer to procedures from the installation of the deck trim side panel LH up until the installation of the rear door scuff plate LH.
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SPEED SENSOR SIGNAL
1. Check the speed sensor signal (see TEST MODE PROCEDURE ).
