Front Bumper: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE RADIATOR GRILLE (See  REMOVAL   )
  3. REMOVE FRONT BUMPER COVER
    1. Using a clip remover, remove the 3 clips.
    2. Remove the 2 screws and 4 bolts.
    3. Disconnect the 2 fog light connectors and remove the bumper cover.

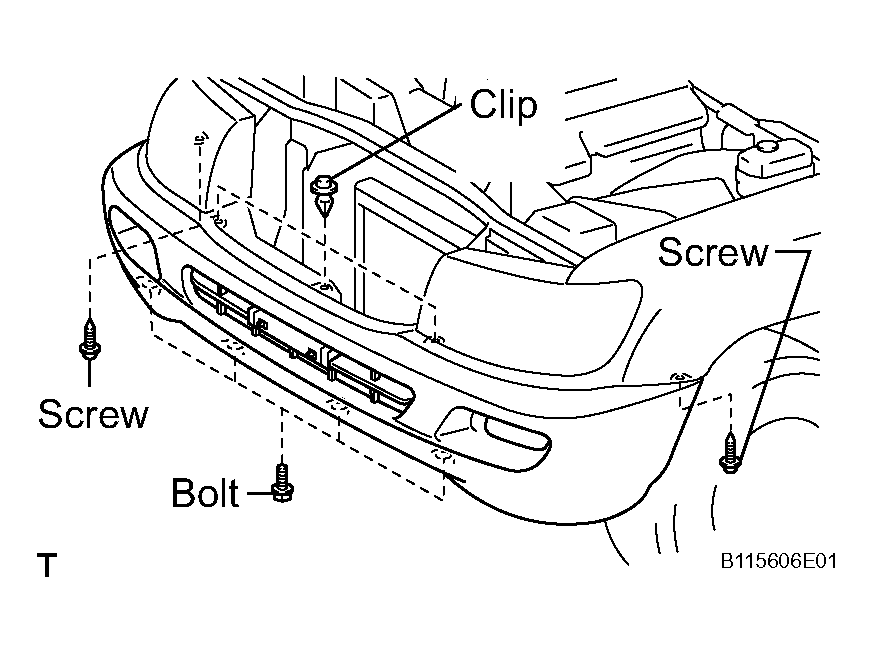

    Fig 1: Identifying Front Bumper Cover Bolts And Screws
    G04439051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE FOG LIGHT ASSEMBLY LH
    1. Remove the nut and fog light.
  5. REMOVE FOG LIGHT ASSEMBLY RH
    1. Remove the nut and fog light.
  6. REMOVE FRONT BUMPER ENERGY ABSORBER
  7. REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
    1. Remove the 8 bolts and reinforcement.

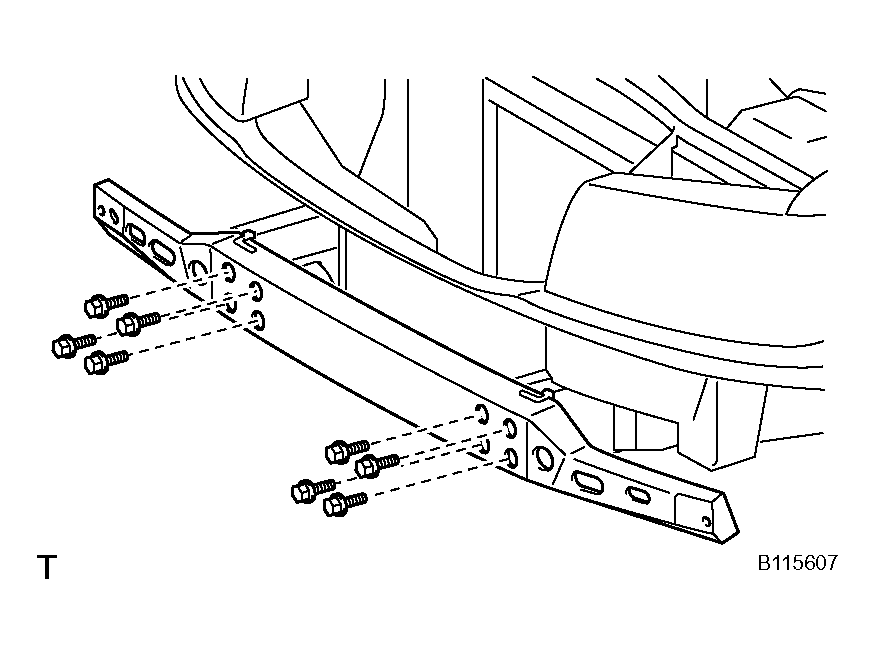

      Fig 2: Identifying Front Bumper Reinforcement Sub-Assembly Bolts
      G04439052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
