Radiator Grille: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE RADIATOR GRILLE EMBLEM
1. Put protective tape around the emblem.
2. Insert a piano wire between the vehicle body and emblem.
3. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
4. Pull the piano wire and scrape off the double-sided tape that holds the emblem to the vehicle body.

  Fig 1: Removing Radiator Grille Emblem
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:
  - If reusing the emblem, take care not to damage the emblem.
  - Be careful not to damage the vehicle body.
5. Remove the emblem.
REMOVE RADIATOR GRILLE

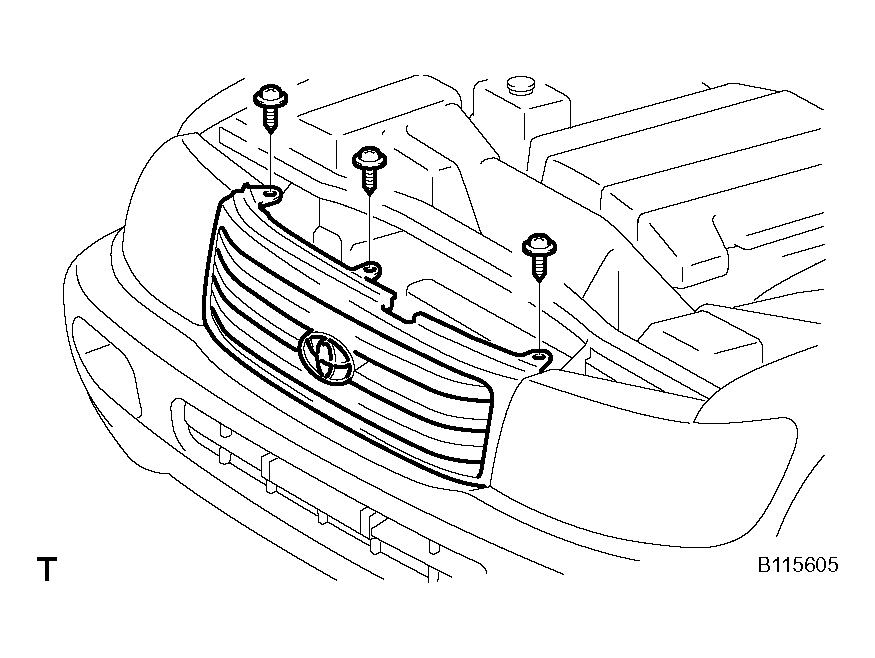

1. Remove the 3 screws and grille.

  Fig 2: Identifying Radiator Grille Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
