Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing (see PRECAUTION ).

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE FRONT SEAT ASSEMBLY
1. Remove the front seat assembly (see REMOVAL ).
REMOVE SEAT POSITION SENSOR
1. Disconnect the connector.
2. Remove the bolt and seat position sensor.

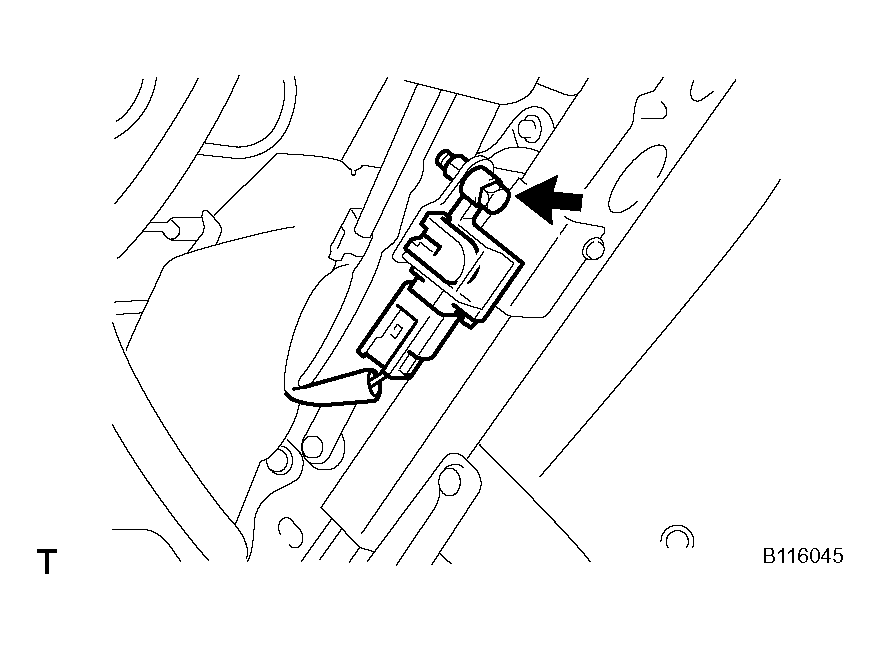

  Fig 1: Identifying Seat Position Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
