Center Airbag Sensor Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing (see PRECAUTION ).

INSTALL CENTER AIRBAG SENSOR ASSEMBLY
1. Install the airbag sensor with the 3 bolts.
  Torque: 17.5 N*m (178 kgf*cm, 13 ft.*lbf)
  NOTE:
  - If the airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
  - When installing the airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.
2. Connect the airbag sensor connectors.

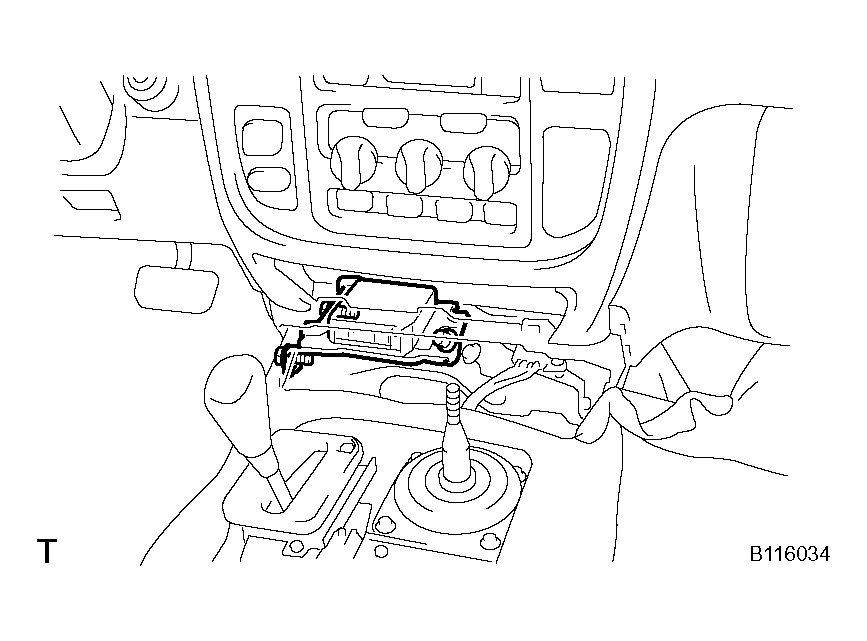

  Fig 1: Identifying Center Airbag Sensor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER (See INSTALLATION )
INSTALL FRONT CONSOLE BOX (See INSTALLATION )
INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER (See INSTALLATION )
INSTALL TRANSFER SHIFT LEVER
INSTALL FRONT SEAT ASSEMBLY LH
1. Install the front seat assembly (see INSTALLATION ).
INSTALL FRONT SEAT ASSEMBLY RH
1. Install the front seat assembly (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
