Blower Unit: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

HINT:

At the time of installation, perform initialization (see INITIALIZATION ).

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
REMOVE FRONT COOLING UNIT
1. Remove front cooling unit (see REMOVAL ).
REMOVE BLOWER UNIT
1. Disconnect the connectors.
2. Remove the bolt, 2 nuts and blower unit.

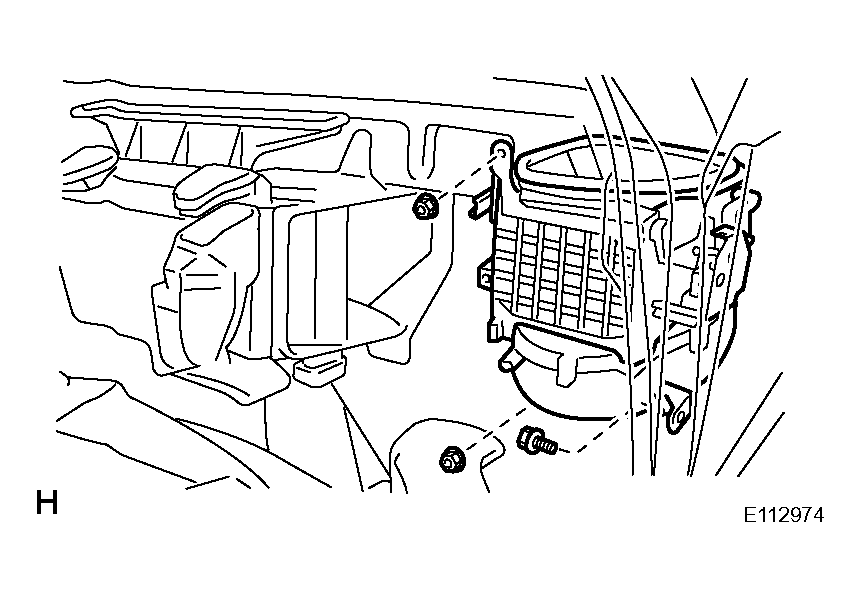

  Fig 1: Removing Blower Unit Bolt & Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
