Water Pump: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE NO. 1 ENGINE UNDER COVER (See  REMOVAL  )
  3. DRAIN ENGINE COOLANT (See  COOLANT   )
  4. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE INTAKE AIR CONNECTOR PIPE (See  REMOVAL  )
  6. REMOVE COOLER COMPRESSOR ASSEMBLY (See  REMOVAL  )
  7. REMOVE DRIVE BELT (See  ON-VEHICLE INSPECTION  )
  8. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator assembly (see REMOVAL  ).
  9. REMOVE OIL COOLER PIPE (See  REMOVAL  )
  10. REMOVE TIMING BELT
    1. Remove the timing belt (see REMOVAL ).
  11. REMOVE NO. 2 TIMING BELT IDLER PULLEY SUBASSEMBLY
    1. Remove the bolt and idler pulley.
  12. REMOVE WATER INLET HOUSING
    1. Disconnect the water by-pass hose from the water inlet housing.
    2. Remove the 2 bolts holding the water inlet housing to the water pump.

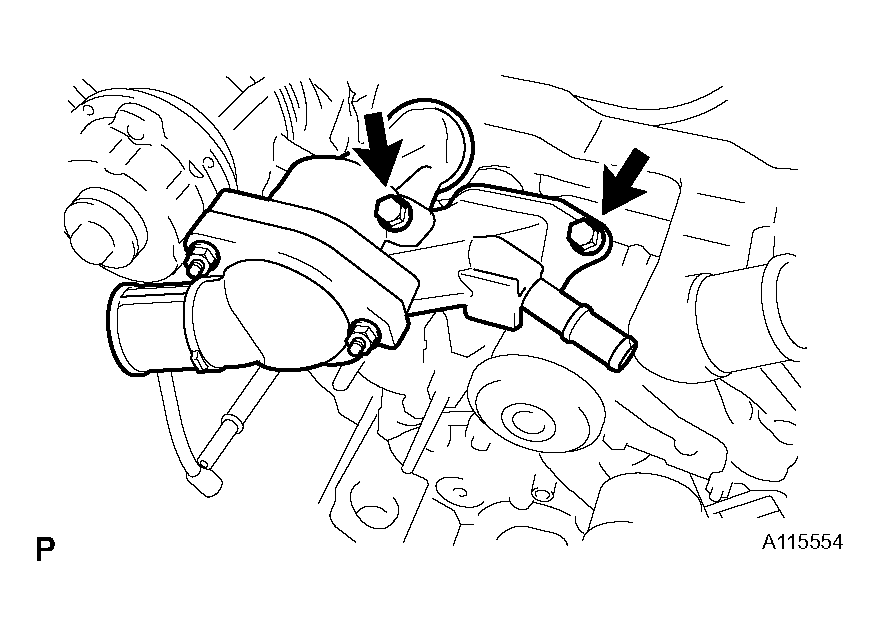

      3. Fig 1: Removing Bolts Holding Water Inlet Housing To Water Pump
      G04436222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the water inlet housing from the front water by-pass joint, and remove the water inlet and inlet housing.
  13. REMOVE WATER PUMP ASSEMBLY
    1. Remove the 5 bolts, 2 stud bolts, nut, water pump and gasket.

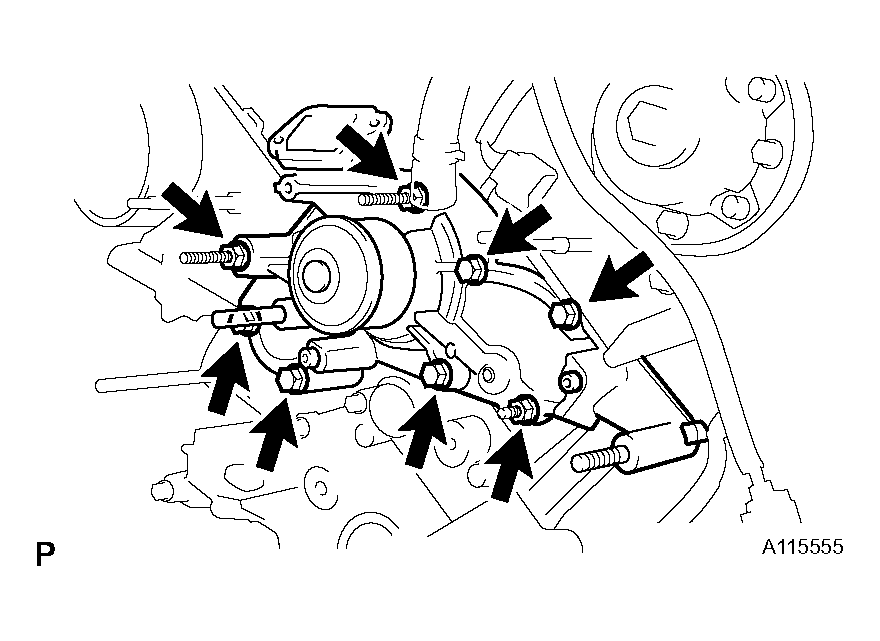

      2. Fig 2: Removing Bolts, Stud Bolts, Nut, Water Pump And Gasket
      G04436223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the water by-pass pipe.
