Engine Oil Cooler: Removal

WARNING: This page is about a different car, the 2007 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE UNDER COVER REAR (See  REMOVAL  )
  2. REMOVE NO. 1 ENGINE UNDER COVER (See  REMOVAL  )
  3. DRAIN ENGINE  COOLANT
  4. DRAIN ENGINE OIL (See  REPLACEMENT   )
  5. REMOVE OIL FILTER SUB-ASSEMBLY (See  REPLACEMENT   )
  6. REMOVE ENGINE OIL COOLER
    1. Disconnect the 2 oil cooler hoses from the oil cooler.
    2. Remove the union bolt, plate washer and oil cooler.
    3. Remove the O-ring from the oil cooler.

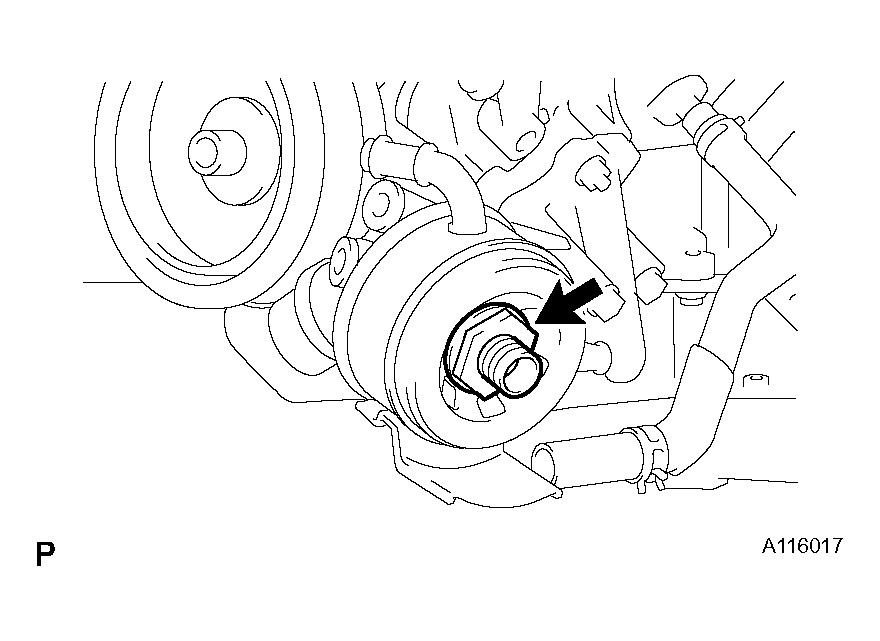

      Fig 1: Removing Engine Oil Cooler
      G04436333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
