Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: It is necessary to register an ID code after replacing the tire pressure monitor valve sub-assembly and/or the tire pressure monitor ECU (see REGISTRATION  ).

HINT:

This procedure must be performed according to the PROBLEM SYMPTOMS TABLE .

  1. INSPECT FUSE
    1. Remove the MET fuse from the cowl side junction block RH.
    2. Measure the resistance of the fuse.

      Standard resistance:

      Below 1 Ω

    NG: REPLACE FUSE

    OK: GO TO NEXT STEP

  2. CHECK WIRE HARNESS AND CONNECTOR (BATTERY - COMBINATION METER)
    1. Disconnect the C12 combination meter connector.
    2. Turn the ignition switch ON.
    3. Measure the voltage of the wire harness side connectors.

      Standard voltage

      VOLTAGE SPECIFIED CONDITIONS

      Tester connection Condition Specified Condition
      C12-10 - Body ground Ignition switch ON 10 to 14 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 1: Identifying C12 Combination Meter Connector
    G04437687Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: GO TO NEXT STEP

  3. CHECK WIRE HARNESS AND CONNECTOR (COMBINATION METER - ECU AND BODY GROUND)
    1. Disconnect the T25 ECU connector.
    2. Disconnect the C13 and C15 meter connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      T25-5 (IND) - C13-13 Below 1 Ω
      T25-5 (IND) - Body ground 10 kΩ or higher
      C15-1 - Body ground Below 1 Ω

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

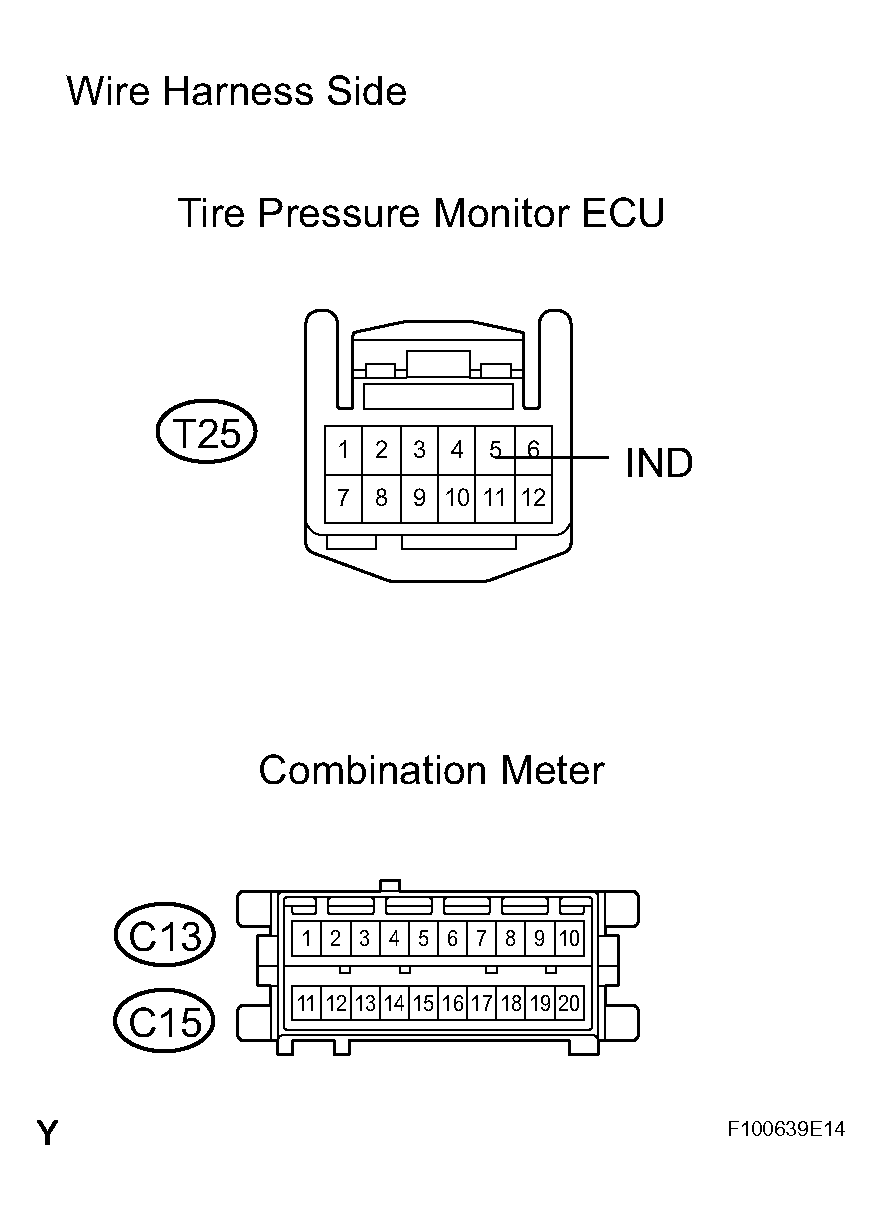

    Fig 2: Identifying Combination Meter & Monitor ECU Connector Terminals
    G04437688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: GO TO NEXT STEP

  4. OPERATION OF ECU WITH NEW OR NORMAL FUNCTIONING ECU
    1. Temporarily replace the ECU with a new or normally functioning one.
    2. Check that the malfunction disappears.

      OK:

      Malfunction disappears

    NG: REPLACE COMBINATION METER ASSEMBLY

    OK: REPLACE TIRE PRESSURE MONITOR ECU
