Inspection Procedure

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: It is necessary to register an ID code after replacing the tire pressure monitor valve sub-assembly and/or the tire pressure monitor ECU (see REGISTRATION  ).

HINT:

When not using the intelligent tester, go to step  1.

  1. READ VALUE OF INTELLIGENT TESTER
    1. Connect the intelligent tester (with CAN VIM) to the DLC3.
    2. Turn the ignition switch ON, and push the intelligent tester main switch ON.
    3. Select the item below in the DATA LIST, and read its value displayed on the intelligent tester.
    4. Check that the values indicated on the tester and the combination meter are the same.

      Tire pressure monitor ECU

      TIRE PRESSURE MONITOR ECU DATA LIST REFERENCE

      Item Measurement item/Range (Display) Normal Condition Diagnostic Note
      VEHICLE SPEED Vehicle speed reading /
      Min.: 0 km/h (0 mph)
      Max.: 255 km/h (158 mph)
      Actual vehicle speed Speed indicated on the combination meter

      OK:

      Indicates actual speed.

    OK: REPLACE TIRE PRESSURE MONITOR ECU

    NG: GO TO NEXT STEP

  2. CHECK WIRE HARNESS (ECU - COMBINATION METER)
    1. Disconnect the C15 combination meter connector.
    2. Disconnect the T25 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

      Standard resistance

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Specified Condition
      T25-3 (SPD) - C15-16 Below 1 Ω
      T25-3 (SPD) - Body ground 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

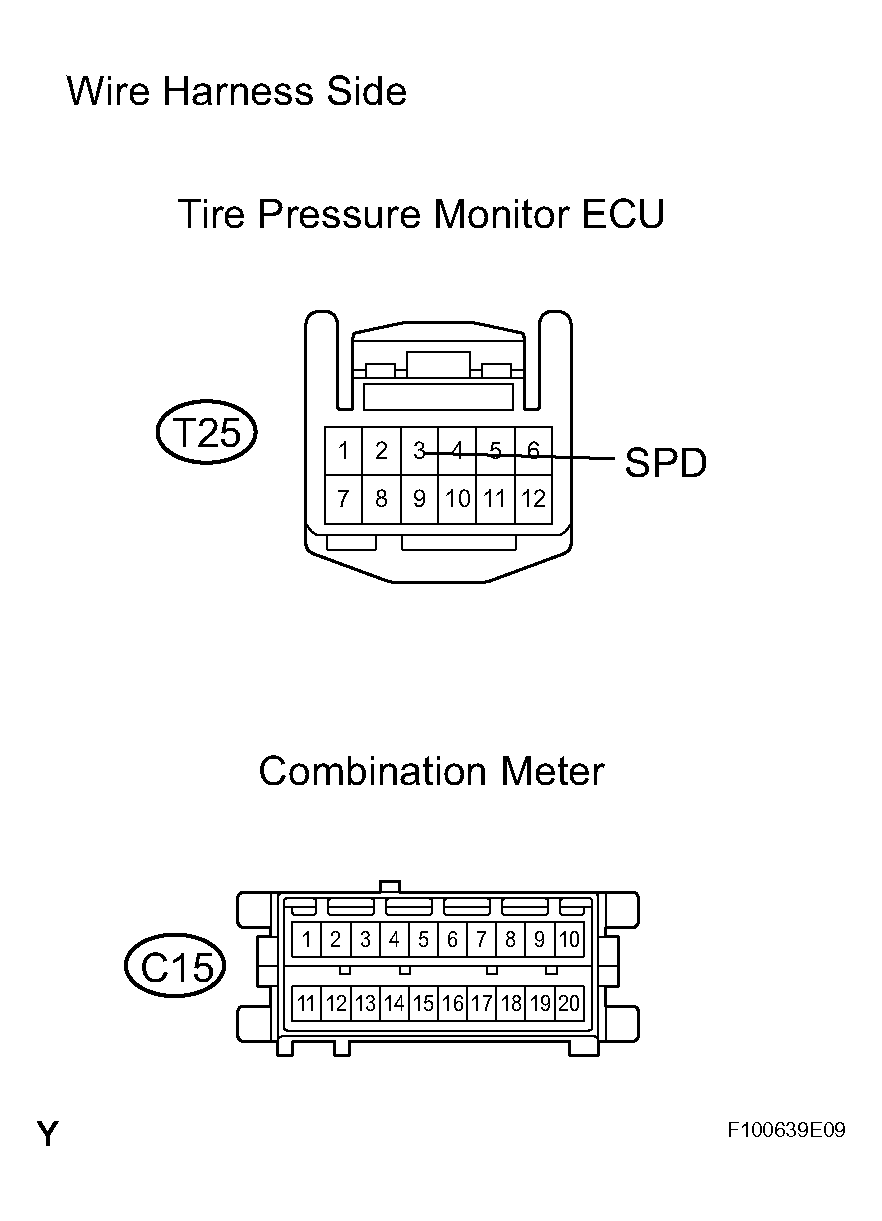

    Fig 1: Identifying Tire Pressure Monitor ECU & Combination Meter Connector Terminals
    G04437675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: GO TO NEXT STEP

  3. INSPECT TIRE PRESSURE MONITOR ECU
    1. Connect the T25 ECU connector.
    2. Connect the C15 combination meter connector.
      Fig 2: Identifying T25 ECU Connector Terminals
      G04437676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the voltage of the ECU as the front wheel is turned.
      Fig 3: ECU Voltage Graph
      G04437677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection condition Specified Condition
      Z34-3 (SPD) - Z34-9 (GND) While driving vehicle Voltage generated intermittently

      HINT:

      As the vehicle speed (wheel revolution speed) increases, a cycle of the waveform narrows.

    NG: REPLACE COMBINATION METER ASSEMBLY

    OK: REPLACE TIRE PRESSURE MONITOR ECU
