Power Steering Ecu: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL POWER STEERING ECU
1. Install the power steering ECU with the 3 nuts.
  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)
2. Connect the 4 connectors.
INSTALL INSTRUMENT PANEL SUB-ASSEMBLY UPPER
1. Install the instrument panel (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

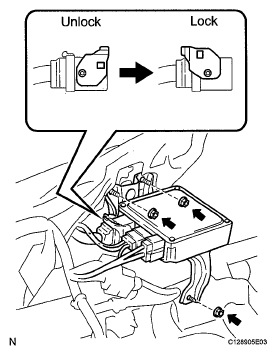

Fig 1: Installing Power Steering ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
