Radio Antenna: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FENDER ANTENNA ASSEMBLY
1. Install the antenna with the bolt.

  Fig 1: Locating Bolt And Antenna
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the 3 clamps and connect the connector.
INSTALL FRONT PILLAR GARNISH RH (See INSTALLATION )
INSTALL FRONT FENDER LINER RH (See INSTALLATION )

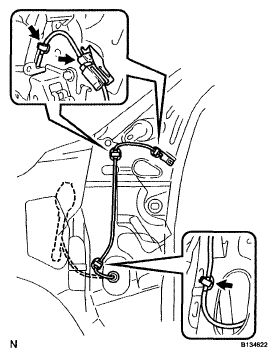

Fig 2: Locating Fender Antenna Assembly Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTENNA ORNAMENT
1. Install the antenna ornament as shown in the illustration.

  Fig 3: Installing Antenna Ornament
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ANTENNA NUT
1. Install the antenna nut as shown in the illustration.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Fig 4: Installing Antenna Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
