Radio Antenna Cord: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  (See REMOVAL )
  3. REMOVE COMBINATION METER ASSEMBLY  (See REMOVAL )
  4. REMOVE NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER  (See REMOVAL )
  5. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER  (See REMOVAL )
  6. REMOVE RADIO RECEIVER ASSEMBLY WITH BRACKET (w/ Radio Receiver)  (See REMOVAL  )
  7. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY CENTER  (See REMOVAL )
  8. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY  (See REMOVAL )
  9. REMOVE FRONT PILLAR GARNISH LH  (See REMOVAL )
  10. REMOVE FRONT PILLAR GARNISH RH  (See REMOVAL )
  11. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY UPPER  (See REMOVAL )
  12. REMOVE ANTENNA CORD SUB-ASSEMBLY
    1. Disconnect the connector.
    2. Detach the 4 clamps and remove the antenna cord.

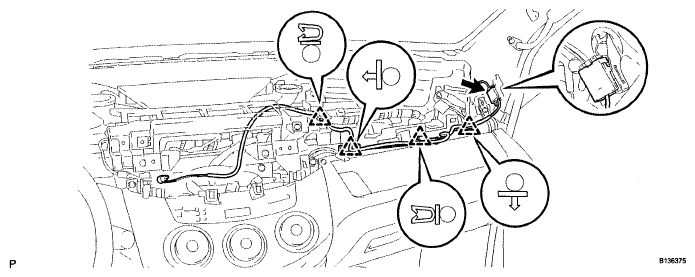

      Fig 1: Identifying Antenna Cord Sub-Assembly Clamps
      G05184863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
