FRONT SEAT OUTER BELT ASSEMBLY (for Hatchback 3 Door) WITH PRETENSIONER: Installation

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing PRECAUTION .

NOTE: Always use "Torx" socket wrench E10 when installing the rear seat.

HINT:

The procedure described below is for the RH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

Fig 1: Locating Hooks And Retractor Bolts

INSTALL FRONT SEAT OUTER BELT ASSEMBLY
1. Check the angle of inclination required to lock the retractor.
  1. Gently incline the retractor from its initial position. Check that the belt does not lock when the retractor is inclined 15° or less in any direction. Also, check that the belt locks when the inclination of the retractor is 45° or more.
    NOTE: Do not disassemble the retractor.

    If the operation is not as specified, replace the front seat outer belt.

    Fig 2: Identifying Inclination Angle For Locking Retractor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Hook the lower stay of the retractor onto the 2 body hooks and provisionally install the retractor with the 2 bolts.
3. Tighten bolt A and then bolt B.
  Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf) for bolt A

  42 N*m (430 kgf*cm, 31 ft.*lbf) for bolt B

  Fig 3: Locating Hooks And Retractor Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the through anchor with the bolt.
  Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)
5. Check that the ELR locks.
  NOTE: Perform the check with the front seat outer belt installed.
  1. With the belt installed, check that the belt locks when it is pulled out quickly.
    If the operation is not as specified, replace the front seat outer belt.

    Fig 4: Identifying Center Pillar Upper Garnish Clips
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the anchor plate with the bolt.
  Torque: 42 N*m (430 kgf*cm, 31 ft.*lbf)

  Fig 5: Locating Anchor Plate Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Install the anchor plate cover.

  Fig 6: Identifying Anchor Plate Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

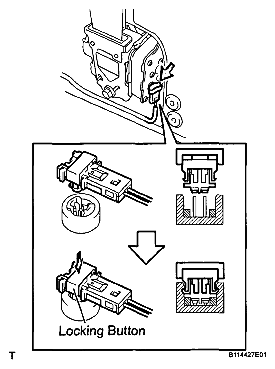

8. Connect the pretensioner connector.
  1. Connect the pretensioner connector.
  2. Lock the locking button.
    NOTE: Securely lock the locking button.

    Fig 7: Connecting Pretensioner Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SEAT BELT ANCHOR COVER CAP
1. Engage the 3 claws and install the seat belt anchor cover cap.

  Fig 8: Identifying Anchor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY
1. Engage the 8 clips, the retainer and the 10 claws and install the front quarter trim panel.

  Fig 9: Identifying Anchor Plate Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT OUTER BELT ASSEMBLY
1. Install the belt.

  Fig 10: Identifying Front Quarter Trim Panel Clips, Claws And Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP
1. Install the front door opening trim weatherstrip.
INSTALL FRONT DOOR SCUFF PLATE (See INSTALLATION )
INSTALL REAR SEAT ASSEMBLY (for 60/40 Split Seat Type)
1. for RH Side:
  1. Install the rear seat assembly INSTALLATION .
2. for LH Side:
  1. Install the rear seat assembly (See INSTALLATION ).

    Fig 11: Identifying Front Door Opening Trim Weatherstrip
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type LH Side) (See INSTALLATION )
INSTALL NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type)
1. for RH Side:
  1. Install the No. 1 rear seat leg cover (See INSTALLATION ).
2. for LH Side:
  1. Install the No. 1 rear seat leg cover (See INSTALLATION ).
INSTALL REAR SEATBACK ASSEMBLY (for Hold Down Seat Type) INSTALLATION
INSTALL REAR SEAT CUSHION COVER PAD SUB-ASSEMBLY (for Hold Down Seat Type) INSTALLATION
INSTALL DECK FLOOR BOX
1. for RH side:
  1. Install the deck floor box (See INSTALLATION ).
2. for LH Side:
  HINT:

  Use the same procedure as for the RH side.
INSTALL DECK BOARD SUB-ASSEMBLY (See INSTALLATION )
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
INSPECT SRS WARNING LIGHT
DIAGNOSIS SYSTEM
