FRONT SEAT ASSEMBLY (for Sedan): Reassembly

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Wear protective gloves. Sharp surfaces on the front seat adjuster frame could cause injuries to your hands.

HINT:

The procedure described below is for the driver side of LHD. Use the same procedure for both the front passenger and driver sides of LHD, unless otherwise specified.

Fig 1: Identifying Occupant Detection ECU
G04834230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. INSTALL SEAT POSITION SENSOR (for Driver Side)
    1. Provisionally install the seat position sensor.
      NOTE:
      • If the seat position sensor has been damaged, or there are any cracks, dents or other defects in the case, bracket or connector, replace the seat position sensor with a new one.
      • When installing the seat position sensor, make sure that the SRS warning does not interfere with other parts and is not pinched between other parts.
    2. Install a 1 mm (0.04 in.) feeler gauge between the seat rail and seat position sensor, as shown in Fig 2 .

      HINT:

      Make sure that the clearance between the seat position sensor and seat rail is within 0.6 to 2 mm (0.023 to 0.079 in.).

    3. Push the top of the seat position sensor toward the seat rail.
    4. While holding the seat position sensor, tighten the bolt using "Torx" socket wrench T30.
      Fig 2: Locating Seat Position Sensor
      G04834231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.0 N*m (80 kgf*cm, 71 in.*lbf)

  2. INSTALL SEAT POSITION SENSOR PROTECTOR (for Driver Side)
    1. Engage the pin and install a new seat position sensor protector.

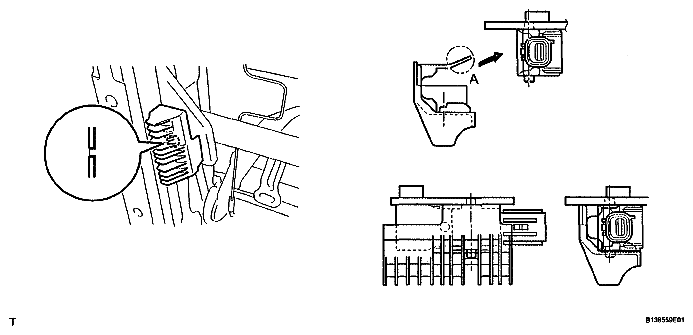

      Fig 3: Locating Seat Position Sensor Protector Pin
      G04834232Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not damage portion A when installing the seat position sensor protector.
  3. INSTALL OCCUPANT DETECTION ECU (for Front Passenger Side)
    1. Engage the claw and install the occupant detection ECU.
      Fig 4: Identifying Occupant Detection ECU
      G04834230Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT SEAT WIRE
    1. Install the front seat wire with the 2 clamps.
    2. Connect the 5 connectors.
      Fig 5: Locating Front Seat Wire Clamps
      G04834229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL FRONT SEAT CUSHION PROTECTOR
    1. Install the 2 front seat cushion protectors.
      Fig 6: Locating Front Seat Cushion Protectors
      G04834226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL FRONT SEAT CUSHION LOWER SHIELD RH
    1. w/ Vertical Adjuster:
      1. Engage the claw and install the front seat cushion lower shield.
      2. Tighten the screw.
        Fig 7: Locating Front Seat Cushion Lower Shield Claw (With Vertical Adjuster)
        G04834222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Vertical Adjuster:
      1. Engage the 2 claws and install the front seat cushion lower shield.
      2. Tighten the screw.
        Fig 8: Locating Front Seat Cushion Lower Shield Claws (Without Vertical Adjuster)
        G04834223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL FRONT SEAT CUSHION LOWER SHIELD LH
    1. w/ Vertical Adjuster:
      1. Engage the 2 claws and install the front seat cushion lower shield.
      2. Tighten the screw.
        Fig 9: Locating Front Seat Cushion Lower Shield Claws (With Vertical Adjuster)
        G04834224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Vertical Adjuster:
      1. Engage the claw and install the front seat cushion lower shield.
      2. Tighten the screw.
        Fig 10: Locating Front Seat Cushion Lower Shield Claw (Without Vertical Adjuster)
        G04834225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL RECLINING ADJUSTER OUTSIDE COVER RH
    1. Install the reclining adjuster outside cover with the screw.
  9. INSTALL RECLINING ADJUSTER OUTSIDE COVER LH

    HINT:

    Use the same procedure as for the RH side.

    Fig 11: Identifying Reclining Adjuster Outside Cover Screw
    G04834221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL RECLINING ADJUSTER INSIDE COVER RH
    1. Engage the claw and install the reclining adjuster inside cover.
    2. Tighten the screw.
      Fig 12: Identifying Reclining Adjuster Inside Cover Claw (1 Of 2)
      G04834219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL RECLINING ADJUSTER INSIDE COVER LH
    1. Engage the claw and install the reclining adjuster inside cover.
    2. Tighten the screw.
    3. w/ Front Seat Side Airbag:
      1. Install the clamp.
        Fig 13: Identifying Reclining Adjuster Inside Cover Claw (2 Of 2)
        G04834220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL VERTICAL ADJUSTER SPACER (w/ Vertical Adjuster)
    1. Engage the claw and install the vertical adjuster spacer.
      Fig 14: Identifying Vertical Adjuster Spacer Claw
      G04834218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL FRONT SEATBACK COVER PAD
    1. Install the front seatback cover pad.
      Fig 15: Identifying Front Seatback Cover Pad
      G04834217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using hog ring pliers, install 2 new hog rings.
      Fig 16: Installing New Hog Rings (1 Of 2)
      G04834245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using hog ring pliers, install 3 new hog rings.
      Fig 17: Installing New Hog Rings (2 Of 2)
      G04834246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL FRONT SEAT HEADREST SUPPORT

    HINT:

    Use the same procedure for both sides.

    1. Align the protruding portion of the front seat headrest support with the installation groove of the front seat adjuster frame.
    2. Engage the 2 claws and install the front seat headrest support.
      Fig 18: Identifying Front Seat Headrest Support Claws
      G04834247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL FRONT SEAT CUSHION COVER PAD
    1. Install the front seat cushion cover pad with the 2 clips.
      Fig 19: Identifying Front Seat Cushion Cover Pad Clips
      G04834213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 claws and the 7 hooks.
      Fig 20: Locating Front Seat Cushion Cover Pad Claws & Hooks
      G04834212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL FRONT SEAT CUSHION OUTER SHIELD
    1. Engage the 2 claws and the clip and install the front seat cushion outer shield.
    2. Tighten the screw.
      Fig 21: Identifying Front Seat Cushion Outer Shield Claws
      G04834250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL RECLINING ADJUSTER RELEASE HANDLE
    1. Engage the claw and install the reclining adjuster release handle.
      Fig 22: Identifying Reclining Adjuster Release Handle Claw
      G04834251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL VERTICAL ADJUSTER KNOB (w/ Vertical Adjuster)
    1. Install the vertical seat adjuster knob.
      Fig 23: Locating Vertical Adjuster Knob Screws
      G04834209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL VERTICAL ADJUSTER COVER (w/ Vertical Adjuster)
    1. Engage the 3 claws and install the vertical adjuster cover.
      Fig 24: Locating Vertical Adjuster Cover Claws
      G04834253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FRONT SEAT CUSHION INNER SHIELD
    1. Engage the claw and the clip and install the front seat cushion inner shield.
    2. Tighten the screw.
  21. INSTALL FRONT SEAT INNER BELT ASSEMBLY (See  INSTALLATION  )
