Fuel Sender Gauge Assembly (For Hatchback): Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Always use "Torx" socket wrench E10 when removing the rear seat.

  1. REMOVE REAR SEAT CUSHION COVER PAD (for Hold Down Seat Type)  (see REMOVAL )
  2. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (for 60/40 Split Seat Type)  (see REMOVAL )
  3. REMOVE DECK BOARD SUB-ASSEMBLY (for 60/40 Split Seat Type)  (see REMOVAL )
  4. REMOVE DECK FLOOR BOX (for 60/40 Split Seat Type)  (see REMOVAL )
  5. REMOVE NO. 1 REAR SEAT LEG COVER (for 60/40 Split Seat Type)  (see REMOVAL )
  6. REMOVE NO. 2 REAR SEAT LEG COVER (for 60/40 Split Seat Type)  (see REMOVAL )
  7. REMOVE REAR SEAT ASSEMBLY (for 60/40 Split Seat Type)  (see REMOVAL )
  8. REMOVE REAR FLOOR SERVICE HOLE COVER  (see REMOVAL )
  9. DISCHARGE FUEL SYSTEM PRESSURE  (see REMOVAL )
  10. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  11. DISCONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY  (see REMOVAL )
  12. DISCONNECT FUEL TANK VENT HOSE SUB-ASSEMBLY  (see REMOVAL )
  13. REMOVE FUEL PUMP GAUGE RETAINER  (see REMOVAL )
  14. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY  (see REMOVAL )
  15. REMOVE FUEL SENDER GAUGE ASSEMBLY
    1. Disconnect the fuel sender gauge connector.

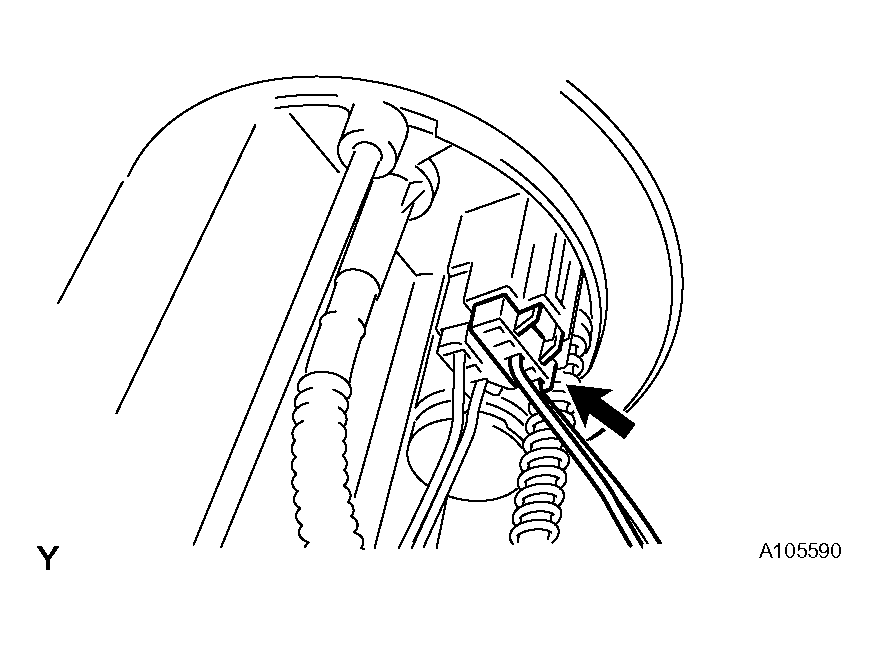

      Fig 1: Locating Fuel Sender Gauge Connector
      G04504577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Unlock the fuel sender gauge, and slide and remove it.
      Fig 2: Identifying Fuel Sender Gauge
      G04504574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
