Parking Brake Cable: Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan) (See REMOVAL )
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
REMOVE SHIFTING HOLE COVER SUB-ASSEMBLY (for Hatchback Manual Transaxle) (See REMOVAL )
REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) (See REMOVAL )
REMOVE REAR CONSOLE BOX COVER (for Hatchback) (See REMOVAL )
REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) (See REMOVAL )
REMOVE CONSOLE BOX CARPET (See REMOVAL )
REMOVE REAR CONSOLE BOX ASSEMBLY (See REMOVAL )
REMOVE REAR WHEEL
REMOVE REAR BRAKE DRUM SUB-ASSEMBLY (See REMOVAL )
REMOVE REAR BRAKE SHOE KIT (See DISASSEMBLY )
REMOVE FRONT NO. 4 FLOOR HEAT INSULATOR
1. Remove the 2 nuts and remove the heat insulator.
LOOSEN NO. 1 WIRE ADJUSTING NUT (See INSTALLATION )
REMOVE PARKING BRAKE CABLE
1. Disconnect the cable end from the equalizer.
2. Remove cable clamp A from the body.
3. Remove the 4 bolts.

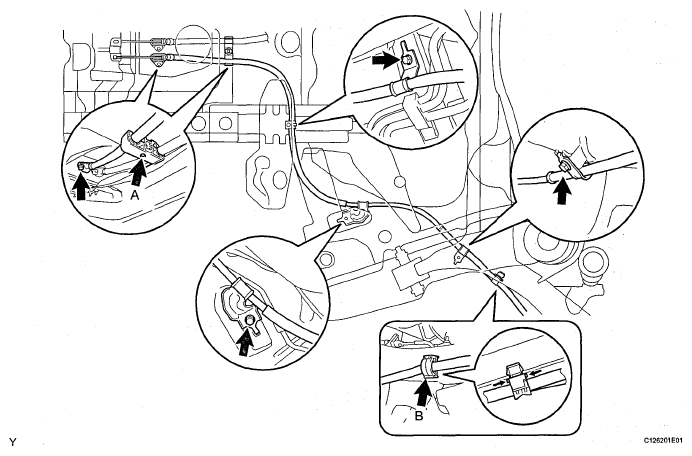

  Fig 1: Locating Heat Insulator Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using pliers, pinch both ends of the claw of cable clamp B and flex the clamp to remove it.

  Fig 2: Locating Cable Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the bolt and remove the parking brake cable from the backing plate.
6. Remove the cable clamp B from the parking brake cable.
  HINT:

  Replace the cable clamp B with a new one when installing the parking brake cable.

  Fig 3: Locating Parking Brake Cable Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
