Parking Brake Lever: Removal

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan)
1. Disengage the 2 claws and 2 clips and remove the instrument panel finish panel.
REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)

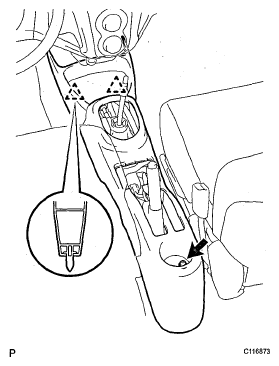

Fig 1: Identifying Instrument Panel Finish Panel Claws & Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFTING HOLE COVER SUB-ASSEMBLY (for Hatchback Manual Transaxle)
1. Disengage the 6 claws and remove the shifting hole cover.

  Fig 2: Identifying Shifting Hole Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan)
1. Shift the shift lever into the N position.
2. Disengage the 5 clips and the claw and remove the upper console panel.

  Fig 3: Identifying Upper Console Panel Clips & Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR CONSOLE BOX COVER (for Hatchback)
1. Disengage the 8 claws and remove the rear console box cover.

  Fig 4: Identifying Rear Console Box Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan)
1. Disengage the 3 clips and 3 claws.
2. Disconnect the connector and remove the rear upper console panel.

  Fig 5: Identifying Rear Upper Console Panel Clips & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONSOLE BOX CARPET
1. for Hatchback:
  1. Remove the console box carpet.

    Fig 6: Identifying Console Box Carpet (For Hatchback)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Sedan:
  1. Remove the console box carpet.

    Fig 7: Identifying Console Box Carpet (For Sedan)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR CONSOLE BOX ASSEMBLY
1. for Hatchback:
  1. Remove the bolt.
  2. Disengage the 2 clips to remove the rear console box.

    Fig 8: Identifying Rear Console Box Clips
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. for Sedan:
  1. Disconnect the clamp.
  2. Remove the 2 bolts and 2 screws.
  3. Disengage the 4 claws and remove the rear console box.

    Fig 9: Locating Rear Console Box Bolts & Screws
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
LOOSEN NO. 1 WIRE ADJUSTING NUT
1. Loosen the lock nut and the adjusting nut.
DISCONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY
1. Disconnect the parking brake cable from the parking brake equalizer.
DISCONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY
1. Disconnect the parking brake cable from the parking brake equalizer.

  Fig 10: Locating Lock Nut & Adjusting Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE LEVER
1. Disconnect the parking brake switch connector.
2. Remove the 3 bolts and remove the parking brake lever.

  Fig 11: Locating Parking Brake Lever Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the lock nut and adjusting nut to remove the parking brake pull rod and parking brake equalizer.

  Fig 12: Locating Parking Brake Pull Rod Lock Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE SWITCH
1. Remove the screw and remove the parking brake switch.

  Fig 13: Locating Parking Brake Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
