NAME PLATE (for Sedan): Installation

1. Clean the attachment surface.
   1. Using an infrared light, heat the double-sided adhesive tape remaining on the luggage compartment door panel.

      HINT:

      Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

   2. Using a shop rag or piece of cloth, rub the remaining double-sided adhesive tape off the back door panel while it is hot from the infrared light.
      NOTE: Installing the symbol while any double-sided adhesive tape remains on the luggage compartment door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.
   3. Using a non-residue solvent, clean the attachment surface.
2. Align the 2 pins and install a new symbol emblem.
   NOTE: Install the symbol emblem in an environment where the ambient temperature is over 20°C (68 F). If it is below 20 C (68 F), using an infrared light, heat the luggage compartment door panel and the symbol emblem up to 20 to 30°C (68 to 86°F) and install the symbol emblem.
   Fig 1: Identifying Peeling Paper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Clean the attachment surface.
   1. Using an infrared light, heat the double-sided adhesive tape remaining on the luggage compartment door panel.

      HINT:

      Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

   2. Using a shop rag or piece of cloth, rub the remaining double-sided adhesive tape off the luggage compartment door panel while it is hot from the infrared light.
      NOTE: Installing the No. 2 luggage compartment door name plate while any double-sided adhesive tape remains on the luggage compartment door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.
   3. Using a non-residue solvent, clean the attachment surface.
2. Install a new No. 2 luggage compartment door name plate as shown in the illustration.
   Fig 2: Identifying Peeling Paper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Installation position

   MARK MEASUREMENT CHART



   Mark	Measurement (along surface)
   a	39.4 mm (1.551 in.)
   b	44.7 mm (1.760 In.)
   c	162.4 mm (6.394 In.)
   d	17.8 mm (0.701 In.)

   NOTE: Install the No. 2 luggage compartment door name plate in an environment where the ambient temperature is over 20°C (68°F). If it is below 20 C (68 F), using an infrared light, heat the luggage compartment door panel and the No. 2 luggage compartment door name plate up to 20 to 30°C (68 to 86 F) and install the No. 2 luggage compartment door name plate.

1. Clean the attachment surface.
   1. Using an infrared light, heat the double-sided adhesive tape remaining on the luggage compartment door panel.

      HINT:

      Heat at 40 to 60°C (104 to 140°F) for 1 to 2 minutes.

   2. Using a shop rag or piece of cloth, rub the remaining double-sided adhesive tape off the luggage compartment door panel while it is hot from the infrared light.
      NOTE: Installing the No. 6 luggage compartment door name plate while any double-sided adhesive tape remains on the luggage compartment door panel may cause adhesion failure. Therefore, completely remove the double-sided adhesive tape.
   3. Using a non-residue solvent, clean the attachment surface.
2. Install a new No. 6 luggage compartment door name plate as shown in the illustration.
   Fig 3: Identifying Peeling Paper

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Installation position

   MARK MEASUREMENT CHART



   Mark	Measurement (along surface)
   a	52.8 mm (2.079 In.)
   b	17.1 mm (0.673 In.)
   c	162.3 mm (0.390 in.)
   d	20 mm (0.787 In.)

   NOTE: Install the No. 6 luggage compartment door name plate in an environment where the ambient temperature is over 20°C (68°F). If it is below 20°C (68°F), using an infrared light, heat the luggage compartment door panel and the No. 6 luggage compartment door name plate up to 20 to 30 C (68 to 86 F) and install the No. 6 luggage compartment door name plate.

1. Engage the 4 claws and install the radiator grille emblem.
   Fig 4: Identifying Claws And Radiator Grille Emblem

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/ Fog Light:
   1. Connect the 2 fog light connectors.
   2. Engage the 6 claws and install the front bumper cover.

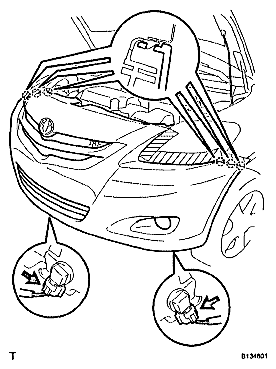

      Fig 5: Locating Fog Light Connectors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Fog Light:
   1. Engage the 6 claws and install the front bumper cover.
      Fig 6: Identifying Claws Location

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. w/ Front Spoiler:
   1. Install the 6 clips.
   2. Install the 2 screw grommets.
   3. Tighten the 5 screws and the 3 bolts.

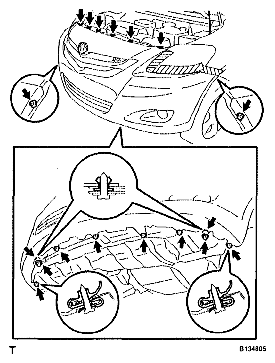

      Fig 7: Locating Screw Grommets And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. w/o Front Spoiler:
   1. Install the 6 clips.
   2. Install the 2 screw grommets.
   3. Tighten the 7 screw and the 3 bolts.
      Fig 8: Locating Screw Grommets And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the protective tape.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Fig 9: Applying Protective Tape

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
