REAR DOOR (for Sedan): Reassembly

1. Apply MP grease to the sliding areas of the rear door outside handle frame.
2. Slide the outside handle frame to install it.
   Fig 1: Sliding Outside Handle Frame

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the rear door outside handle pad front.
   Fig 2: Identifying Claws Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using "Torx" socket wrench T30, tighten the screw.

   Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

   Fig 3: Locating "Torx" Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 2 claws and install the rear door outside handle pad rear.
   Fig 4: Identifying Claws Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Pushing the rear door outside handle in the direction of the arrow mark, install the rear door outside handle.
   Fig 5: Pushing Rear Door Outside Handle

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using "Torx" socket wrench T30, install the rear door outside handle cover with the screw.

   Torque: 4.0 N*m (41 kgf*cm, 35 in.*lbf)

1. Apply MP grease to the sliding and rotating areas of the front door lock.
2. Connect the rear door lock remote control cable and rear door inside locking cable.
   Fig 7: Locating Rear Door Lock Remote Control Cable & Rear Door Inside Locking Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Close the 2 covers.
4. Insert the door lock into the outside handle frame release plate, then set it onto the door panel.
5. Make sure that the outside handle frame link is securely engaged with the door lock.
6. Apply adhesive to the threads of the screws.

   Adhesive:

   Toyota Genuine Adhesive 1324, Three Bond 1324 or the equivalent.

   Fig 8: Locating Covers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Using "Torx" socket wrench T30, install the rear door lock with the 3 screws.

   Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

   Fig 9: Locating "Torx" Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply MP grease to the sliding and rotating areas of the regulator motor.
2. Using "Torx" socket wrench T25, install the power window regulator motor with the 3 screws.

   Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

1. w/ Power window:
   1. Apply MP grease to the sliding and rotating areas of the rear door window regulator.
      NOTE: Do not apply grease to the window regulator spring.
      Fig 10: Locating "Torx" Screw

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Loosely screw bolt A onto the rear door window regulator.
   3. Insert the rear door window regulator into the door panel. Use bolt A to hang the rear door window regulator on the door panel.
      NOTE: Do not drop the window regulator as it may be damaged.
   4. Install the rear door window regulator with the 4 bolts, and tighten bolt A.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

   5. Connect the connector.
      Fig 11: Identifying Rear Door Window Regulator Bolts (With Power Window)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Power window:
   1. Apply MP grease to the sliding and rotating areas of the rear door window regulator.
      NOTE: Do not apply grease to the window regulator spring.
   2. Install the rear door window regulator with the 3 bolts.

      Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

      Fig 12: Identifying Rear Door Window Regulator Bolts (Without Power Window)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/ Power window:
   1. Install the rear door glass onto the rear door window regulator.
      Fig 13: Identifying Rear Door Window Regulator (With Power Window)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. w/o Power window:
   1. Install the rear door glass onto the rear door window regulator.
      Fig 14: Identifying Rear Door Window Regulator (Without Power Window)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear door quarter window glass onto the rear door quarter window weatherstrip.
   Fig 15: Locating Rear Door Quarter Window Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Slide the rear door quarter window weatherstrip, in the direction indicated by the arrow, to install it.
   Fig 16: Sliding Rear Door Quarter Window Weatherstrip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear door window division bar with the 2 bolts and screw.

   Torque: 6.2 N*m (63 kgf*cm, 54 in.*lbf)

   Fig 17: Locating Bolts, Screw & Rear Door Window Division Bar

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the rear door glass run.

1. Engage the 32 clips and install the rear door weatherstrip.

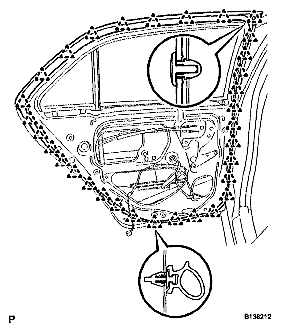

   Fig 19: Identifying Clips Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply MP grease to the sliding areas of the door check.
2. Install the rear door check onto the door panel with the 2 bolts.

   Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

3. Apply adhesive to the threads of the bolt.

   Adhesive:

   Toyota Genuine Adhesive 1324, Three Bond 1324 or the equivalent.

4. Install the rear door check onto the body panel with the bolt.

   Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

   Fig 20: Locating Rear Door Check Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply butyl tape to the door panel, then install the rear door service hole cover as shown in Fig 21 .

   Adhesive:

   Part No. 08850-00065, Butyl Tape Set or the equivalent

   Specification

   AREA DIMENSION TABLE



   Area	Dimension
   A	2.0 mm (0.079 in,) or more
   B	6.0 mm (0.236 in.) or more

   HINT:

   • When installing the service hole cover, pull the links and connectors out through the service hole.
   • There should be no wrinkles or folds after attaching the service hole cover.
     Fig 21: Applying Butyl Tape To Door Panel

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   • After attaching the service hole cover, check the quality of the seal.

1. Install the rear door trim bracket with the 2 screws.
   Fig 22: Locating Rear Door Trim Bracket Screws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the set plate and install the power window regulator switch.

1. Install the rear door glass weatherstrip inner onto the rear door trim board.
   Fig 23: Identifying Power Window Regulator Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 4 claws and install the rear door inside handle.
   Fig 24: Identifying Claws Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the rear door lock remote control cable and rear door inside locking cable.
2. w/ Power window:

   Connect the connector.

   Fig 25: Locating Rear Door Lock Remote Control Cable & Rear Door Inside Locking Cable

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 7 clips and install the rear door trim board.
   Fig 26: Identifying Clips Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Tighten the screw.
   Fig 27: Locating Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the 4 claws and install the rear door armrest base upper panel.
   Fig 28: Identifying Claws Location

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the window regulator handle plate.
2. Open all the windows.
   Fig 29: Locating Window Regulator Handle Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the rear door window regulator handle with the clip at the angle.

Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

Fig 30: Identifying Front Door Window Regulator Handle Angle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
