LUGGAGE COMPARTMENT DOOR (for Sedan): Adjustment

WARNING: This page is about a different car, the 2008 Toyota Yaris. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Centering bolts are used to mount the door hinge onto the vehicle body and door. The door cannot be adjusted with the centering bolts on. Substitute standard bolts (with washers) for the centering bolts when making adjustments.
For bolts without torque specifications, check the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

Fig 1: Identifying Centering Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT LUGGAGE COMPARTMENT DOOR

Check that the clearance measurements are within the standard ranges.

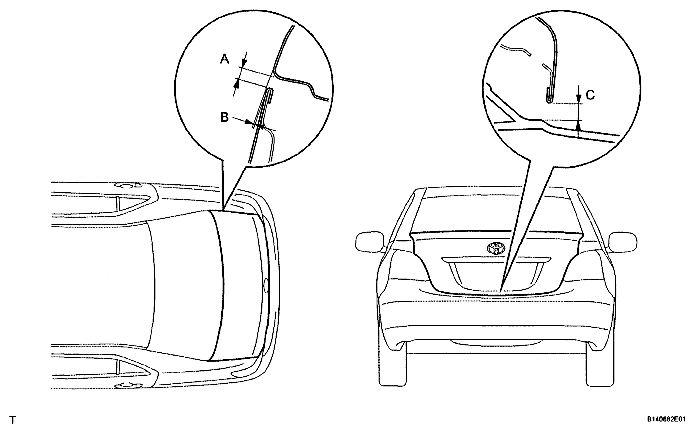

Fig 2: Identifying Luggage Compartment Door Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard

AREA MEASUREMENT TABLE

Area	Measurement
A	2.6 to 5.6 mm (0.102 to 0.220 in.)
B	-0.6 to 1.4 mm (-0.023 to 0.055 in.)
C	6.45 mm (0.254 in.)
-	-

REMOVE REAR FLOOR FINISH PLATE (See DISASSEMBLY )
ADJUST LUGGAGE COMPARTMENT DOOR
1. Adjust the door position.
  1. Horizontally and vertically adjust the door by loosening the door side hinge bolts.
    Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

    Fig 3: Adjusting Door Side Hinge
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the striker position.
  1. Adjust the striker position by slightly loosening the striker mounting bolts and hitting the striker with a plastic hammer.
  2. Tighten the striker mounting bolts after the adjustment.
    Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
INSTALL REAR FLOOR FINISH PLATE (See INSTALLATION )

Fig 4: Adjusting Striker
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
