RADIATOR GRILLE (for 2GR-FE): Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HOOD TO RADIATOR GRILLE SEAL (See REMOVAL ).
REMOVE RADIATOR GRILLE SUB-ASSEMBLY
1. Remove the 4 bolts and 4 nuts.

  Fig 1: Identifying Radiator Grille Sub-Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Detach the 6 claws and remove the radiator grille.

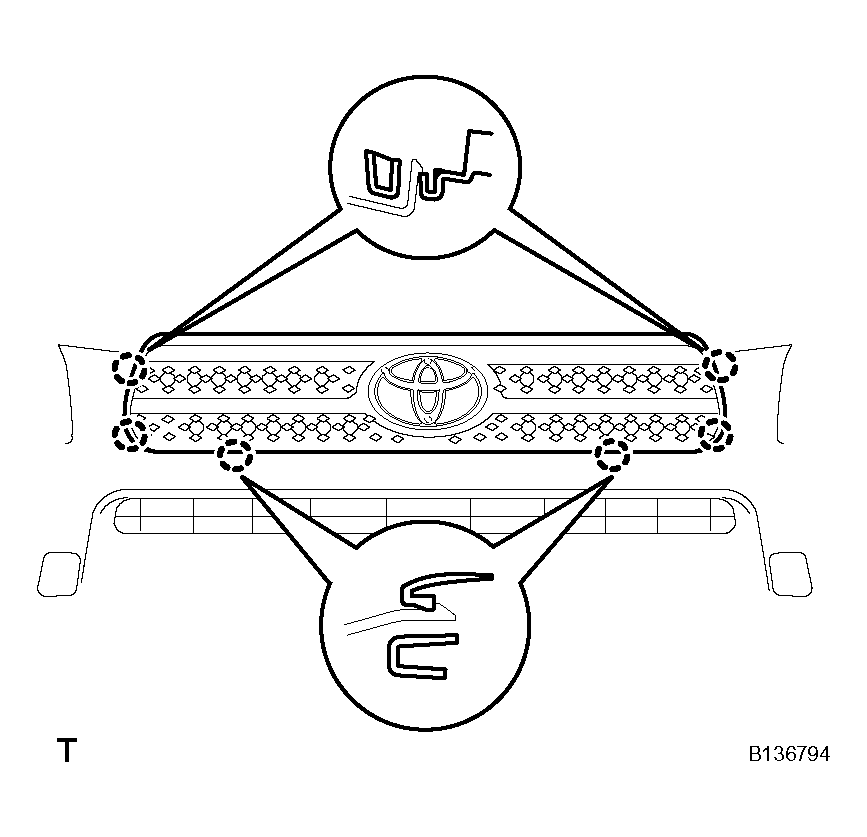

  Fig 2: Identifying Radiator Grille Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 RADIATOR GRILLE LOWER
1. Detach the 16 claws and remove the radiator grille.

  Fig 3: Identifying Radiator Grille Lower Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 RADIATOR GRILLE LOWER
1. Detach the 16 claws and remove the radiator grille.

  Fig 4: Identifying Radiator Grille Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
