Front Bumper: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

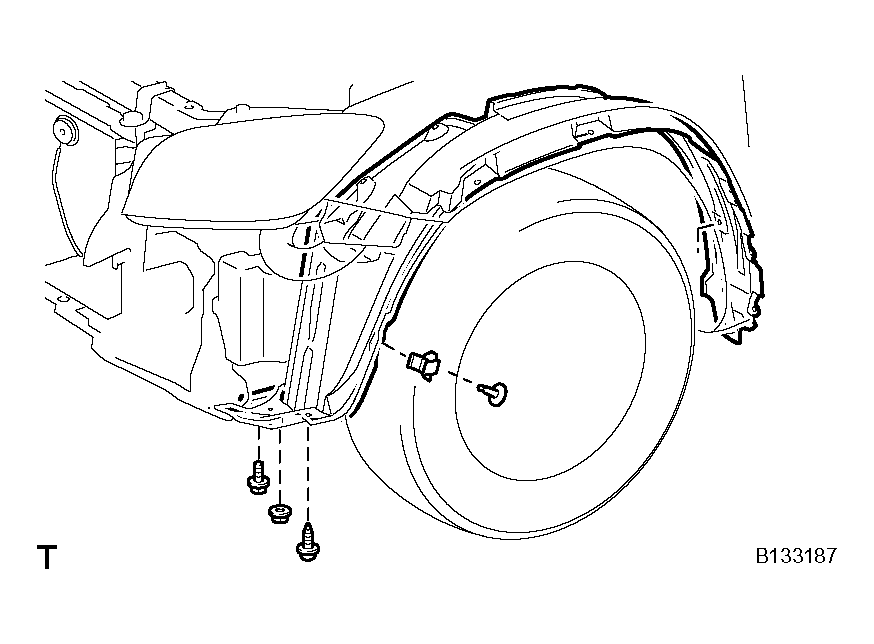

REMOVE FRONT FENDER LINER LH
1. Using a screwdriver, remove the fender liner retainer.
2. Remove the screw, nut and bolt.

  Fig 1: Removing Screw, Nut And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. w/Splash Shield:
  Remove the front fender splash shield LH.
4. Partially remove the fender liner.
  HINT:

  It is not necessary to fully remove the fender liner. Partially remove it so that the bumper cover can be removed later.
REMOVE FRONT FENDER LINER RH
HINT:

Use the same procedures described for the LH side.
REMOVE RADIATOR SUPPORT OPENING COVER
1. Remove the 2 clips.
2. Partially remove the radiator support opening cover.
  HINT:

  It is not necessary to fully remove the radiator support opening cover. Partially remove it so that the bumper cover can be removed later.

  Fig 2: Identifying Radiator Support Opening Cover Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR GRILLE PROTECTOR
1. Remove the 2 radiator grille protectors.

  Fig 3: Identifying Radiator Grille Protectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER COVER

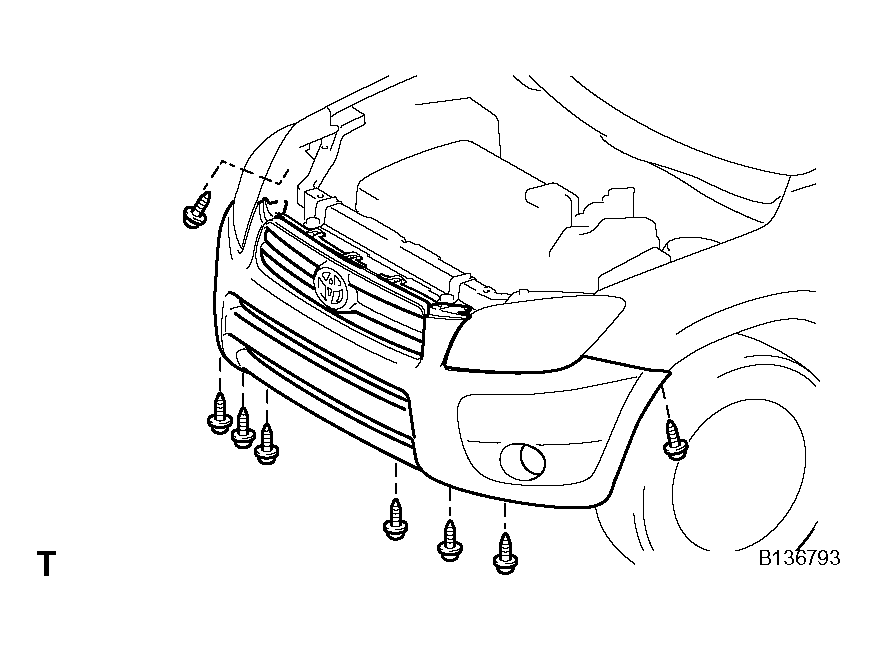

1. Remove the 8 screws.

  Fig 4: Identifying Front Bumper Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Apply protective tape under the front fender and headlight.

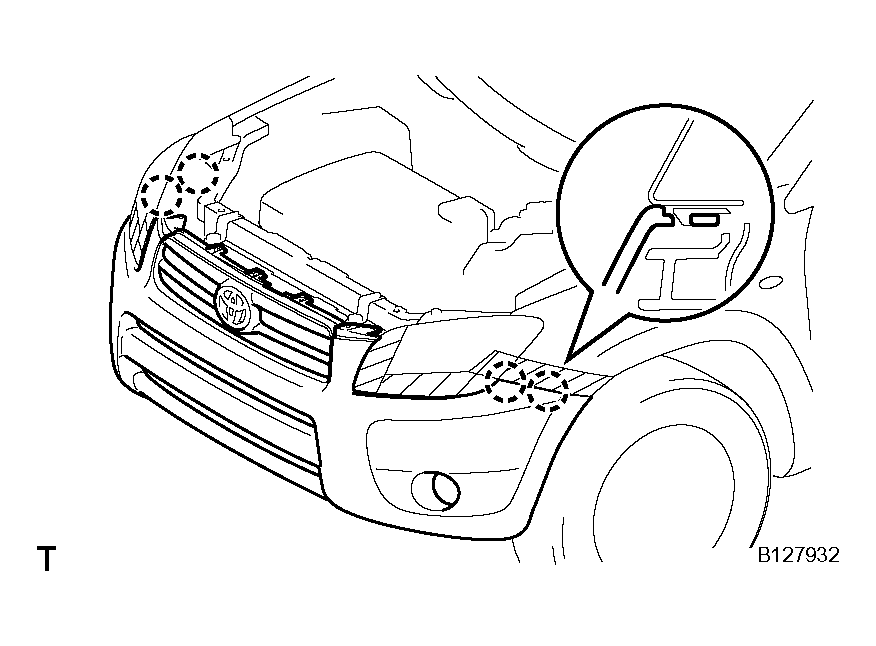

3. Using a screwdriver, detach the 4 claws.
  HINT:

  Tape the screwdriver tip before use.

  Fig 5: Identifying Bumper Cover Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. w/Fog Light:
  Disconnect the 2 fog light connectors.
5. Using a clip remover, remove the hood cushion center.

  Fig 6: Identifying Hood Cushion Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a clip remover, remove the 4 clips and remove the front bumper cover.

  Fig 7: Identifying Front Bumper Cover Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 FRONT BUMPER ENERGY ABSORBER
1. Remove the absorber.

  Fig 8: Identifying No. 2 Front Bumper Energy Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER RETAINER
1. Remove the bolt and retainer.

  Fig 9: Identifying Front Bumper Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
1. Detach 5 clamps and remove the wire harness.

  Fig 10: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

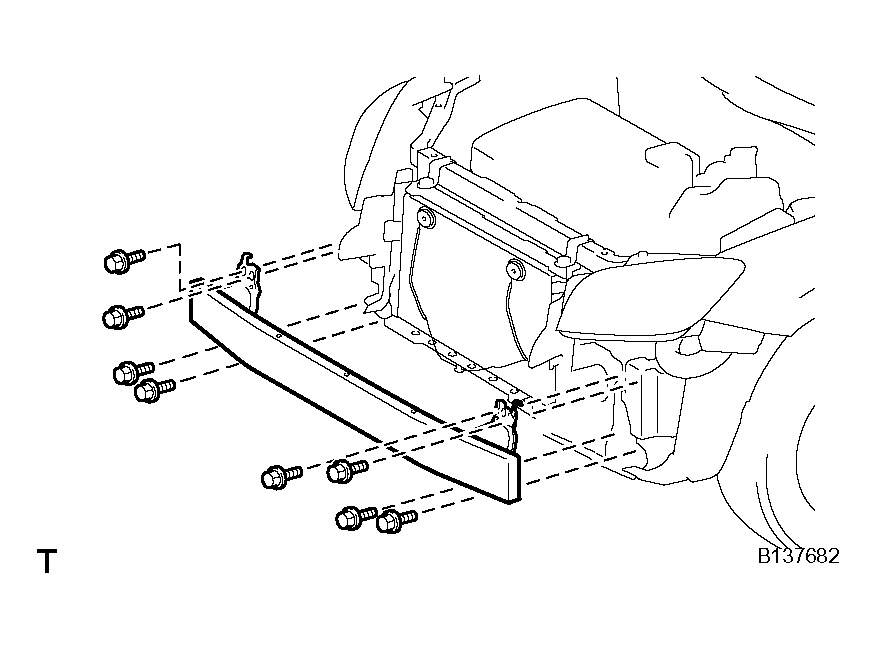

2. Remove the 8 bolts and reinforcement.

  Fig 11: Identifying Bolts And Reinforcement
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

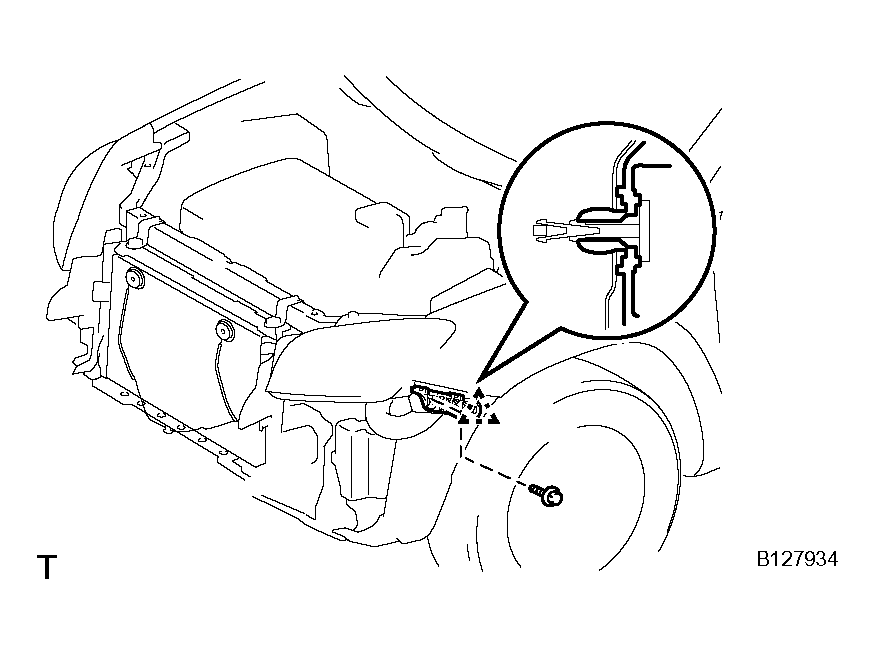

REMOVE FRONT BUMPER SIDE RETAINER LH
1. Remove the bolt.
2. Using a screwdriver, detach the clip and remove the bumper side retainer.
  HINT:

  Tape the screwdriver tip before use.

  Fig 12: Identifying Front Bumper Side Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT BUMPER SIDE RETAINER RH
HINT:

Use the same procedures described for the LH side.
