RADIATOR GRILLE (for 2GR-FE): Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL NO. 2 RADIATOR GRILLE LOWER
1. Install the radiator grille and attach the 16 claws.

  Fig 1: Identifying Radiator Grille Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RADIATOR GRILLE LOWER
1. Install the radiator grille and attach the 16 claws.

  Fig 2: Identifying Radiator Grille Lower Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE
1. Install the radiator grille with the 6 claws.

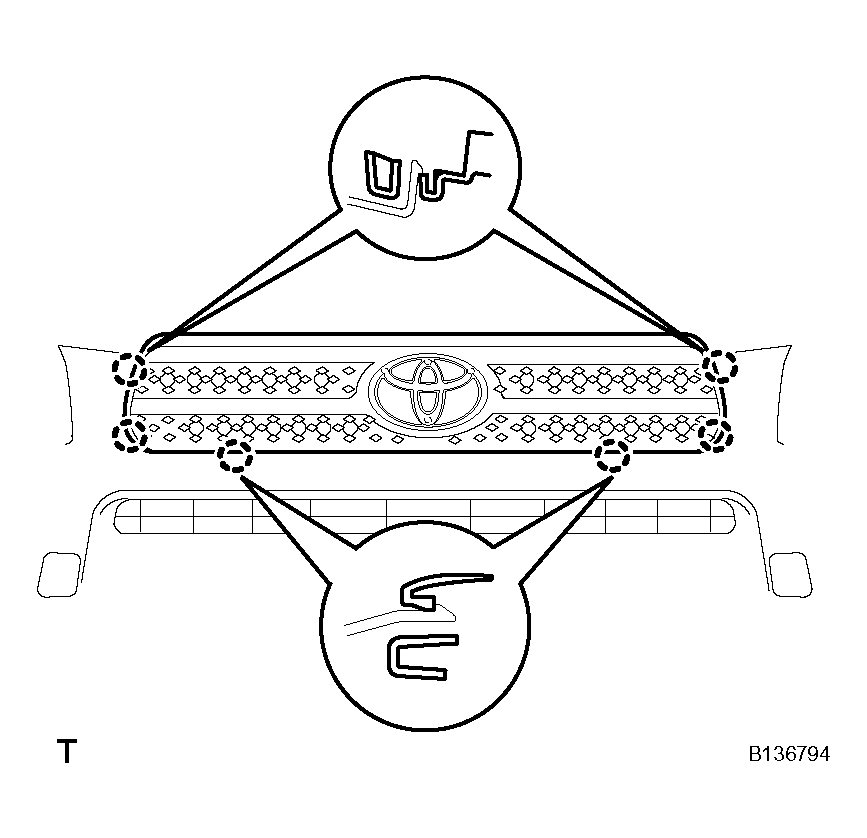

  Fig 3: Identifying Radiator Grille Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 4 bolts and 4 nuts.

  Fig 4: Identifying Radiator Grille Sub-Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD TO RADIATOR GRILLE SEAL (See INSTALLATION ).
