Front Door Belt Moulding: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

INSTALL FRONT DOOR BELT MOULDING ASSEMBLY LH

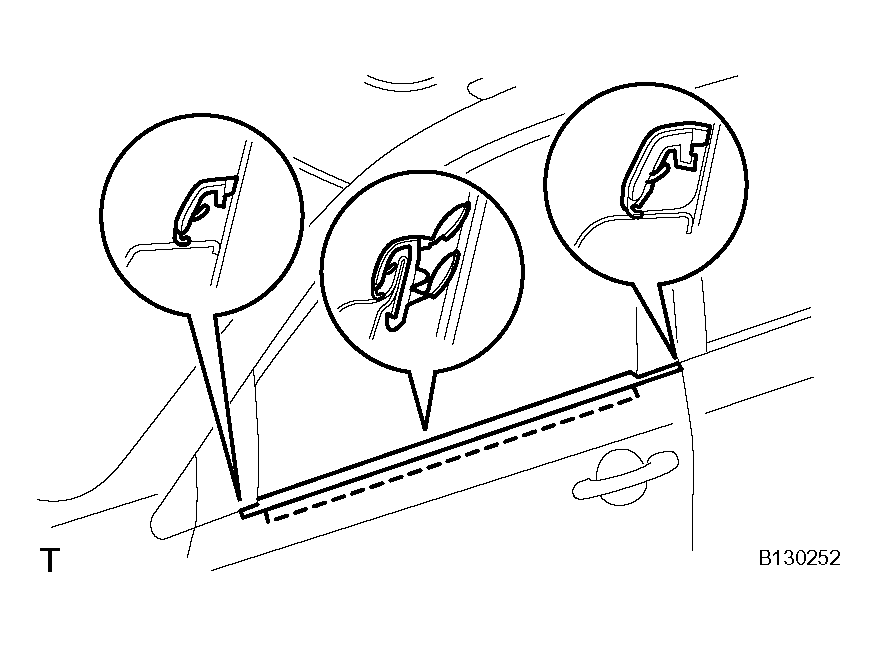

1. Attach the claws to install the belt moulding.
  HINT:

  Confirm that the moulding is firmly installed.
INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (See REASSEMBLY )
INSTALL FRONT ARMREST BASE PANEL UPPER LH (See REASSEMBLY )
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See REASSEMBLY )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
