Outer Rear View Mirror: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OUTER MIRROR COVER LH
1. Attach the 8 claws and install the mirror cover.

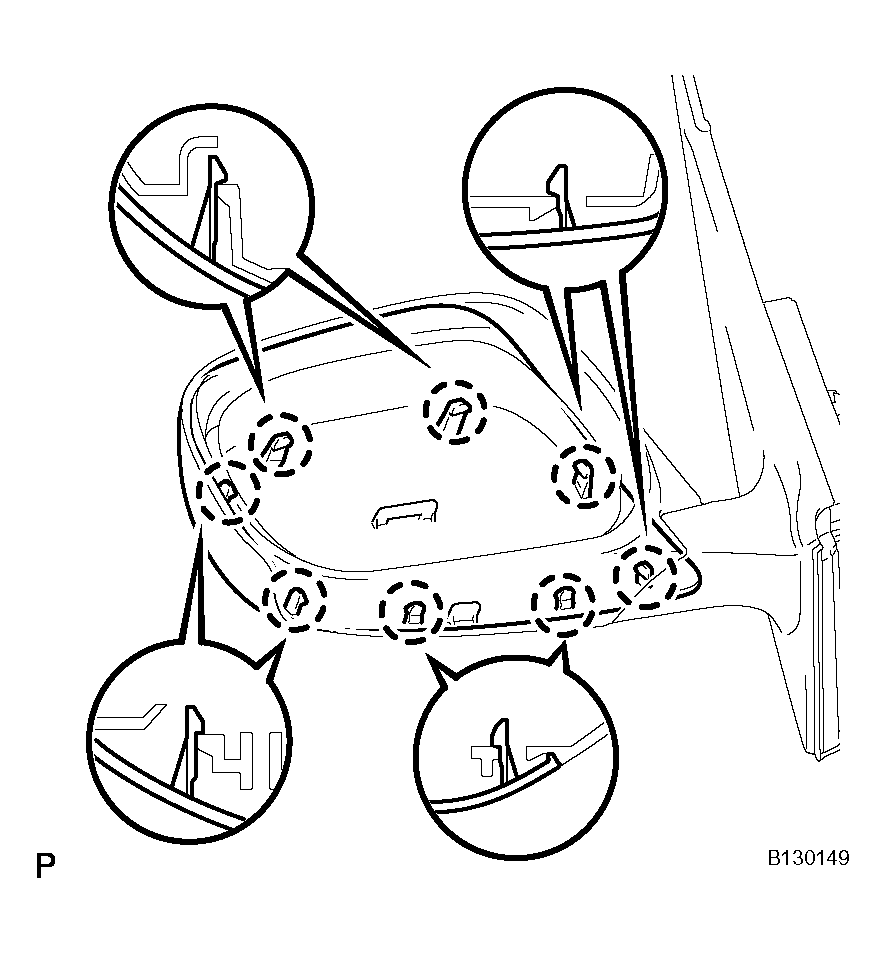

  Fig 1: Installing Outer Mirror Cover Lh
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. After installing the outer mirror cover, check that there is no gap between the cover and mirror body.
  HINT:

  If there is a gap between the cover and body, noise will occur during driving.
3. w/Mirror Heater:
  Connect the 2 connectors. Attach the 4 claws to install the mirror.

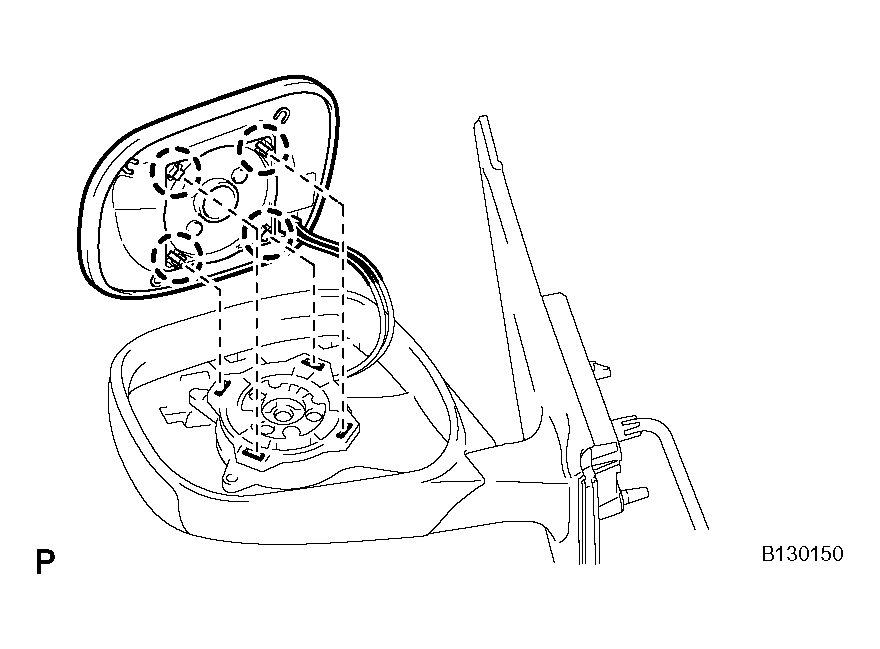

  Fig 2: Installing Mirror (w/Mirror Heater)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. w/o Mirror Heater:
  Attach the 4 claws to install the mirror.

  Fig 3: Installing Mirror (w/o Mirror Heater)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH
1. Pass the connector labeled A and wire harness of the mirror through the wire harness hole.
2. Temporarily install the mirror by inserting the bosses on the mirror into the holes on the vehicle.
3. Tighten the 3 screws in the sequence shown in the illustration and Install the mirror.

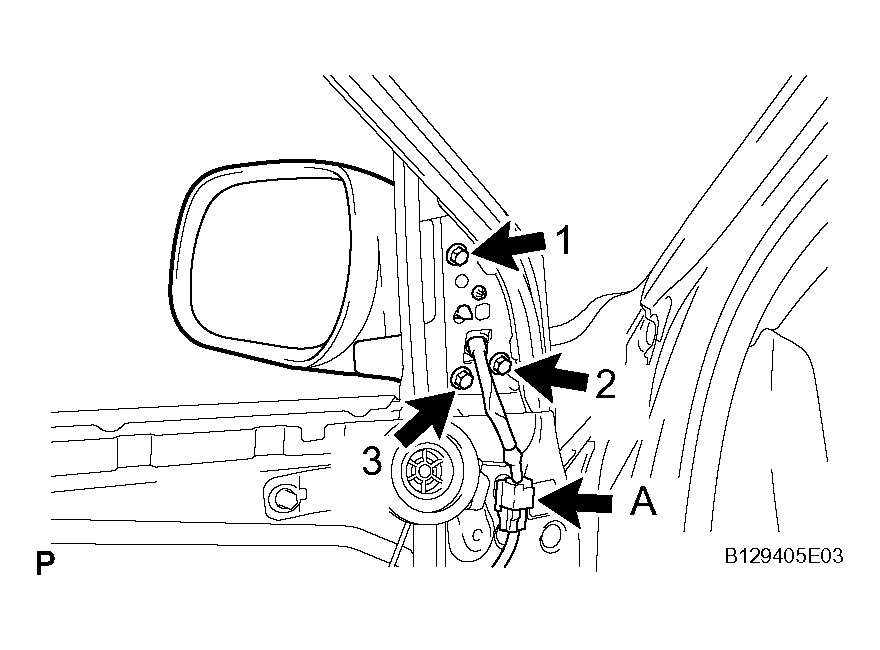

  Fig 4: Installing Outer Rear View Mirror Assembly To Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
4. Connect the connector labeled A.
INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (See appropriate step(s) under REASSEMBLY )
INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH (See appropriate step(s) under REASSEMBLY )
