Section 175 (Engine Cooling System (2GR-FE)): Radiator: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FAN SHROUD WITH COOLING FAN
    1. Install the fan shroud with cooling fan to the radiator with the 2 bolts.

      Torque: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)

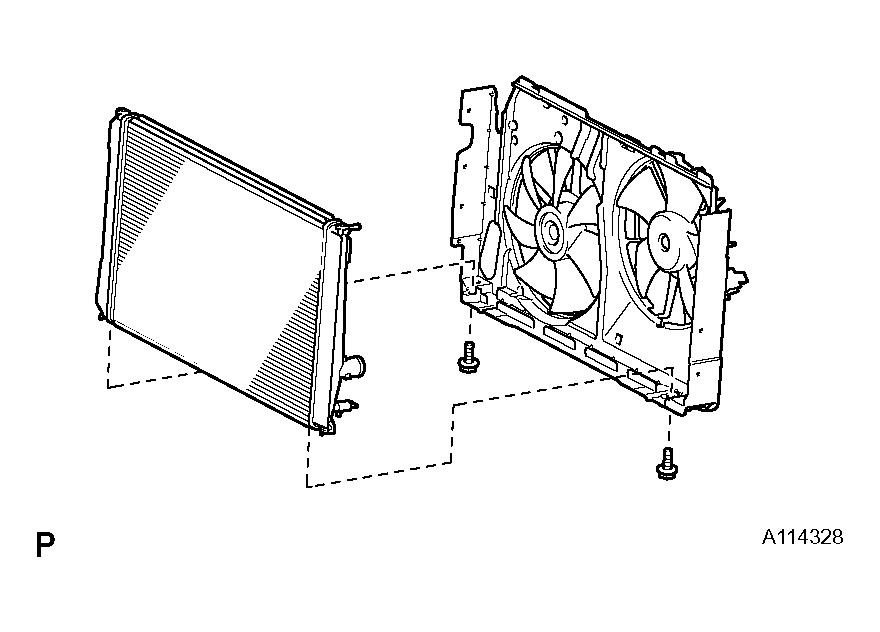

      Fig 1: Installing Fan Shroud With Cooling Fan To Radiator
      G04485885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL RADIATOR ASSEMBLY
    1. Install the 4 fan shroud cushions to the cooler condenser.
    2. Set the cooler condenser into the fan shroud.
    3. Install the 2 radiator support lower cushions to the fan shroud.
    4. Install the radiator with cooler condenser and fan shroud to the radiator support lowers.
      Fig 2: Installing Fan Shroud Cushions To Cooler Condenser
      G04485886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL UPPER RADIATOR SUPPORT SUBASSEMBLY
    1. Install the upper radiator support with the 4 bolts.

      Torque: 29 N*m (296 kgf*cm, 21 ft.*lbf)

      Fig 3: Installing Upper Radiator Support With Bolts
      G04485887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL NO. 2 FAN SHROUD
    1. Attach the 2 claws to install the No. 2 fan shroud, and install the 2 bolts.

      Torque: 10.5 N*m (107 kgf*cm, 8 ft.*lbf)

      Fig 4: Attaching Claws & Installing No. 2 Fan Shroud
      G04485888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL UPPER RADIATOR SUPPORT BRACKET
    1. Install the brackets with the 2 bolts.

      Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

      Fig 5: Connecting By-Pass Hose To Radiator & Radiator Reservoir
      G04485889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT HORN CONNECTOR
    1. Connect the 2 horn connectors.
  7. CONNECT NO. 2 WATER BY-PASS HOSE
    1. Connect the by-pass hose to the radiator and radiator reservoir.

      HINT:

      The direction of the hose clamp is indicated in the illustration.

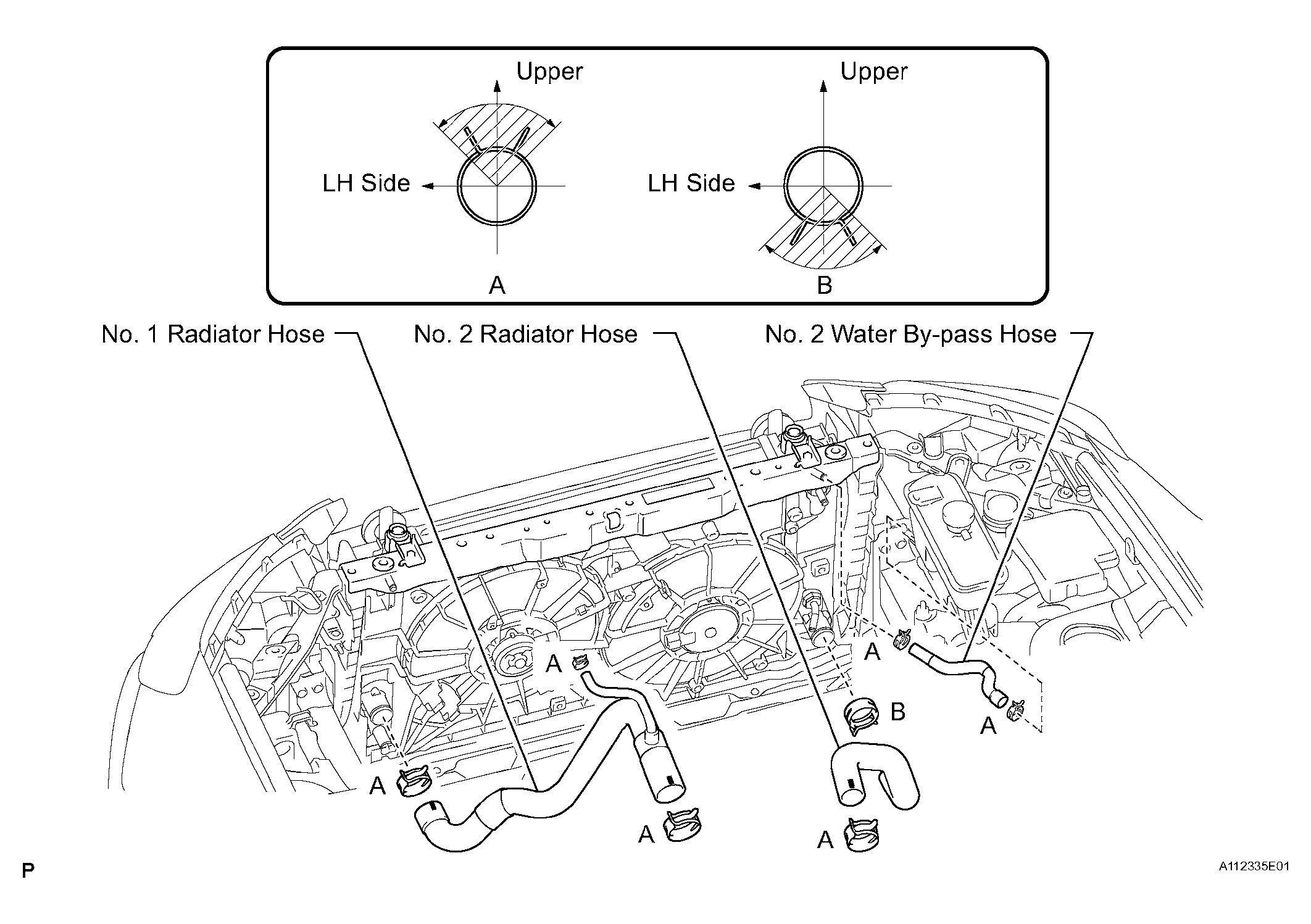

      Fig 6: Connecting Water By-Pass Hose & Radiator Hoses
      G04485890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT NO. 2 RADIATOR HOSE

    HINT:

    The direction of the hose clamp is indicated in the illustration. (See Fig 6).

  9. CONNECT NO. 1 RADIATOR HOSE

    HINT:

    The direction of the hose clamp is indicated in the illustration. (See Fig 6).

  10. CONNECT OIL COOLER OUTLET HOSE
  11. CONNECT OIL COOLER INLET HOSE
  12. CONNECT COOLING FAN ECU HARNESS (w/Trailer Towing System)
    1. Attach the harness with the 3 clamps.
    2. Connect the 2 fan ECU connectors.

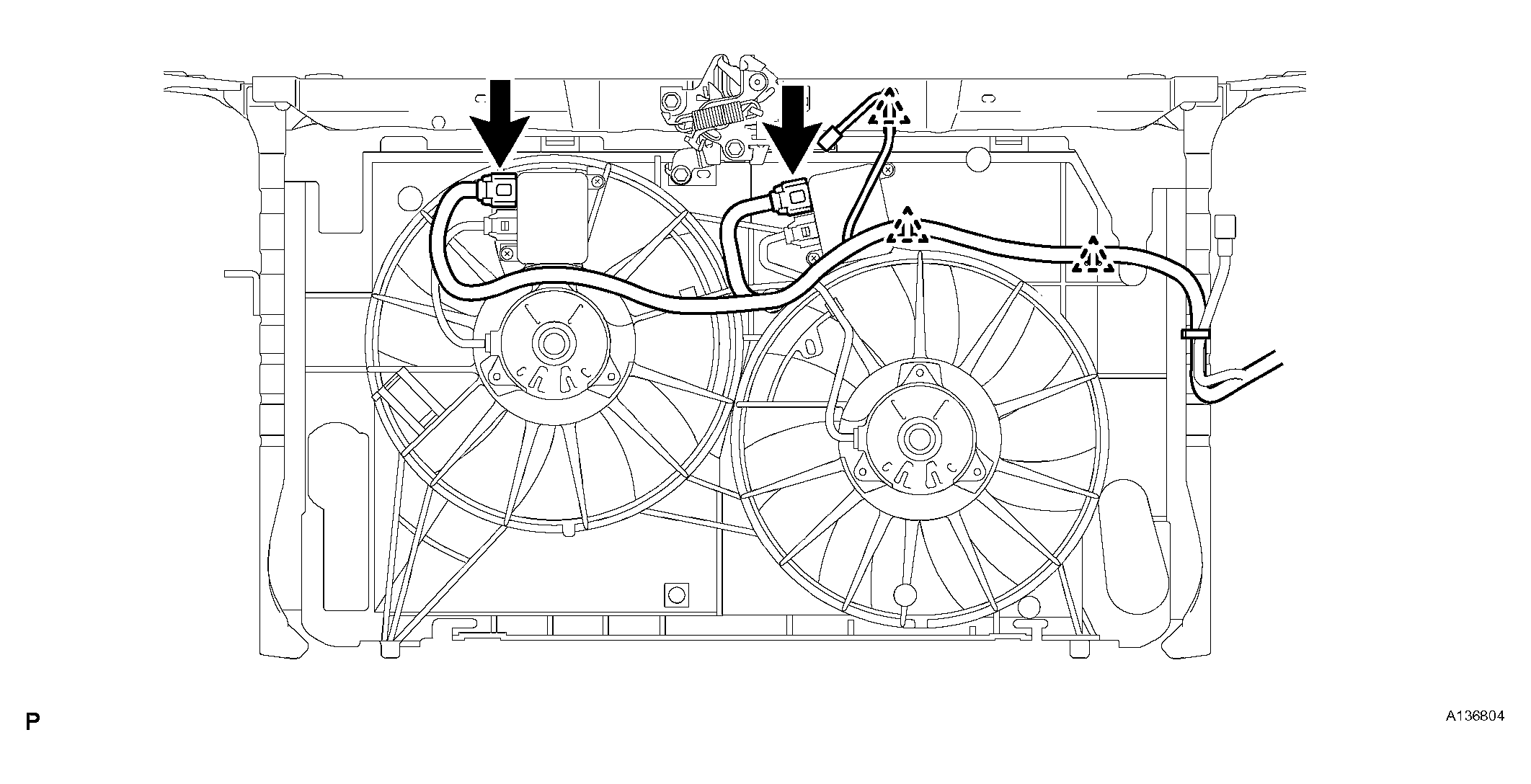

      Fig 7: Connecting The 2 Fan ECU Connectors
      G04485891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. CONNECT COOLING FAN ECU HARNESS (w/o Trailer Towing System)
    1. Attach the harness with the 3 clamps.
    2. Connect the fan ECU connector.

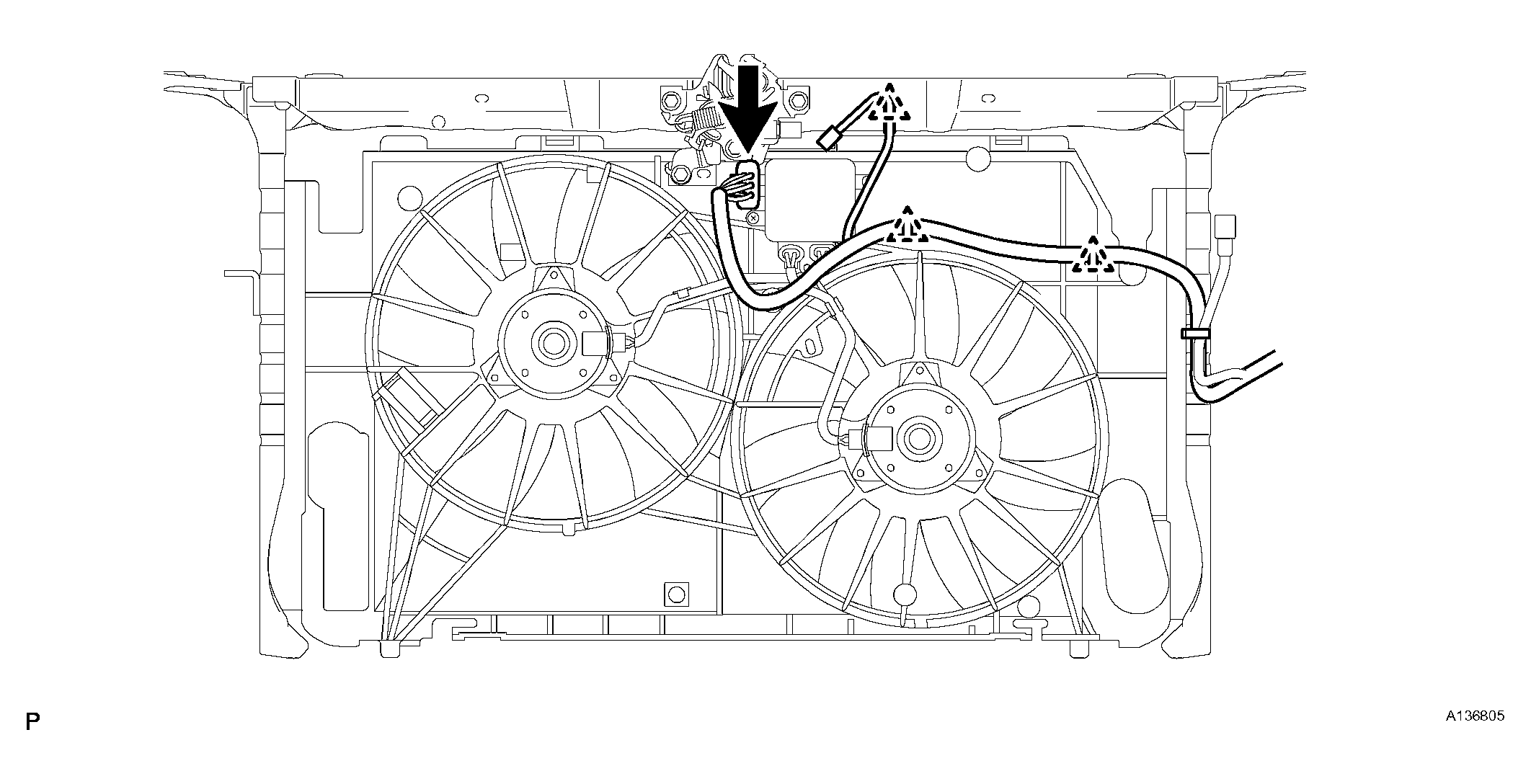

      Fig 8: Attaching Harness With Clamps & Fan ECU Connector
      G04485892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL NO. 1 WATER BY-PASS PIPE
    1. Install the by-pass pipe with the 2 bolts to the upper radiator support.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    2. Connect the No. 1 radiator hose to the pipe.
  15. CONNECT NO. 5 WATER BY-PASS HOSE
    1. Connect the by-pass hose to the radiator. (See Fig 9).
  16. CONNECT NO. 1 WATER BY-PASS HOSE
    1. Connect the by-pass hose to the radiator reservoir.

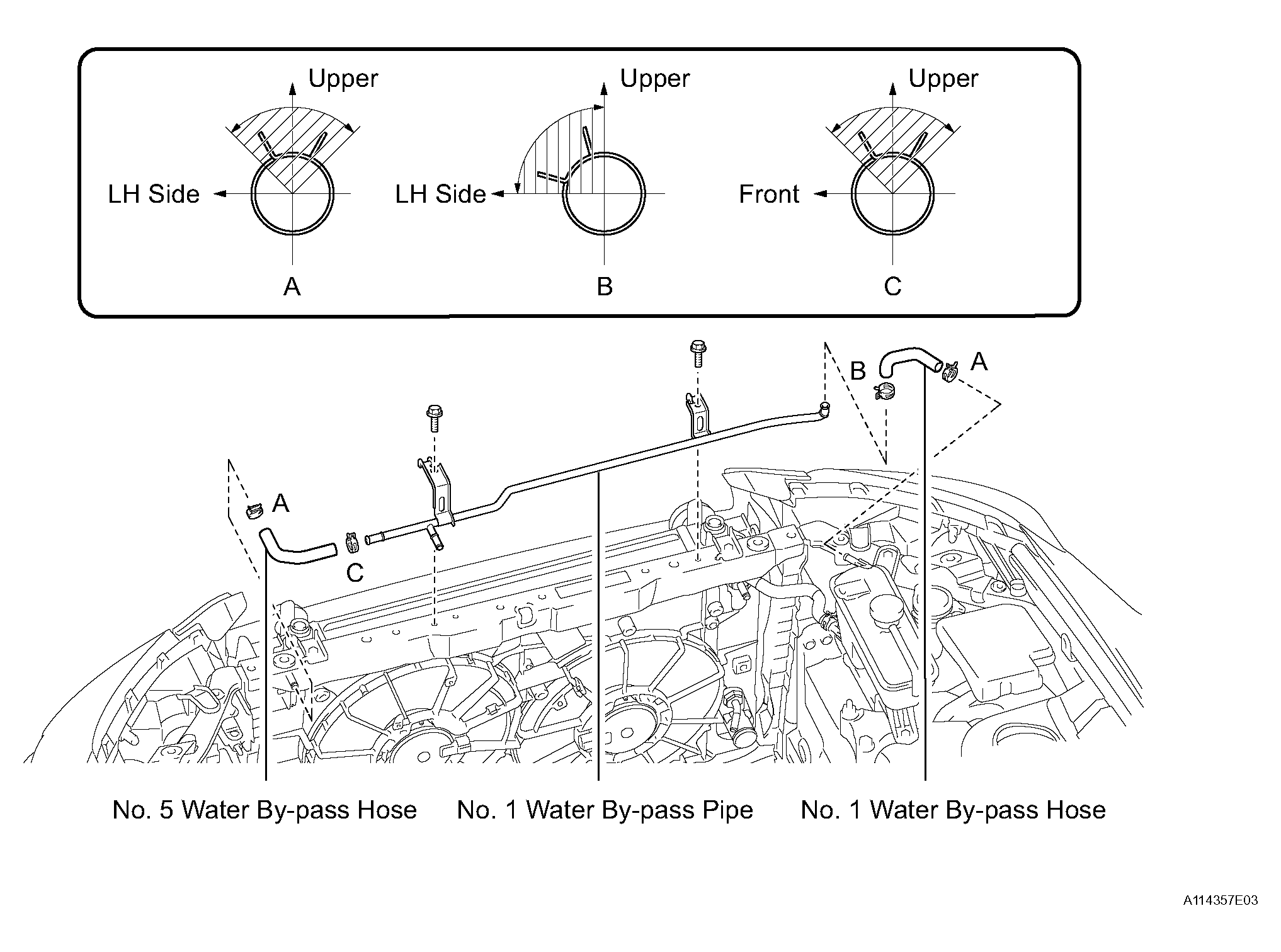

      Fig 9: Connecting Water By-Pass Hose & Water By-Pass Pipe
      G04485893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. CONNECT HOOD LOCK SWITCH CONNECTOR

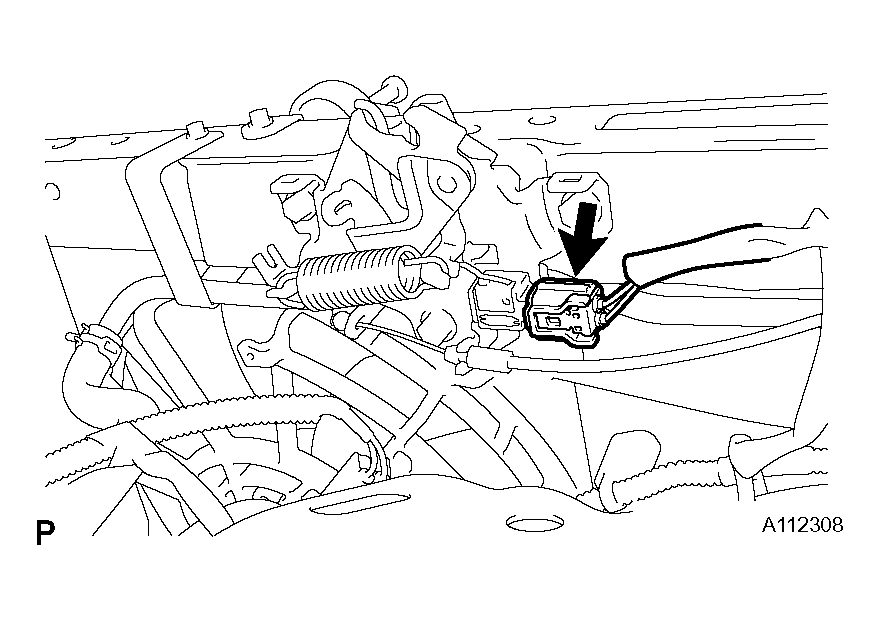

    Fig 10: Connecting Hood Lock Switch Connector
    G04485894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL RADIATOR GRILLE SUB-ASSEMBLY (See appropriate step(s) under  REASSEMBLY  )
  19. INSTALL BATTERY
  20. INSTALL BATTERY INSULATOR
  21. INSTALL BATTERY CLAMP SUB-ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  23. INSTALL RADIATOR SUPPORT OPENING COVER (See appropriate step(s) under  INSTALLATION  )
  24. INSTALL V-BANK COVER SUB-ASSEMBLY (See appropriate step(s) under  INSTALLATION  )
  25. ADD ENGINE COOLANT (See  REPLACEMENT  )
  26. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
  27. INSTALL NO. 1 ENGINE UNDER COVER (See appropriate step(s) under  INSTALLATION  )
