Front Bumper: Reassembly

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FRONT BUMPER EXTENSION LH (for Wide Body)
1. Attach the 7 outside moulding retainers to install the extension.

  Fig 1: Identifying Outside Moulding Retainers And Extension LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER EXTENSION RH (for Wide Body)
HINT:

Use the same procedures described for the LH side.
INSTALL FRONT BUMPER HOLE COVER LH (w/o Fog Light)
1. Install the bumper hole cover with the fog light mounting bracket and 3 bolts.

  Fig 2: Identifying Bumper Hole Cover And Fog Light Mounting Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER HOLE COVER RH (w/o Fog Light)
HINT:

Use the same procedures described for the LH side.
INSTALL FOG LIGHT ASSEMBLY LH
1. Install the fog light mounting bracket with the 3 bolts.
2. Install the fog light with the screw.
INSTALL FOG LIGHT ASSEMBLY RH
HINT:

Use the same procedures described for the LH side.
INSTALL FRONT BUMPER ARM HOLE COVER LH
1. Install the hook.
2. Attach the 2 claws and install the hole cover.
INSTALL FRONT BUMPER ARM HOLE COVER RH
HINT:

Use the same procedures described for the LH side.
INSTALL NO. 2 RADIATOR GRILLE LOWER
1. Install the radiator grille and attach the 16 claws.

  Fig 5: Identifying Radiator Grille Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 RADIATOR GRILLE LOWER
1. Install the radiator grille and attach the 18 claws.

  Fig 6: Identifying Radiator Grille Lower Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE SUB-ASSEMBLY
1. Install the radiator grille with the 6 claws.

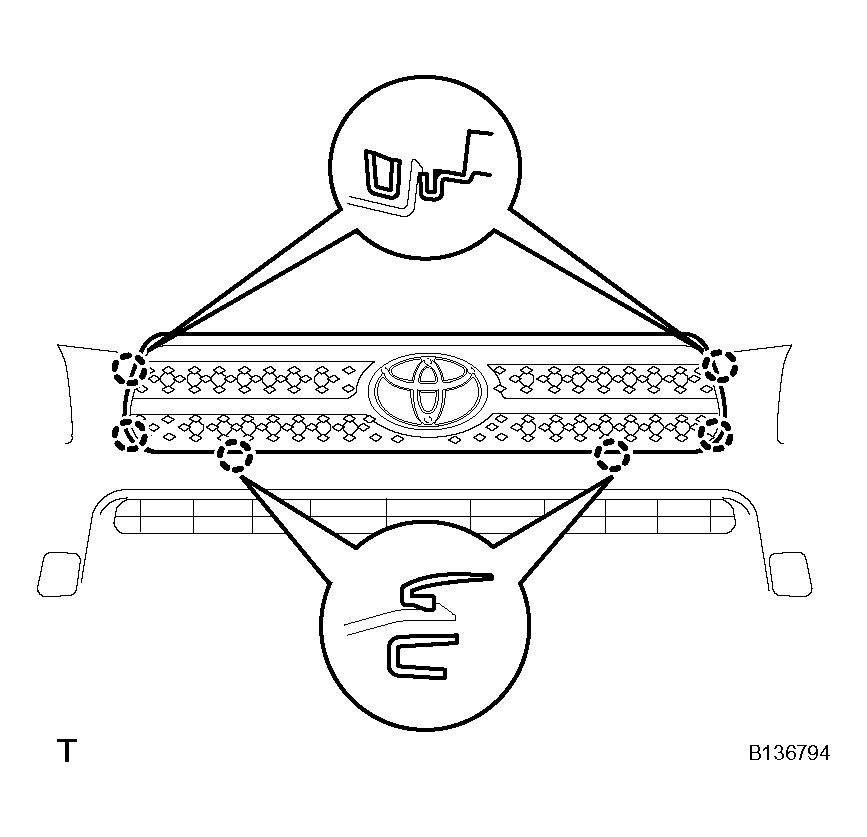

  Fig 7: Identifying Radiator Grille Sub-Assembly Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the 4 bolts and 4 nuts.

  Fig 8: Identifying Radiator Grille Sub-Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD TO RADIATOR GRILLE SEAL
1. Attach the 9 clips and install the hood to radiator grille seal.
