Fuel Injector: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not allow fuel to spray when removing the pipe between the high pressure side fuel pump and the fuel injector. The fuel in the pipe is highly pressurized.
  1. DISCHARGE FUEL SYSTEM PRESSURE
    CAUTION:
    • The "DISCHARGE FUEL SYSTEM PRESSURE" procedures must be performed before disconnecting any part of the fuel system.
    • After performing the "DISCHARGE FUEL SYSTEM PRESSURE" procedures, pressure will remain in the fuel line. When disconnecting the fuel line, place a cloth or equivalent over fittings to reduce the risk of fuel spray.
    1. Remove the console box (see appropriate step(s) under REMOVAL ).
      Fig 1: Identifying Connector
      G04485536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Start the engine. After the engine has stopped, turn the ignition switch OFF.

      HINT:

      DTC P0171/P0172 (system too lean) may be set.

    3. Check that the engine does not start.
    4. Remove the fuel tank cap, and let the air out of the fuel tank.
    5. Connect the connector.
      Fig 2: Identifying Connector
      G04485537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the console box (see appropriate step(s) under REASSEMBLY ).
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  3. REMOVE INTAKE AIR SURGE TANK ASSEMBLY (See appropriate step(s) under  REMOVAL  )
  4. DISCONNECT FUEL MAIN TUBE
    1. Remove the No. 2 fuel pipe clamp.

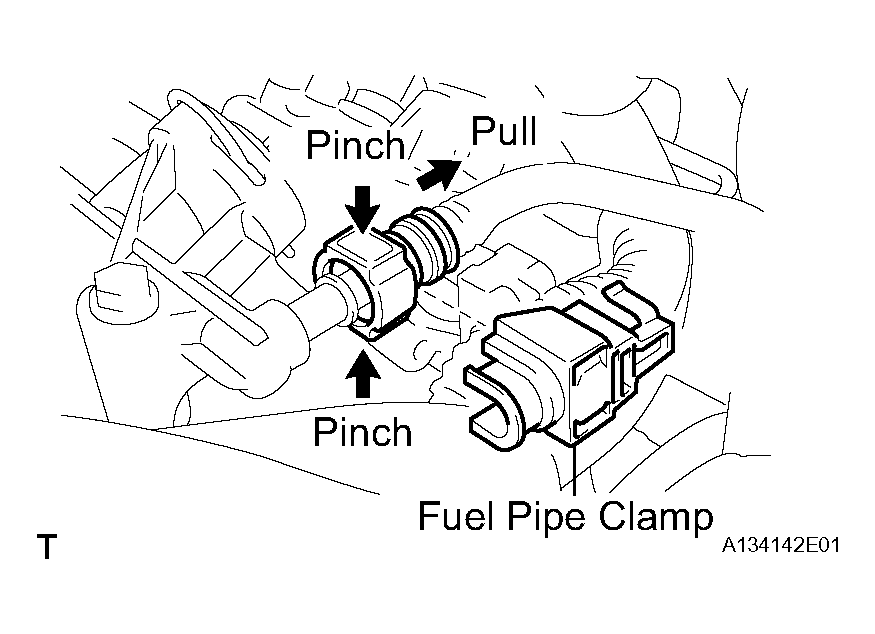

      Fig 3: Identifying Fuel Pipe Clamp
      G04485538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pinch the tube connector and then pull out the fuel pipe.
      Fig 4: Identifying Tube Connector
      G04485539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Check for foreign matter in the fuel tube around the fuel tube's connector. Clean it if necessary. Foreign matter can affect the O-ring's ability to seal the connector and fuel main pipe.
      • Do not use any tools to separate the connector and pipe.
      • Do not forcefully bend or twist the hose.
      • Keep the connector and pipe free from foreign matter.
      • If the connector and pipe are stuck together, pinch the connector and turn it carefully to disconnect it.
      • Put the connector in a plastic bag to prevent damage and contamination.
  5. REMOVE FUEL INJECTOR ASSEMBLY
    1. Disconnect the 6 injector connectors.

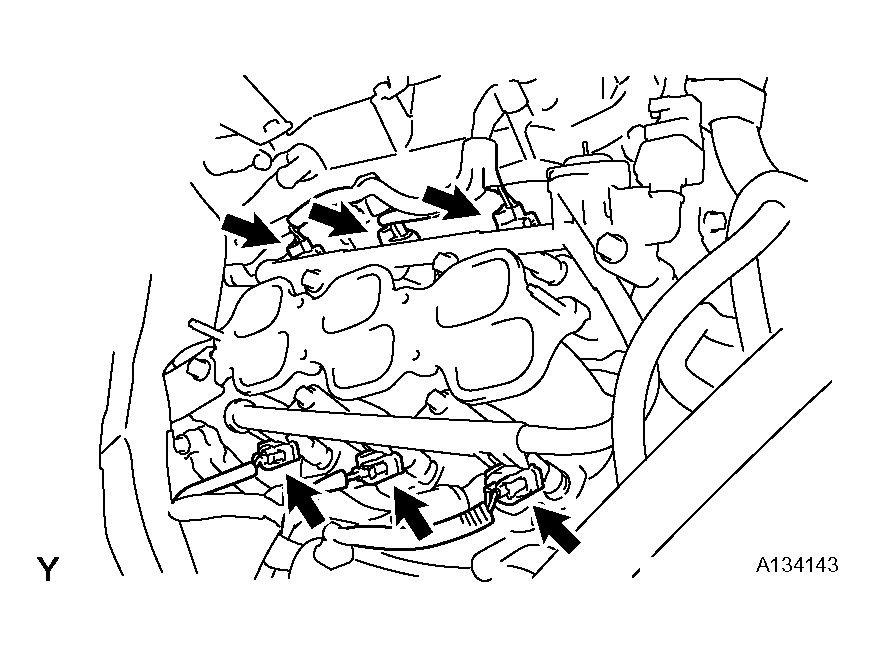

      Fig 5: Identifying Injector Connectors
      G04485540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 5 bolts and fuel delivery pipe together with the 6 injectors.
      NOTE: Be careful not to drop the fuel injectors when removing the fuel delivery pipe.

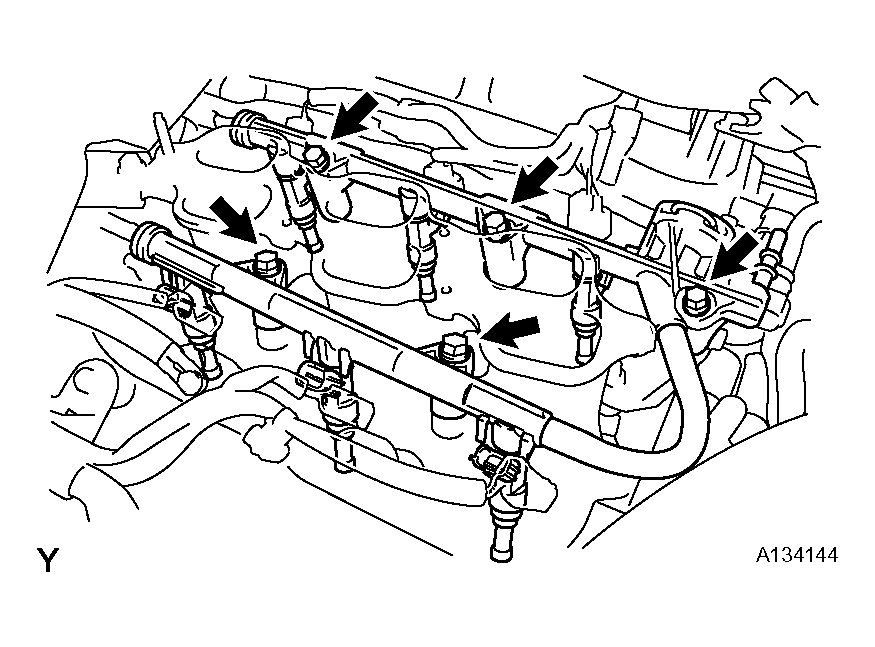

      Fig 6: Identifying Bolts And Fuel Delivery Pipe With Injectors
      G04485541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 6 insulators from the intake manifold.

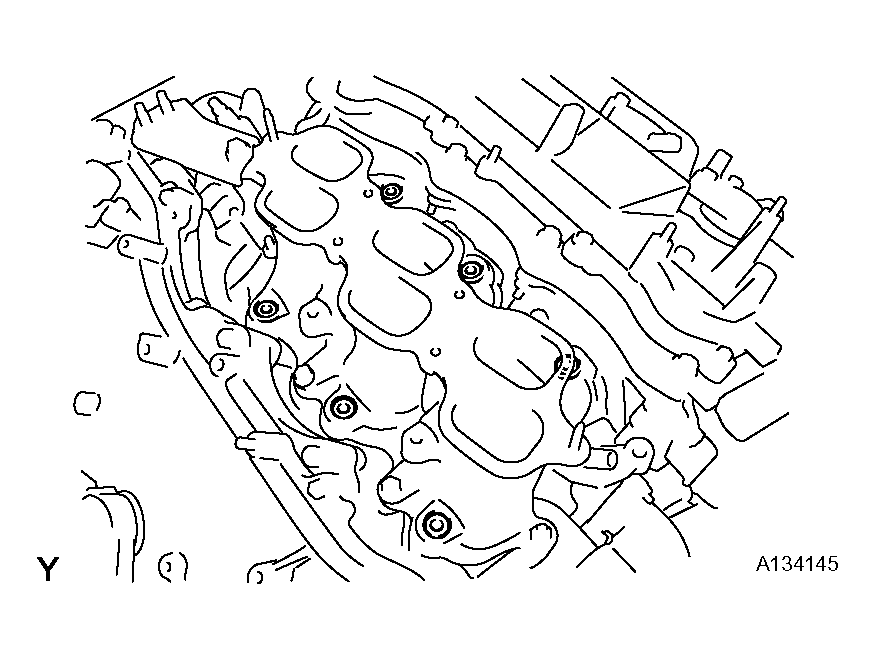

      Fig 7: Identifying Insulators From Intake Manifold
      G04485542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Pull out the 6 fuel injectors from the fuel delivery pipe.
      Fig 8: Identifying Fuel Injectors
      G04485543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the O-ring from each fuel injector.
