Section 168 ((Door / Hatch)): Hood: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HOOD INSULATOR
    1. Using a clip remover, remove the 7 clips and hood insulator.

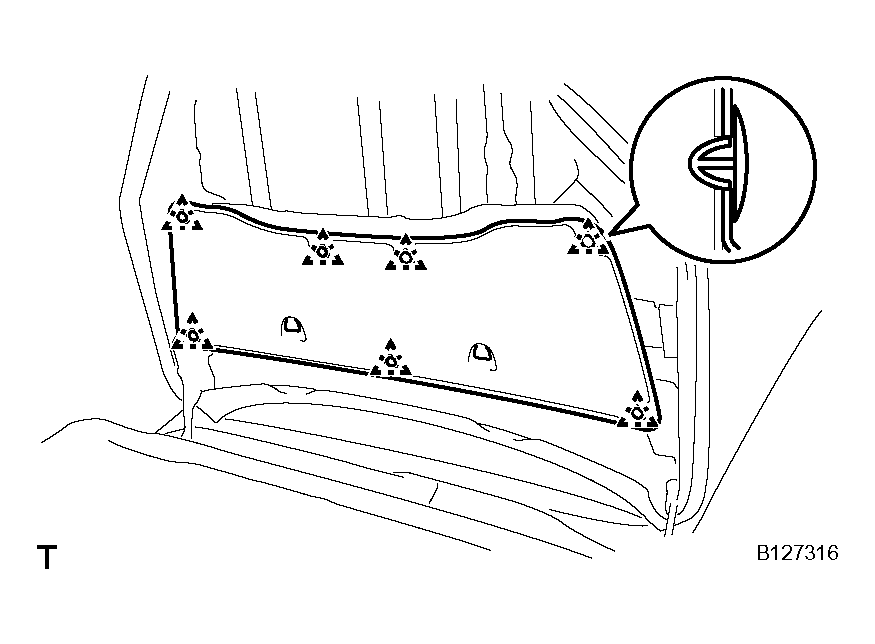

      2. Fig 1: Removing Clips And Hood Insulator
      G04491990Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE WASHER NOZZLE SUB-ASSEMBLY
  3. DISCONNECT WINDSHIELD WASHER HOSE
    1. Detach the 3 clamps and disconnect the washer hose.
      Fig 2: Detaching Clamps And Washer Hose
      G04491991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HOOD AUXILIARY CATCH HOOK ASSEMBLY
    1. Remove the bolt and hook.
      Fig 3: Removing Bolt And Hook
      G04491992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE HOOD SUB-ASSEMBLY
    1. Remove the 4 bolts and hood.
      Fig 4: Removing Bolts And Hood
      G04491993Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HOOD HINGE ASSEMBLY LH
    1. Remove the 2 bolts and hood hinge.
      2. Fig 5: Removing Bolts And Hood Hinge
      G04491994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE HOOD HINGE ASSEMBLY RH
    1. Remove the 2 bolts and hood hinge.
  8. REMOVE RADIATOR SUPPORT OPENING COVER (See appropriate step(s) under  REMOVAL  )
  9. REMOVE ENGINE HOOD LOCK STRIKER ASSEMBLY
    1. Remove the 3 bolts and hood lock striker.
      2. Fig 6: Removing Bolts And Hood Lock Striker
      G04491995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CUSHION RUBBER
    1. Remove the 4 cushion rubbers.
