Hood Lock Control Cable Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE RADIATOR SUPPORT OPENING COVER (See appropriate step(s) under  REMOVAL  )
  3. REMOVE HOOD LOCK ASSEMBLY
    1. w/Hood courtesy switch: Disconnect the connector.
    2. Remove the 3 bolts.
      Fig 1: Removing Bolts And Hood Lock Assembly
      G04492010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the cable and remove the lock.
      Fig 2: Disconnecting Cable
      G04492011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Detach the 3 claws and remove the lever.

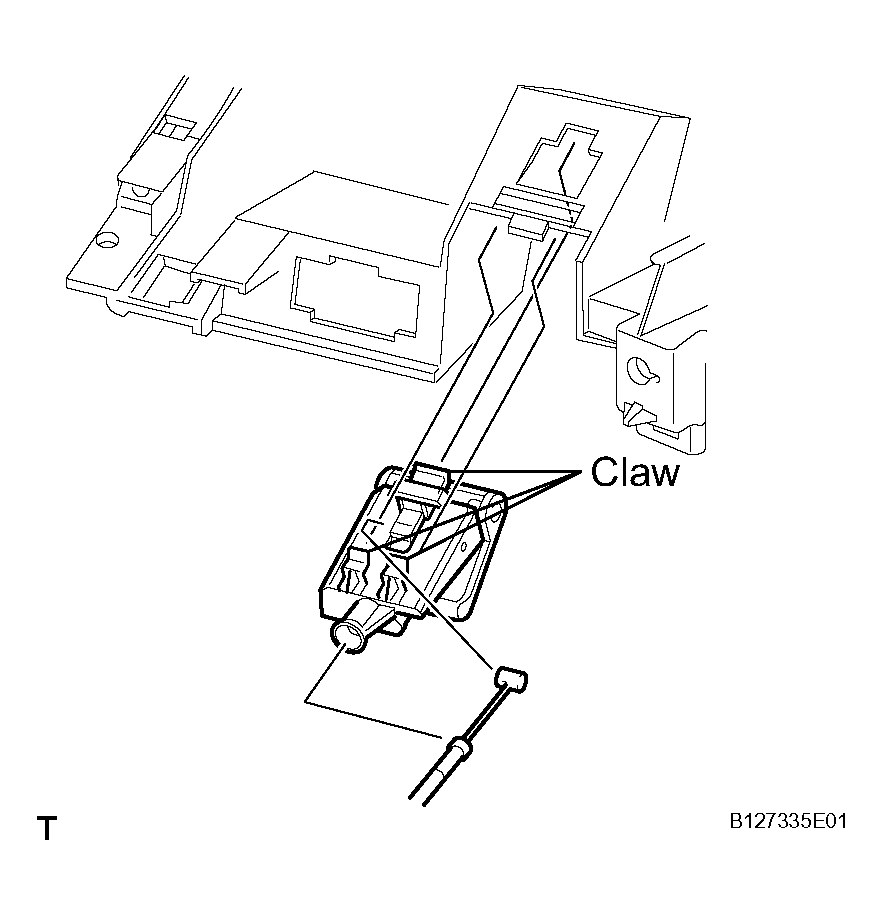

      2. Fig 3: Detaching Claws
      G04492012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the cable.
  5. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Remove the cable from the clamps, wire harness protector and wire harness grommet as shown in the illustration.

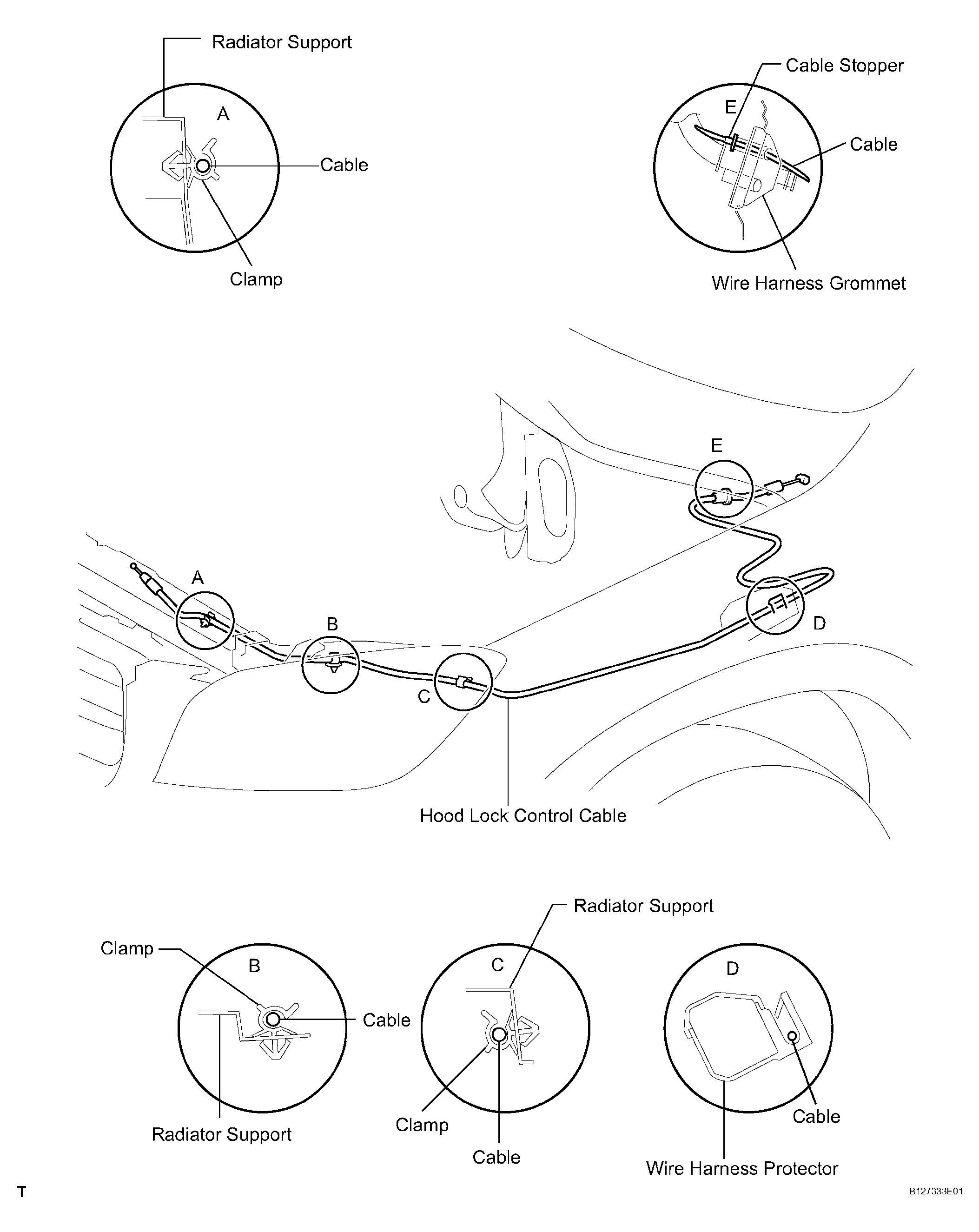

      Fig 4: Removing Cable From Clamps
      G04492013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
