Hood Lock Control Cable Assembly: Installation

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

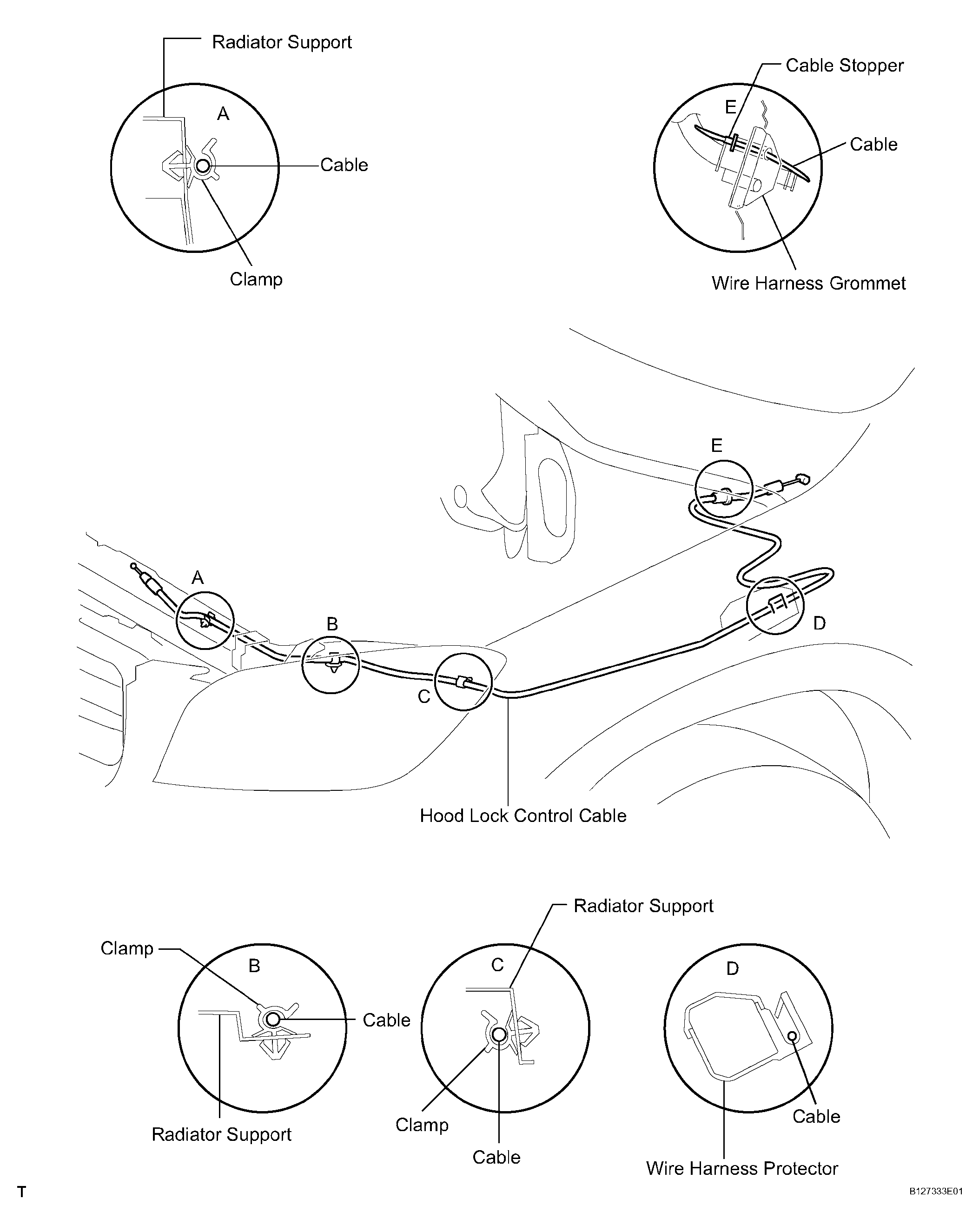

1. Install the cable to the clamps, wire harness protector and wire harness grommet as shown in the illustration.

  Fig 1: Installing Cable To Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK CONTROL LEVER SUBASSEMBLY

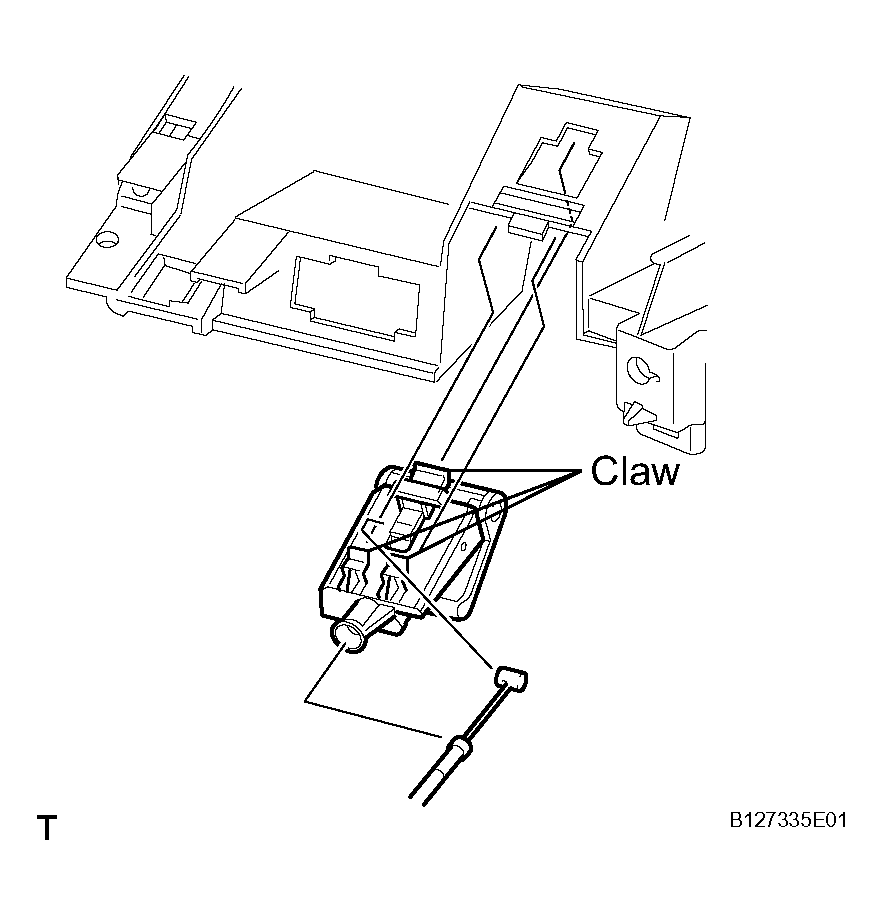

1. Connect the cable to the lever.
2. Attach the 3 claws to install the lever.

  Fig 2: Connecting Cable To Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK ASSEMBLY
1. Connect the cable to the lock.

  Fig 3: Connecting Cable To Lock
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the lock with the 3 bolts.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  Fig 4: Installing Lock With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Adjust the lock.
4. w/Hood courtesy switch: Connect the connector.
INSTALL RADIATOR SUPPORT OPENING COVER (See appropriate step(s) under INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
