Water Pump: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE NO. 1 ENGINE UNDER COVER
REMOVE FRONT FENDER APRON RH
REMOVE RADIATOR SUPPORT OPENING COVER
DRAIN ENGINE COOLANT (See COOLANT )
REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH (See appropriate step(s) under ON-VEHICLE INSPECTION )
REMOVE FAN AND GENERATOR V BELT (See appropriate step(s) under ON-VEHICLE INSPECTION )
REMOVE GENERATOR ASSEMBLY (See appropriate step(s) under REMOVAL )
REMOVE WATER PUMP PULLEY
1. Using SST, remove the 4 bolts and water pump pulley.
  SST 09960-10010 (09962-01000, 09963-00700)

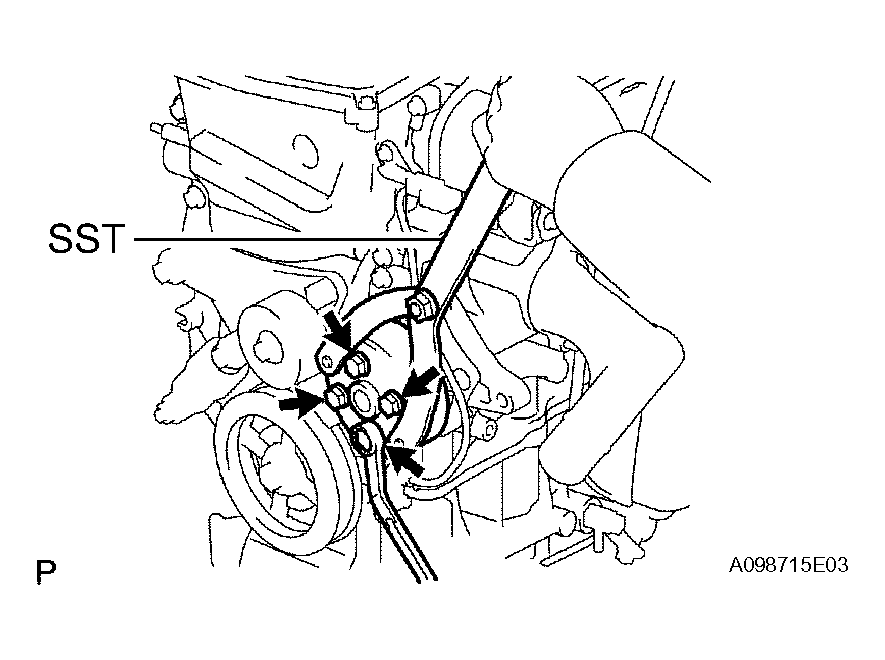

  Fig 1: Removing Bolts And Water Pump Pulley
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WATER PUMP ASSEMBLY
1. Remove the clamp of the crankshaft position sensor from the water pump.

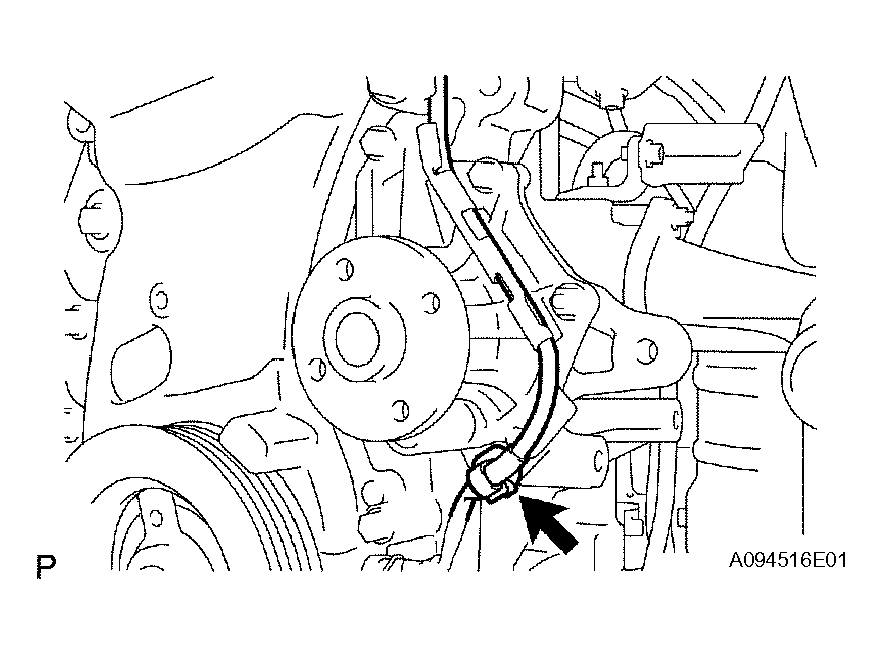

  Fig 2: Removing Clamp Of Crankshaft Position Sensor From Water Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the wire of the crankshaft position sensor from the clamp bracket.
3. Remove the 4 bolts, 2 nuts and clamp bracket.

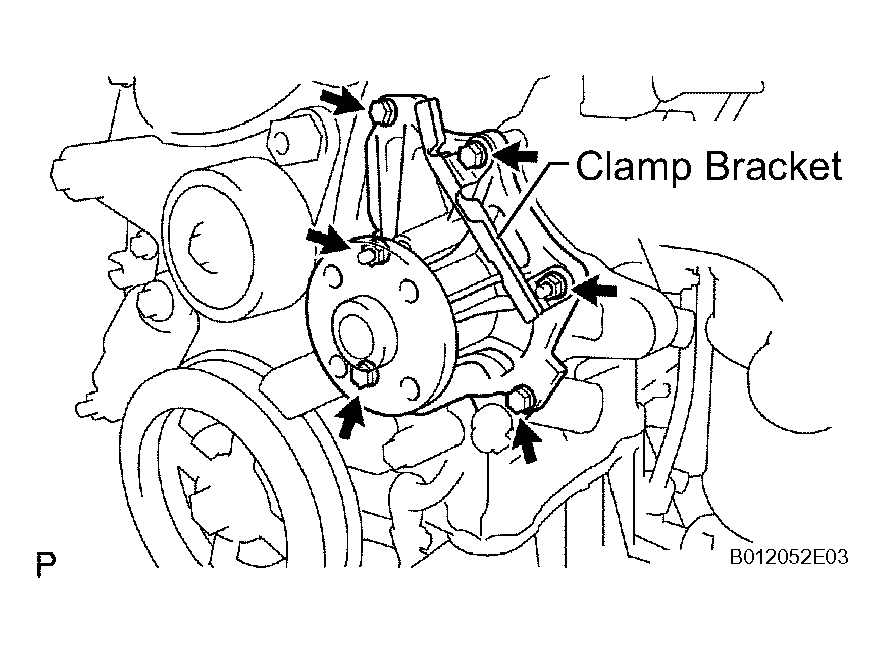

  Fig 3: Removing 4 Bolts, 2 Nuts And Clamp Bracket From Water Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, pry between the water pump and cylinder block, and then remove the water pump.
  NOTE: Be careful not to damage the contact surfaces of the water pump and cylinder block.

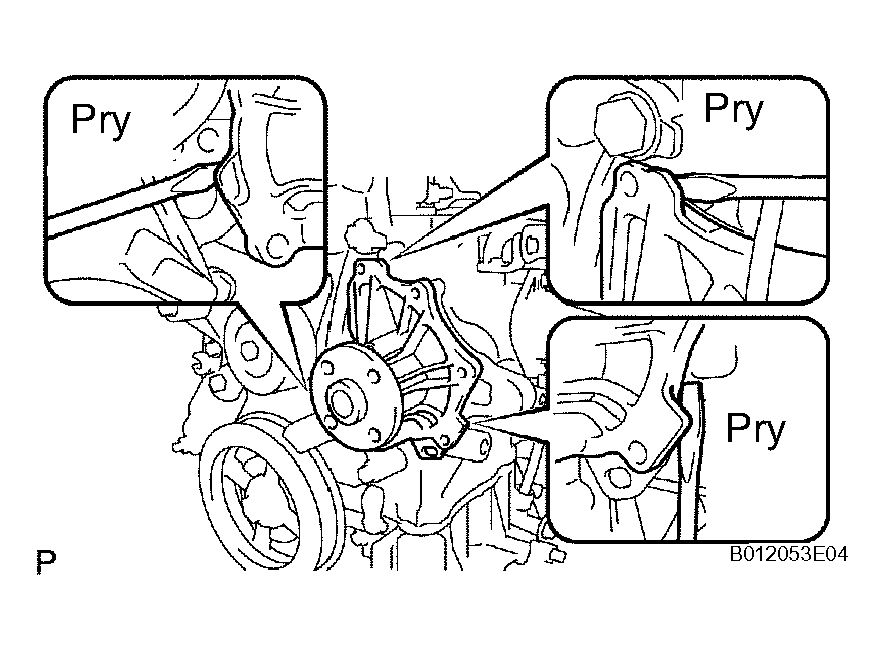

  Fig 4: Prying Between Water Pump And Cylinder Block, And Removing Water Pump
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
