Rear Seat Outer Belt Assembly: Removal

WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE REAR DOOR SCUFF PLATE LH (See  REMOVAL  )
  3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
  4. REMOVE PACKAGE TRAY TRIM POCKET SUBASSEMBLY (w/o Rear No. 2 Seat)
  5. REMOVE TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
  6. REMOVE REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
  7. REMOVE DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
  8. REMOVE NO. 2 SEAT HINGE COVER LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  9. REMOVE NO. 2 SEAT HINGE COVER RH (w/Rear No. 2 Seat) (See  REMOVAL  )
  10. REMOVE NO. 2 SEAT LEG COVER LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  11. REMOVE NO. 2 SEAT LEG COVER RH (w/Rear No. 2 Seat) (See  REMOVAL  )
  12. REMOVE REAR NO. 2 SEAT ASSEMBLY LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  13. REMOVE REAR NO. 2 SEAT ASSEMBLY RH (w/Rear No. 2 Seat) (See  REMOVAL  )
  14. REMOVE REAR FLOOR NO. 2 BOARD
  15. REMOVE REAR FLOOR NO. 3 BOARD
  16. REMOVE REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE (See  REMOVAL  )
  17. REMOVE BACK DOOR WEATHERSTRIP
  18. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
  19. REMOVE REAR DECK TRIM COVER (w/Rear No. 2 Seat)
  20. REMOVE RECLINING REMOTE CONTROL LEVER BEZEL LH (w/o Rear No. 2 Seat)
  21. DISCONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY RH
    1. Remove the lap belt outer anchor cover.
    2. Remove the bolt and disconnect the floor anchor.
      Fig 1: Disconnecting Floor Anchor
      G04490593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. DISCONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (w/Rear No. 2 Seat)
    1. Open the cover.
    2. Remove the bolt and disconnect the floor anchor.
      Fig 2: Disconnecting Floor Anchor
      G04490594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (w/o Rear No. 2 Seat) (See  REMOVAL  )
  24. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  25. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH (w/o Rear No. 2 Seat) (See  REMOVAL  )
  26. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (w/Rear No. 2 Seat)

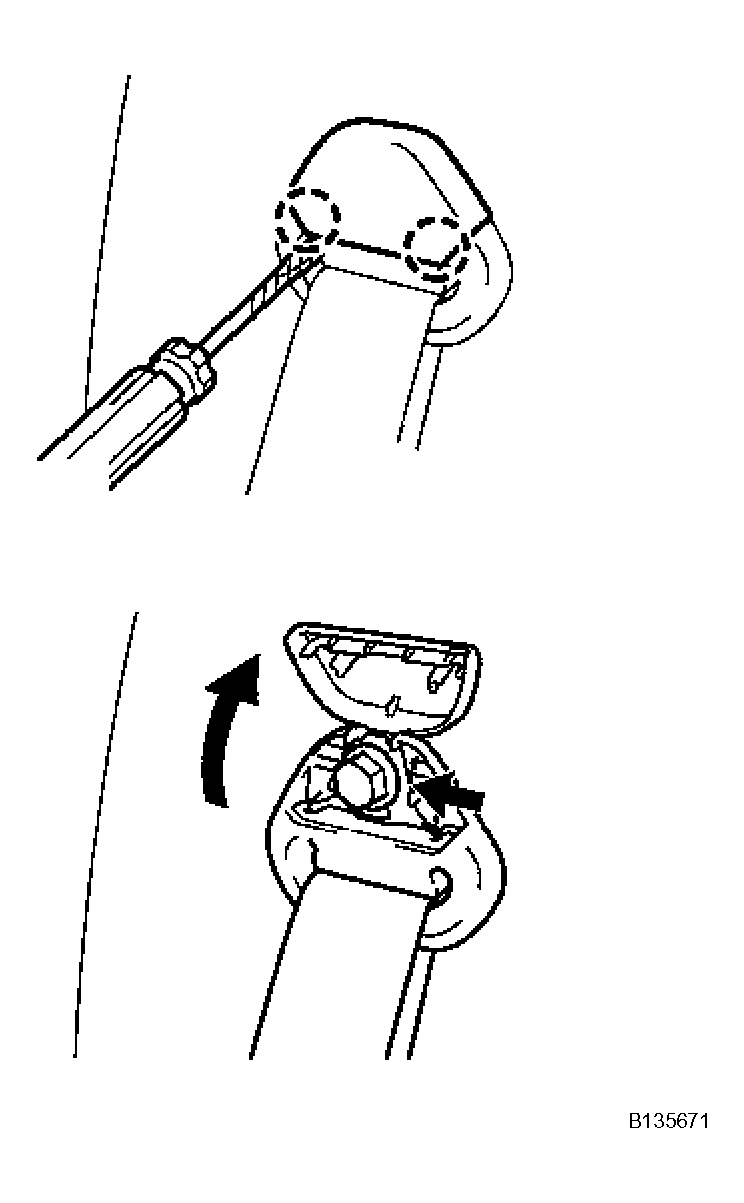

    1. Using a screwdriver, detach the 2 claws and open the seat belt anchor cover as shown in the illustration.

      HINT:

      Tape the screwdriver tip before use.

    2. Remove the bolt and disconnect the seat belt's shoulder anchor.
      Fig 3: Removing Bolt And Disconnect Seat Belt's Shoulder Anchor
      G04490595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and seat belt.
      Fig 4: Removing 2 Bolts And Seat Belt
      G04490596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE INNER ROOF SIDE GARNISH ASSEMBLY LH (w/Rear No. 2 Seat) (See  REMOVAL  )
  28. REMOVE REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
    1. Remove the bolt and disconnect the seat belt's shoulder anchor.
      Fig 5: Removing Bolt And Disconnect Seat Belt's Shoulder Anchor
      G04490597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and seat belt.

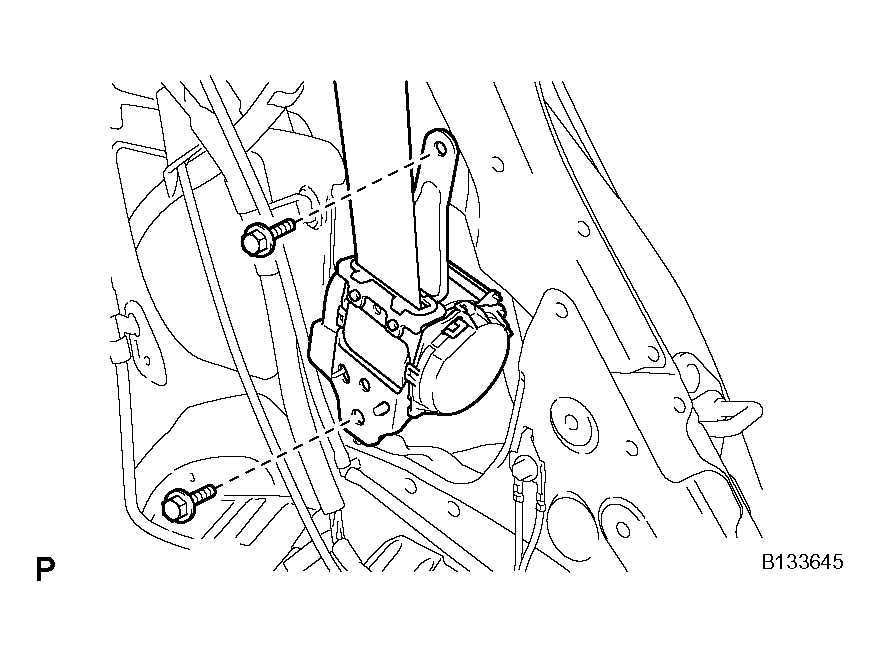

      Fig 6: Removing 2 Bolts And Seat Belt
      G04490598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
