Front Seat Inner Belt Assembly: Installation
WARNING: This page is about a different car, the 2008 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
HINT:
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).
Refer to appropriate step(s) under "Reassembly and Installation".
- INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Power Seat)
- Install the front seat inner belt assembly with the nut.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

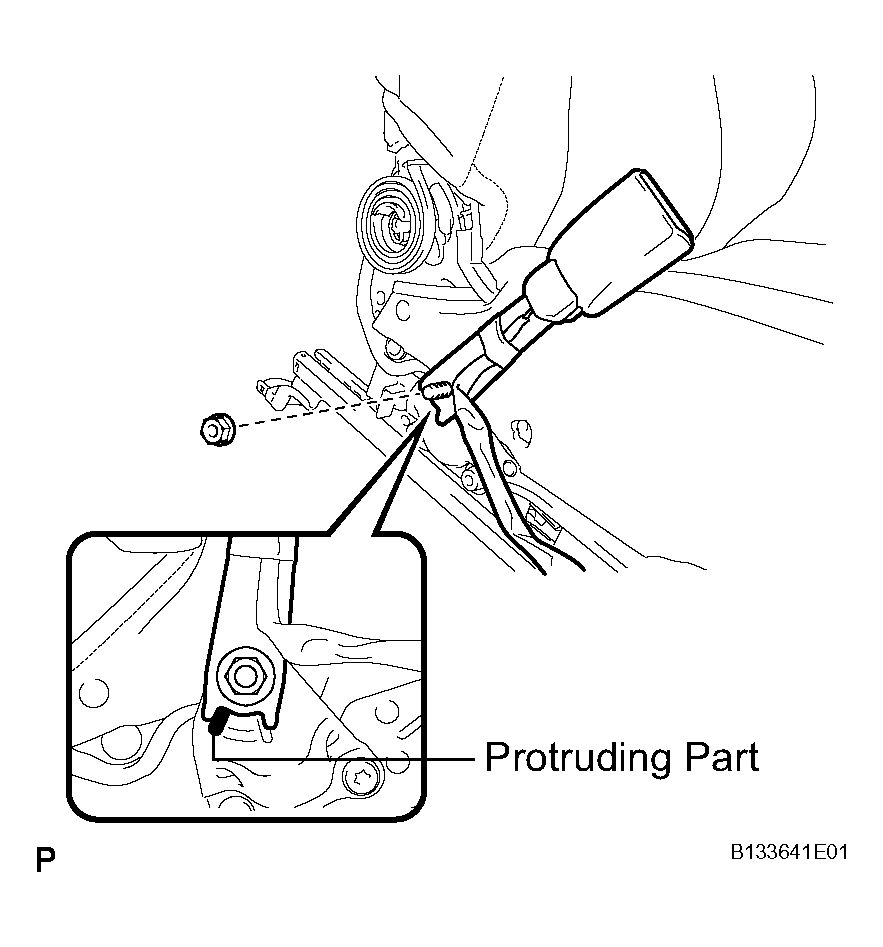

NOTE: Do not overlap the anchor part of the seat belt and protruding part of the seat adjuster. - for driver seat:
Attach the 2 clamps and connect the 2 connector.
- for Passenger Seat:
Attach the clamp and connect the 2 connector.
- Install the front seat inner belt assembly with the nut.
- INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Manual Seat)
- Install the front seat inner belt assembly with the nut.
Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
NOTE: Do not overlap the anchor part of the seat belt and protruding part of the seat adjuster. - for driver seat:
Attach the 3 clamps and connect the 2 connector.
- for Passenger Seat:
Attach the 2 clamps and connect the connector.
- Install the front seat inner belt assembly with the nut.
- INSTALL FRONT SEAT CUSHION INNER SHIELD LH (See REASSEMBLY )
- INSTALL FRONT SEAT CUSHION INNER SHIELD RH (See REASSEMBLY )
- INSTALL FRONT SEAT ASSEMBLY (for Power Seat) (See INSTALLATION )
- INSTALL FRONT SEAT ASSEMBLY (for Manual Seat) (See INSTALLATION )
- INSTALL FRONT SEAT TRACK BRACKET OUTER COVER LH (See INSTALLATION )
- INSTALL FRONT SEAT TRACK BRACKET INNER COVER LH (See INSTALLATION )
- INSTALL FRONT SEAT TRACK BRACKET INNER COVER RH
- Use the same procedures described for the LH side.
- INSTALL FRONT SEAT TRACK BRACKET OUTER COVER RH
- Use the same procedures described for the LH side.
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
