INSTALL PARKING BRAKE CABLE
1. Connect the cable to the backing plate and parking brake shoe lever.
  1. Pass the cable through the backing plate, and then connect the cable to the lever.
  2. Install the cable to the backing plate with the bolt.
    Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

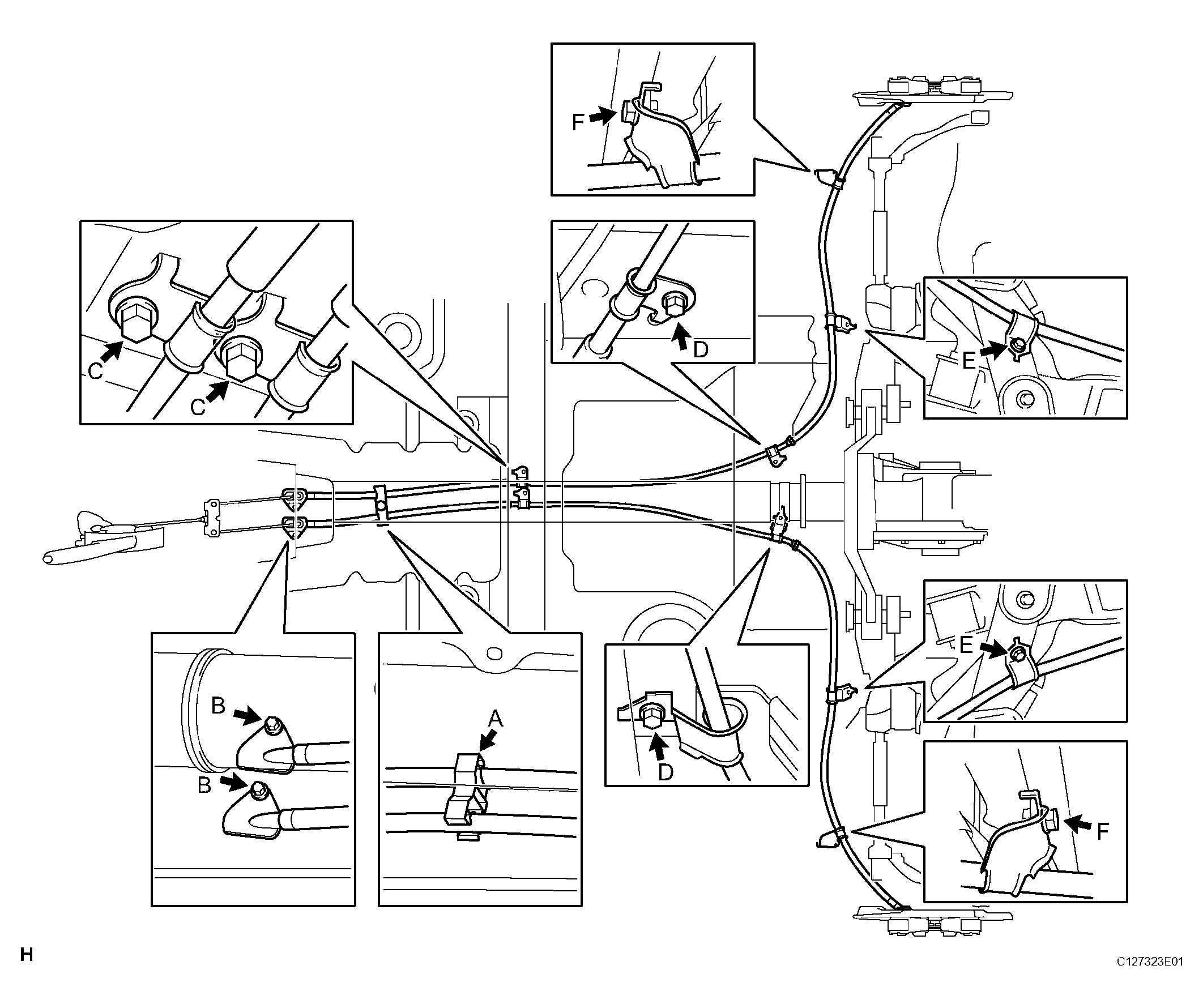

    Fig 1: Installing Parking Brake Cables
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the clamp and clamp bolt (labeled F) to the trailing arm.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  NOTE: Securely install the clamp.
3. Install the clamp and clamp bolt (labeled E) to the rear suspension crossmember.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  NOTE: Securely install the clamp.
4. Install the clamp and clamp bolt (labeled D) to the crossmember.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  NOTE: Securely install the clamp.
5. Install the clamp and clamp bolt (labeled C) to the body.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  NOTE: Securely install the clamp.
6. Install the casing cap and casing cap bolt (labeled B) to the body.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  NOTE: Securely install the casing cap.
7. Install the cable clamp (labeled A) to the body.
  NOTE: Securely install the clamp.
INSTALL PARKING BRAKE EQUALIZER
1. Connect the 3 cable ends to the equalizer.

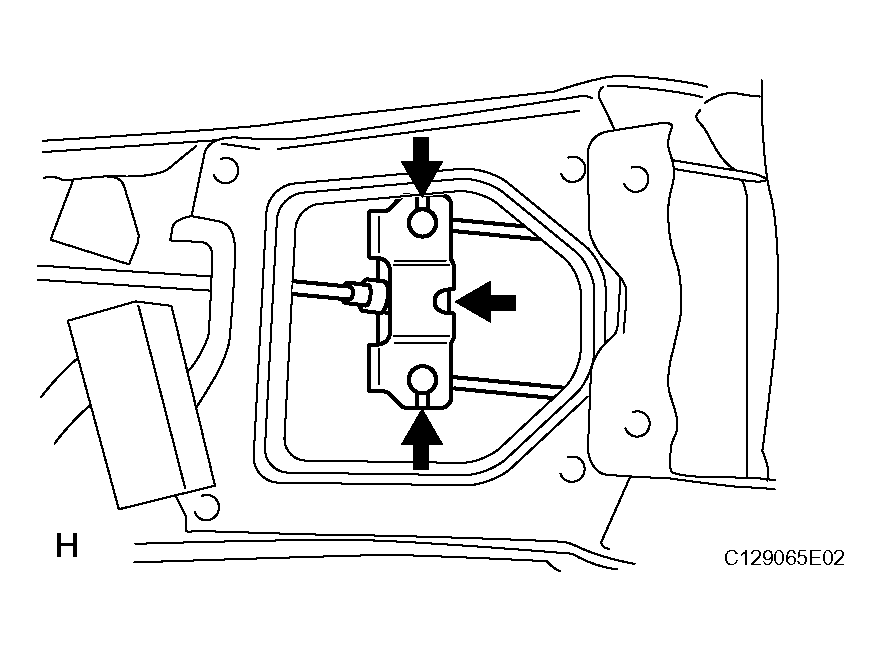

  Fig 2: Connecting Cable Ends To Equalizer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
ADJUST PARKING BRAKE LEVER TRAVEL (See ADJUSTMENT )
INSTALL REAR CONSOLE BOX SUB-ASSEMBLY
1. Install the rear console box (see step 9 under INSTALLATION ).
  HINT:

  Refer to the procedures from the installation of the rear console box sub-assembly up until the installation of the No. 1 console upper panel garnish.(See step 9 under INSTALLATION ).
