Curtain Shield Airbag Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it (see DATA LIST / ACTIVE TEST ).

Fig 1: Identifying Roof Side Rail Bracket LH Bolts

INSTALL ROOF SIDE RAIL BRACKET LH
1. Install the bracket with the 2 bolts.
  Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)
Fig 2: Identifying Roof Side Rail Bracket LH Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CURTAIN SHIELD AIRBAG ASSEMBLY LH

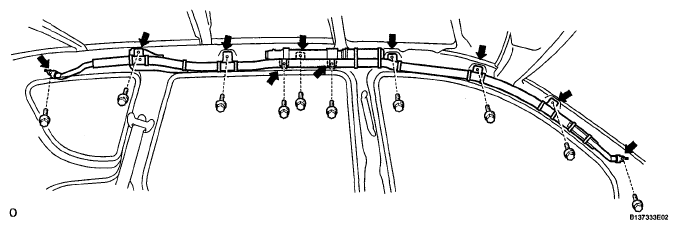

Fig 3: Identifying Curtain Shield Airbag Assembly LH Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Install the curtain shield airbag with the 10 bolts.
  Torque: 14 N*m (143 kgf*cm, 10 ft.*lbf)

  NOTE: Do not twist the curtain shield airbag when installing it.
2. Connect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
INSTALL ROOF HEADLINING ASSEMBLY (see INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see PROBLEM SYMPTOMS TABLE ).
