Exhaust Pipe And Catalytic Converter: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE HEATED OXYGEN SENSOR (for Sensor 2) (See  REMOVAL  )
  3. REMOVE TAILPIPE ASSEMBLY
    1. Remove the 2 bolts and 2 compression springs.
    2. Disconnect the 2 exhaust pipe supports and remove the tailpipe.
    3. Remove the gasket from the center exhaust pipe.

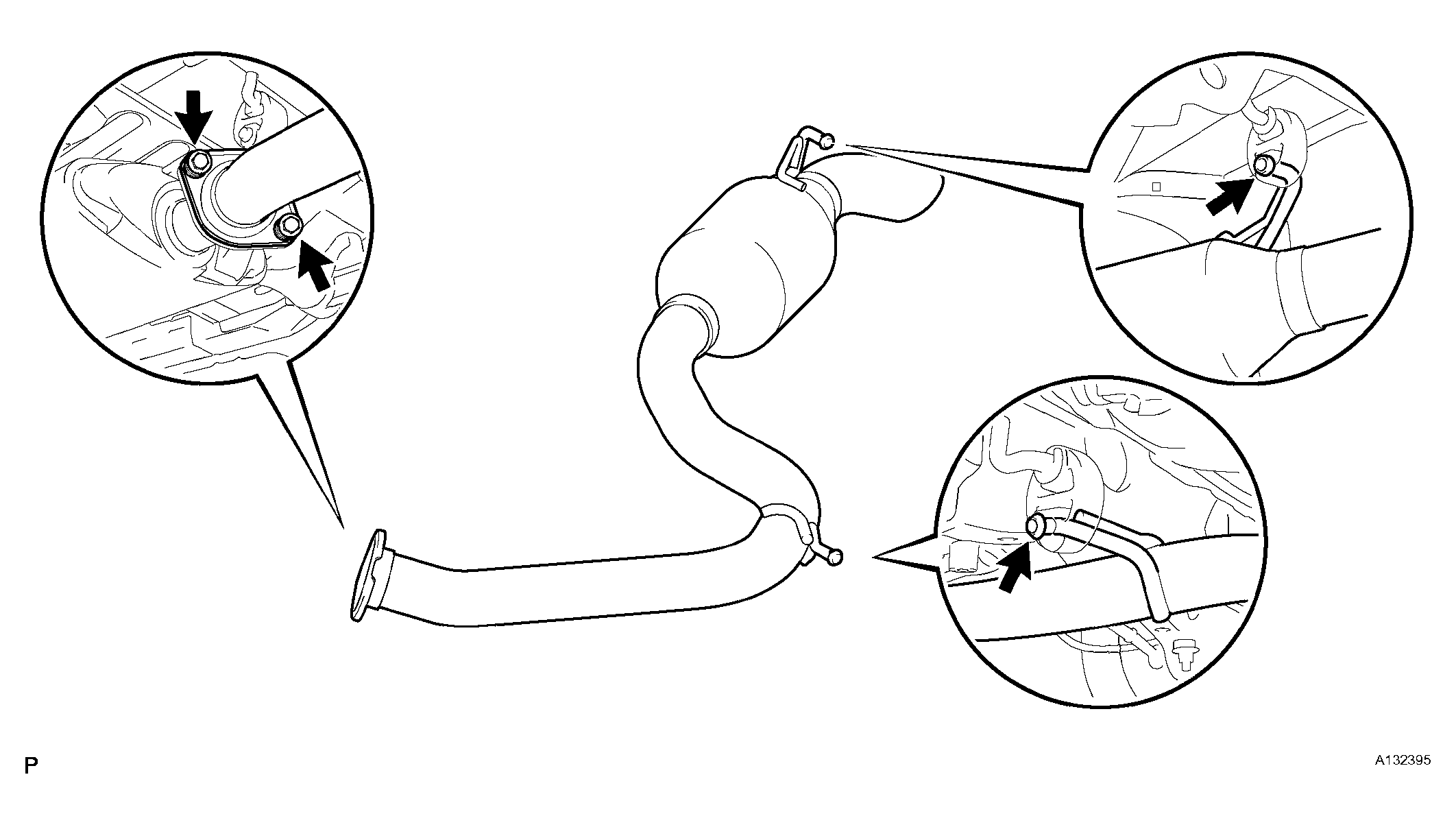

      Fig 1: Removing Tailpipe Assembly
      G04485738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CENTER EXHAUST PIPE ASSEMBLY
    1. Remove the 2 bolts and 2 nuts.
    2. Disconnect the 3 exhaust pipe supports and remove the center exhaust pipe.
    3. Remove the 2 gaskets.

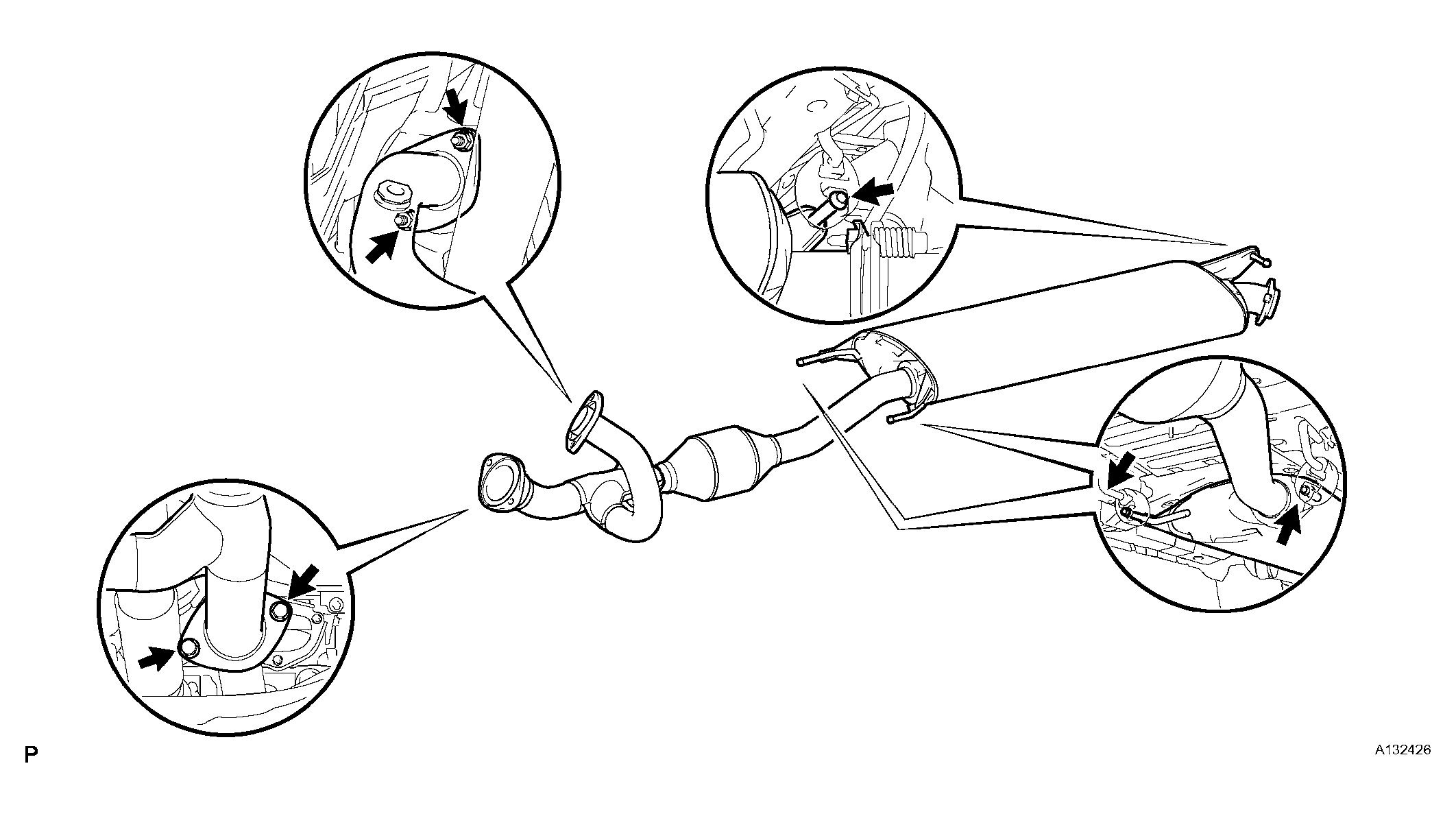

      Fig 2: Removing Center Exhaust Pipe Assembly
      G04485739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 1 FRONT EXHAUST PIPE SUPPORT BRACKET
    1. Remove the 2 bolts and No. 1 front exhaust pipe support bracket.
  6. REMOVE FRONT EXHAUST PIPE ASSEMBLY
    1. Remove the 2 nuts and front exhaust pipe.
    2. Remove the gasket from the exhaust manifold.

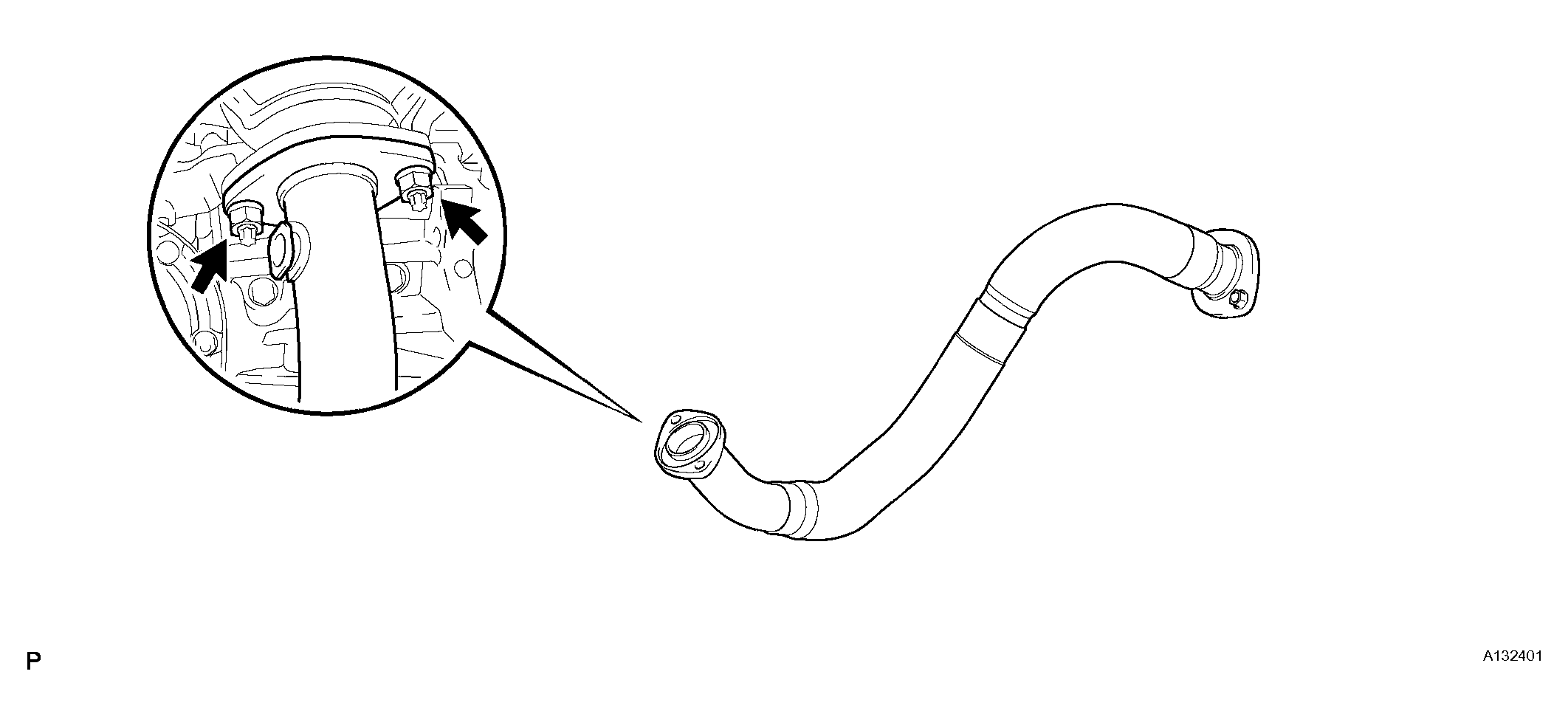

      Fig 3: Removing Front Exhaust Pipe Assembly
      G04485740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
