Washer Motor: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
REMOVE WASHER INLET SUB-ASSEMBLY
1. Remove the clip.

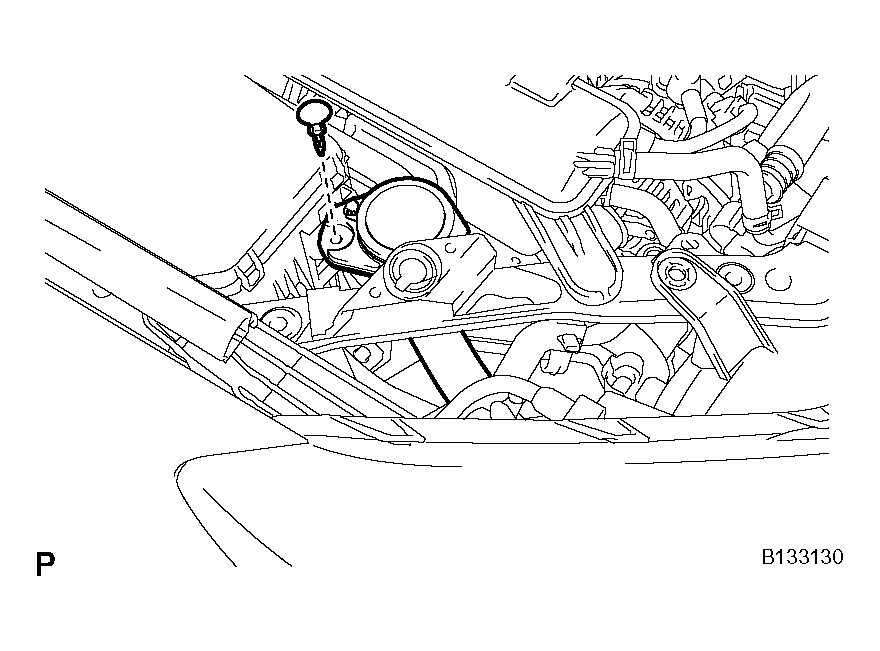

  Fig 1: Removing Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull the washer inlet of the washer jar and pump upward. Then remove it from the windshield washer jar and pump.
REMOVE FRONT FENDER LINER LH (See appropriate step(s) under REMOVAL )
REMOVE FRONT FENDER LINER RH (See appropriate step(s) under REMOVAL )
REMOVE RADIATOR SUPPORT OPENING COVER (See appropriate step(s) under REMOVAL )
REMOVE FRONT BUMPER COVER (See appropriate step(s) under REMOVAL )
DRAIN WASHER FLUID
1. Remove the washer hoses from the windshield washer motor and pump assembly, and drain the washer fluid into a container.

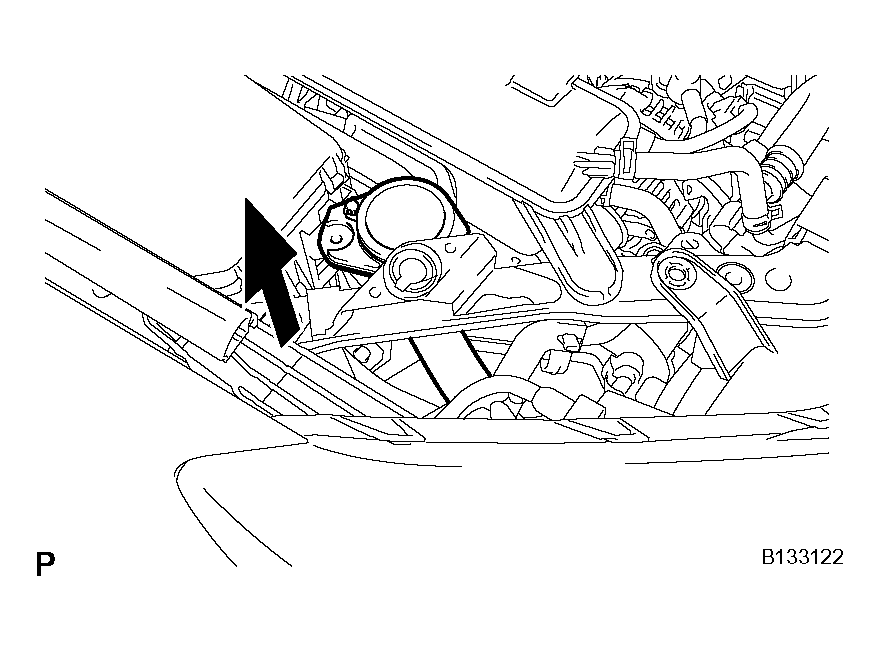

  Fig 2: Removing Washer Inlet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WASHER JAR ASSEMBLY
1. Disconnect the connectors.
2. Remove the 3 bolts. Then remove the washer jar and pump.

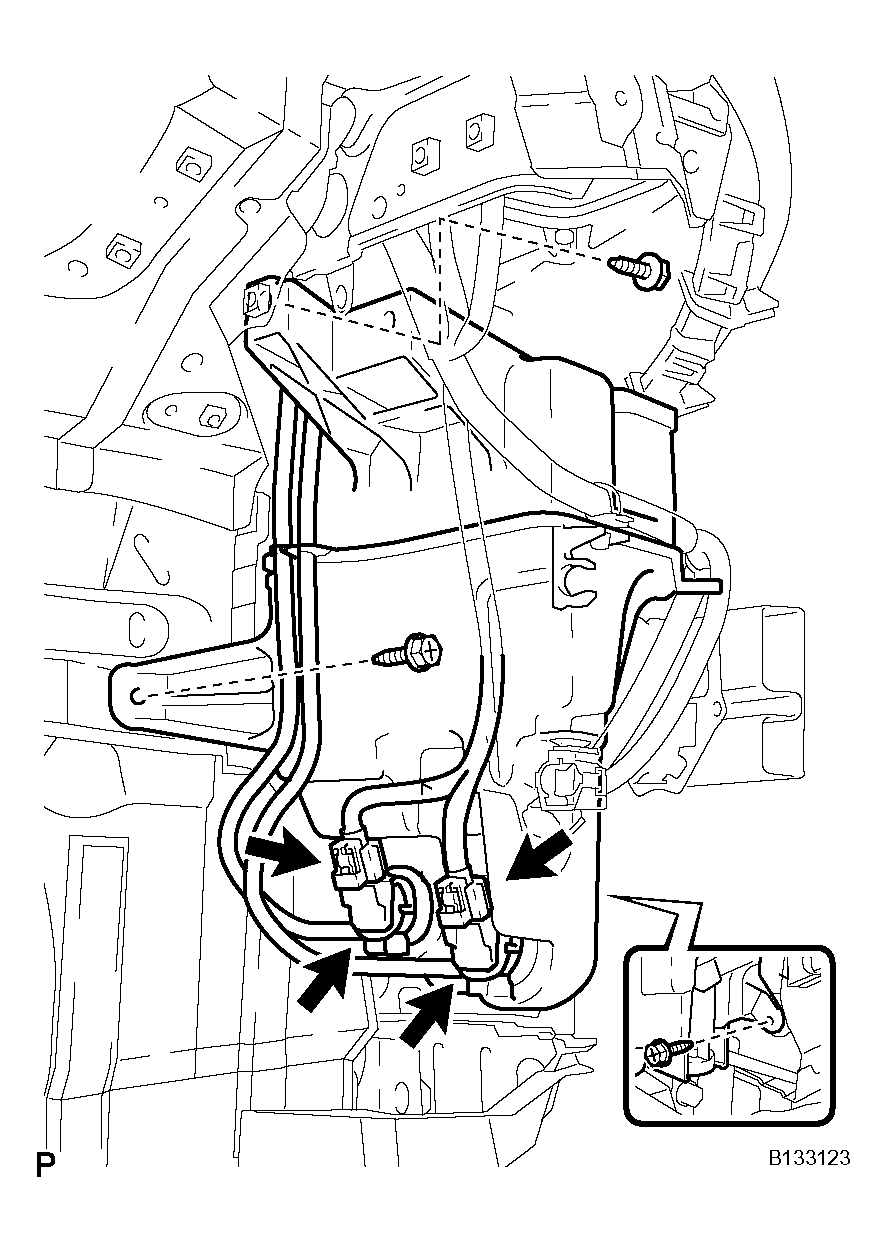

  Fig 3: Removing Windshield Washer Jar Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
1. Pull out the washer motor and pump from the packing of the washer jar.

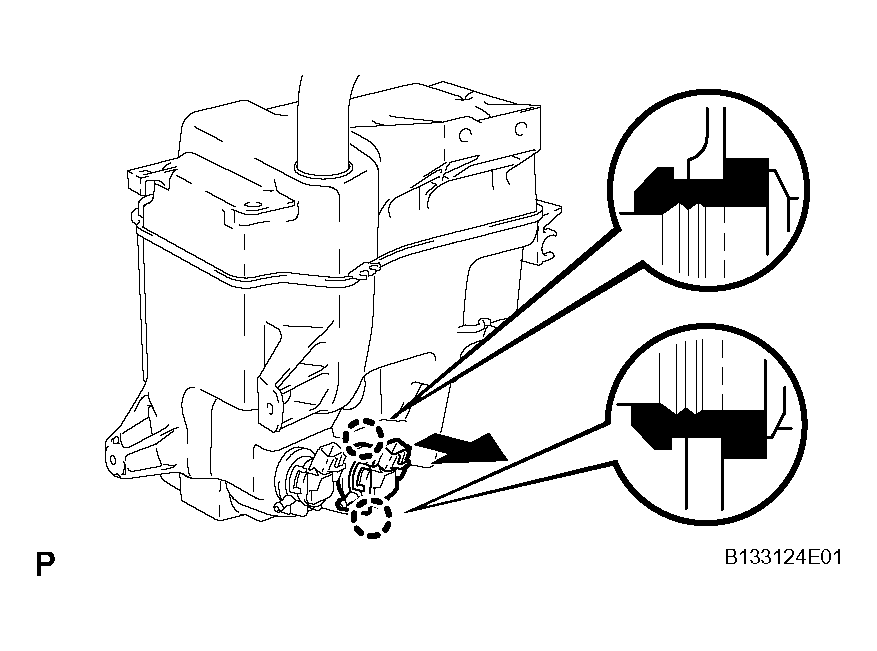

  Fig 4: Removing Windshield Washer Motor And Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR WASHER MOTOR AND PUMP ASSEMBLY
1. Pull out the washer motor and pump from the packing of the washer jar.

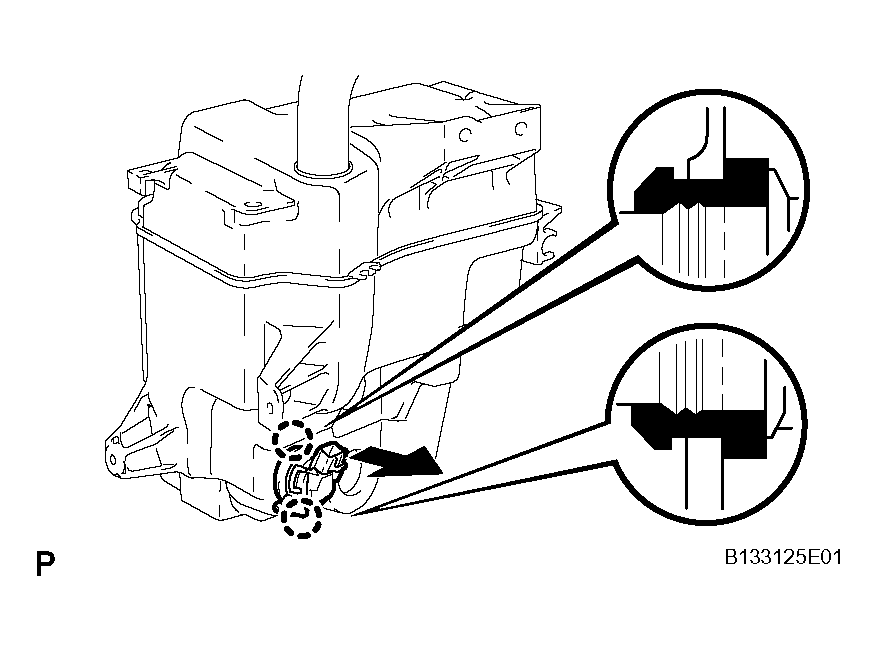

  Fig 5: Removing Rear Washer Motor And Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
