Washer Motor: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR WASHER MOTOR AND PUMP ASSEMBLY
1. Install the windshield washer motor and pump to the packing of the washer jar.

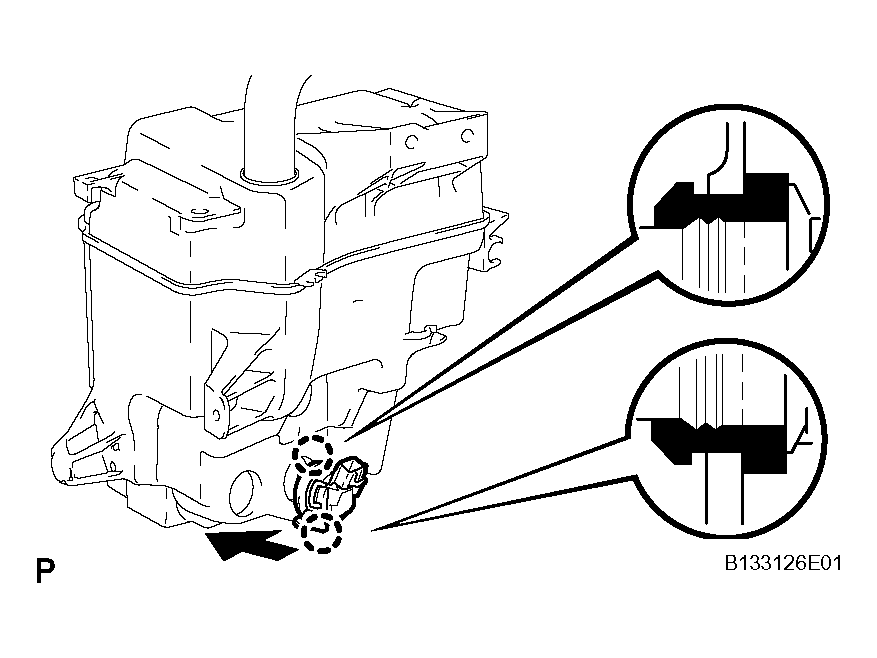

  Fig 1: Installing Rear Washer Motor And Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
1. Install the windshield washer motor and pump to the packing of the washer jar.

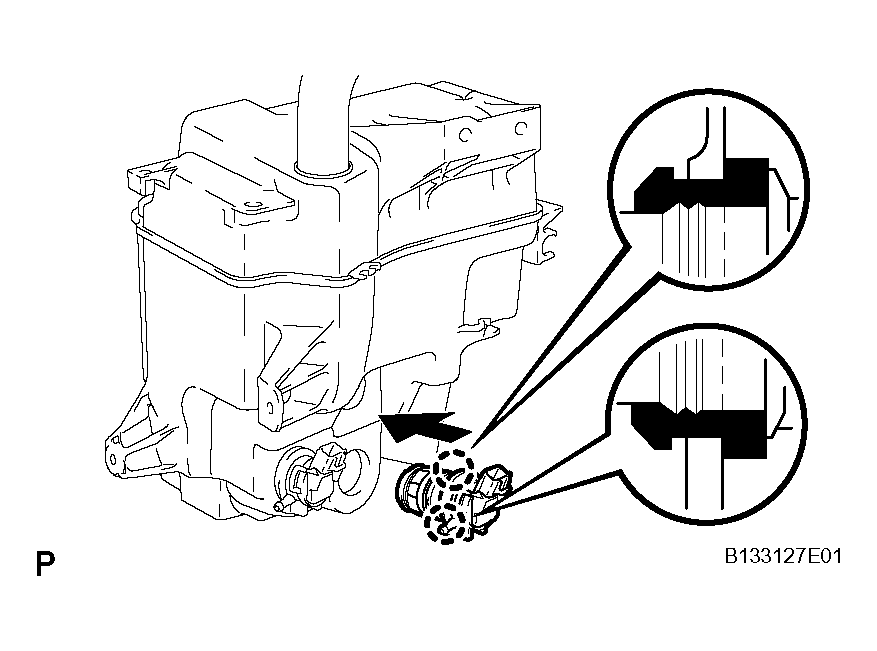

  Fig 2: Installing Windshield Washer Motor And Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

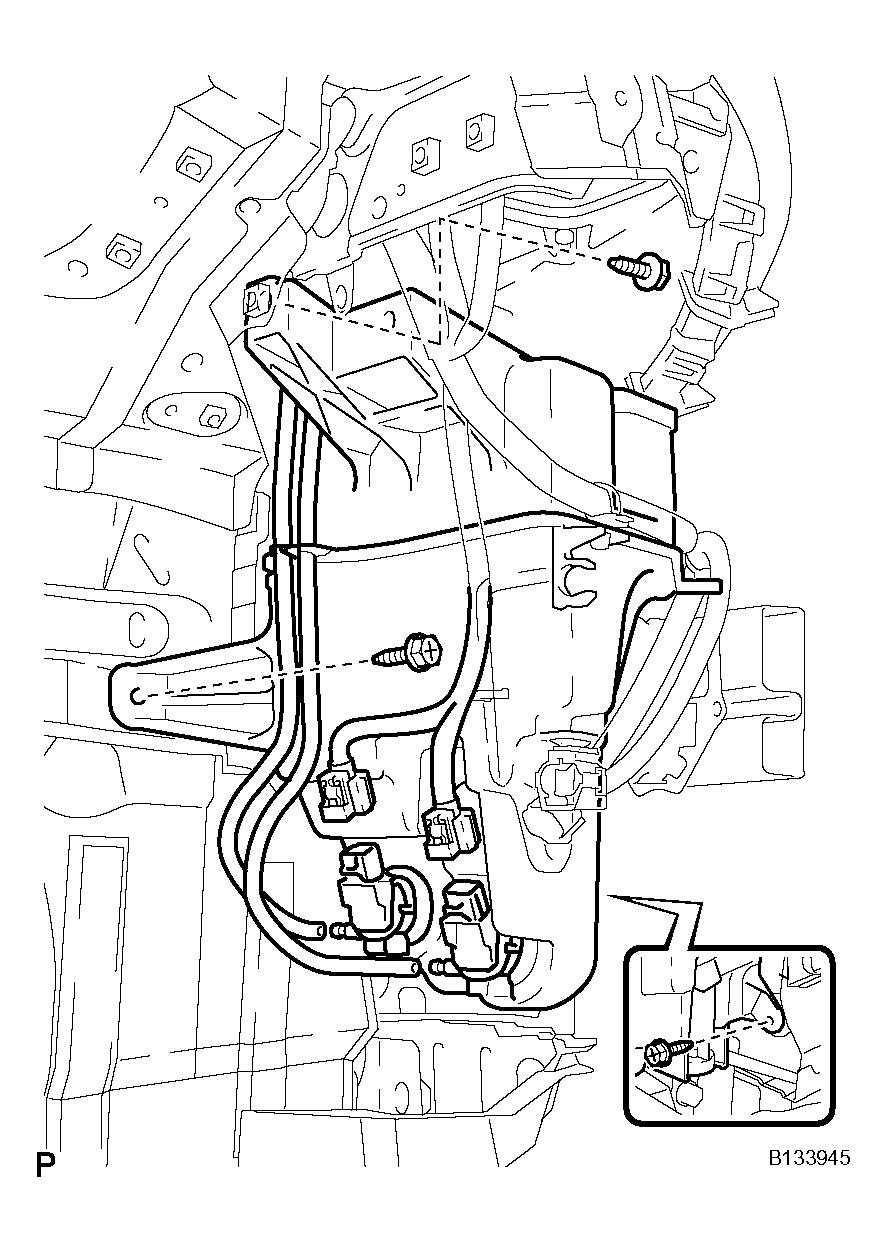

INSTALL WINDSHIELD WASHER JAR ASSEMBLY
1. Install the windshield washer jar and pump with the 3 bolts.
2. Connect the connectors.
FILL UP WASHER JAR AND PUMP ASSEMBLY WITH WASHER FLUID
1. Connect the washer hoses to the washer motor and pump, and fill the washer jar with washer fluid.
INSTALL FRONT BUMPER COVER (See appropriate step(s) under INSTALLATION )
INSTALL RADIATOR SUPPORT OPENING COVER (See appropriate step(s) under INSTALLATION )
INSTALL FRONT FENDER LINER LH (See appropriate step(s) under INSTALLATION )
INSTALL FRONT FENDER LINER RH (See appropriate step(s) under INSTALLATION )
INSTALL WASHER INLET SUB-ASSEMBLY
1. Install the washer inlet of the washer jar and pump to the windshield washer jar and pump.

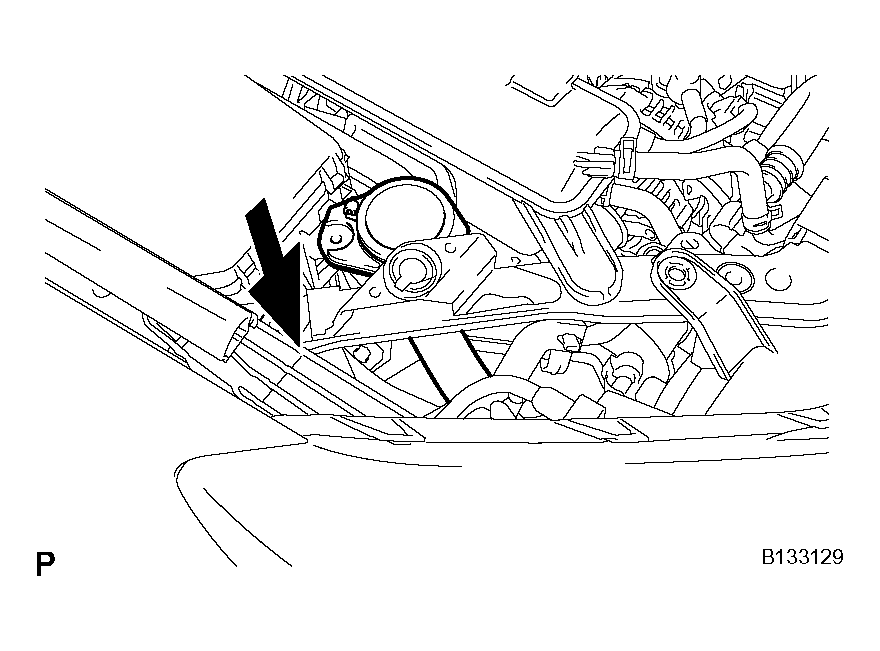

  Fig 4: Installing Washer Inlet Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the washer inlet of the washer jar and pump with the clip.

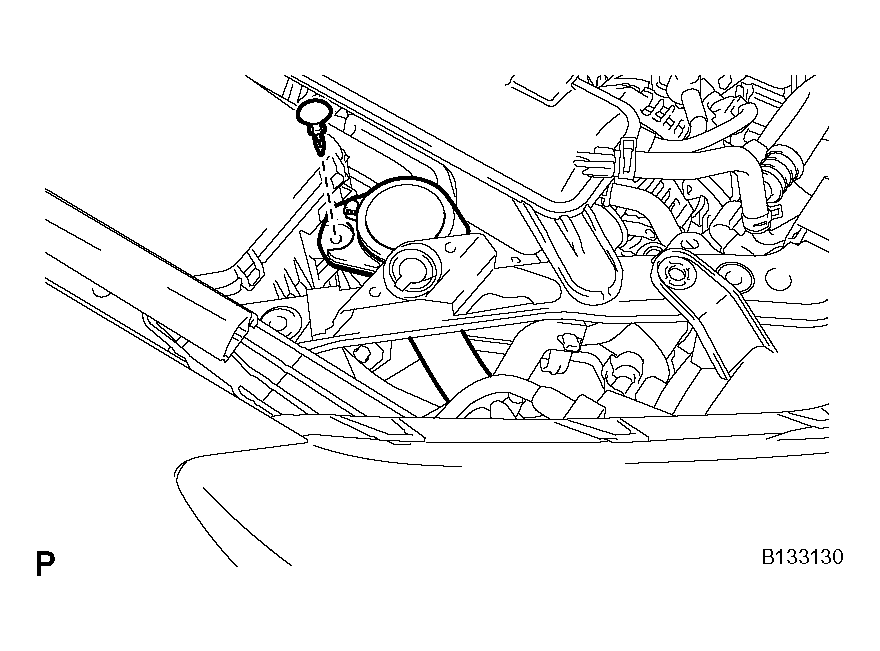

  Fig 5: Installing Washer Inlet Of Washer Jar And Pump With Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
