Front Bumper: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

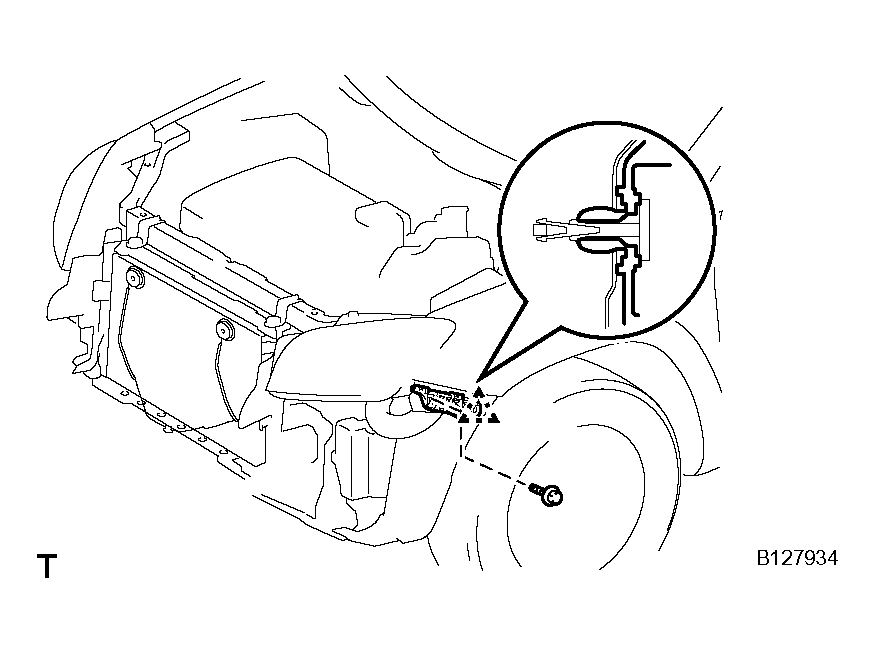

INSTALL FRONT BUMPER SIDE RETAINER LH
1. Install the clip and bumper side retainer.
2. Install the bolt.
  Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

  Fig 1: Installing Clip And Bumper Side Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER SIDE RETAINER RH
HINT:

Use the same procedures described for the LH side.

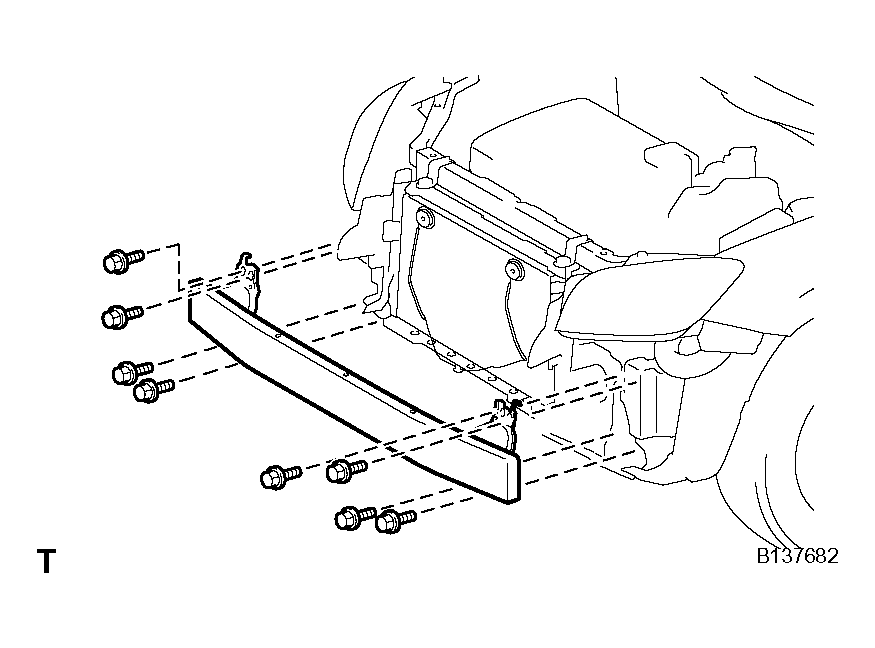

INSTALL FRONT BUMPER REINFORCEMENT
1. Install the reinforcement with the 8 bolts.
  Torque: 70 N*m (713 kgf*cm, 51 ft.*lbf)

  Fig 2: Installing Reinforcement With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the wire harness and attach the 5 claws.

  Fig 3: Installing Wire Harness And Attaching Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER RETAINER
1. Install the bolt with the retainer.

  Fig 4: Installing Bolt With Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 FRONT BUMPER ENERGY ABSORBER
1. Install the absorber.

  Fig 5: Installing No. 2 Front Bumper Energy Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT BUMPER COVER
1. Put protective tape under the front fender and headlight.
2. Install the 4 clips.

  Fig 6: Installing Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the hood cushion center.

  Fig 7: Installing Hood Cushion Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. w/Fog Light:
  Connect the 2 fog light connectors.

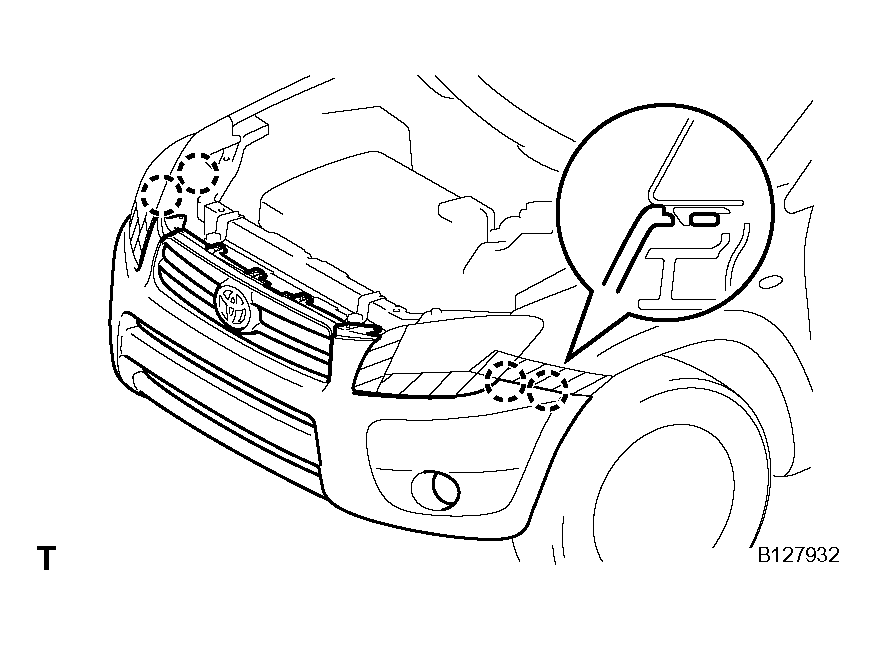

5. Attach the 4 claws to install the bumper cover.

  Fig 8: Attaching Claws To Installing Bumper Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

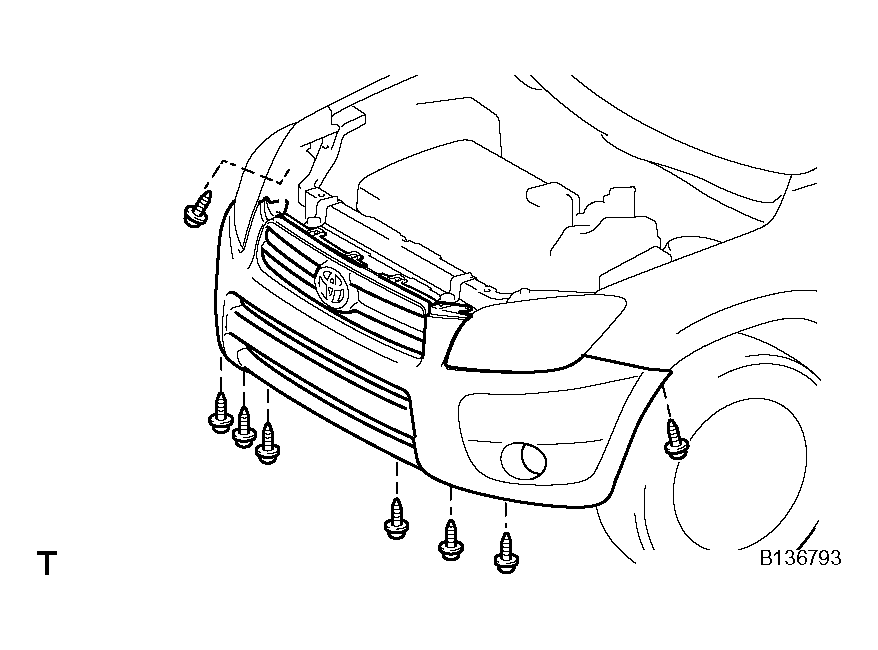

6. Install the 8 screws.

  Fig 9: Installing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR SUPPORT OPENING COVER
1. Install the 2 clips.

  Fig 10: Installing Radiator Support Opening Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RADIATOR GRILLE PROTECTOR
1. Install the 2 radiator grille protectors.

  Fig 11: Installing Radiator Grille Protectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FENDER LINER LH
1. Install the fender liner with the fender liner retainer.
2. w/Splash Shield:
  Install the front fender splash shield LH.

  Fig 12: Installing Front Fender Splash Shield LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the screw, nut and bolt.
INSTALL FRONT FENDER LINER RH
HINT:

Use the same procedures described for the LH side.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
