Rear Seat Outer Belt Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the LH side and RH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).
Refer to appropriate step(s) under "Reassembly and Installation".

INSTALL REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
1. Align the claws with the seat belt positioning holes, and install the retractor of the seat belt with the 2 bolts as shown in the illustration.
  Torque:

  8.5 N*m (87 kgf*cm, 75 in.*lbf) for upper bolt

  42 N*m (428 kgf*cm, 31 ft.*lbf) for lower bolt

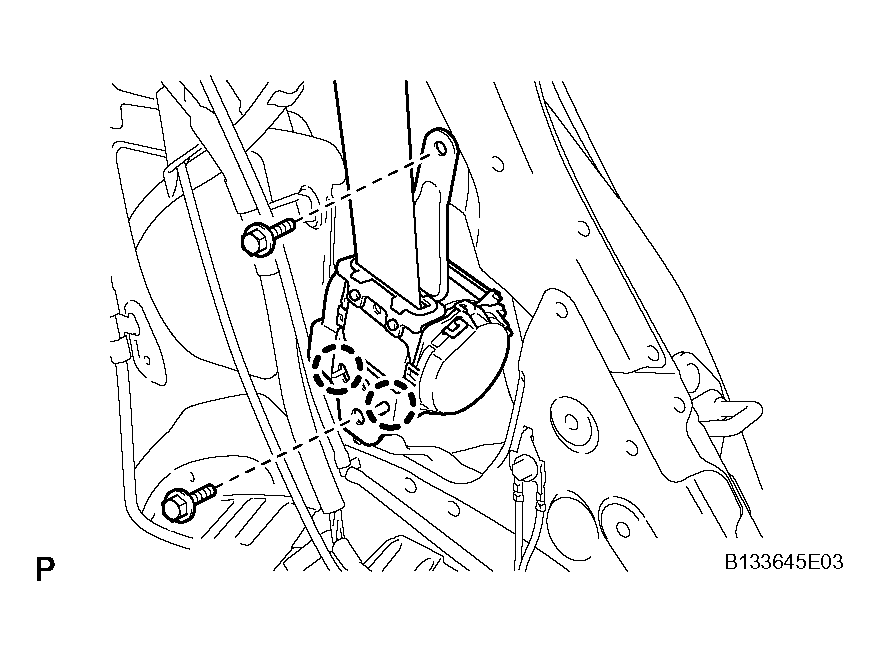

  Fig 1: Installing Rear No. 1 Seat Outer Belt Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the shoulder anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 2: Connecting Shoulder Anchor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INNER ROOF SIDE GARNISH ASSEMBLY LH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (w/Rear No. 2 Seat)
1. Align the claws with the seat belt positioning holes and install the retractor of the seat belt with the 2 bolts as shown in Fig 3.
  Torque:

  8.5 N*m (87 kgf*cm, 75 in.*lbf) for upper bolt

  42 N*m (428 kgf*cm, 31 ft.*lbf) for lower bolt

  Fig 3: Installing Rear No. 2 Seat Outer Belt Assembly LH (W/Rear No. 2 Seat)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the shoulder anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 4: Connecting Shoulder Anchor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Close the cover cap.
INSTALL INNER ROOF SIDE GARNISH ASSEMBLY LH (w/o Rear No. 2 Seat) (See INSTALLATION )
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (w/o Rear No. 2 Seat) (See INSTALLATION )
CONNECT REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH (w/Rear No. 2 Seat)
1. Connect the seat belt's floor anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)
2. Close the cover.

  Fig 5: Connecting Seat Belt's Floor Anchor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
1. Connect the seat belt's floor anchor with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  Fig 6: Connecting Seat Belt's Floor Anchor With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Attach the lap belt outer anchor cover.
INSTALL RECLINING REMOTE CONTROL LEVER BEZEL LH (w/o Rear No. 2 Seat)
INSTALL REAR FLOOR FINISH PLATE (See INSTALLATION )
INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE (See INSTALLATION )
INSTALL REAR FLOOR NO. 3 BOARD
INSTALL REAR FLOOR NO. 2 BOARD
INSTALL REAR NO. 2 SEAT ASSEMBLY LH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL REAR NO. 2 SEAT ASSEMBLY RH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL NO. 2 SEAT LEG COVER LH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL NO. 2 SEAT LEG COVER RH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL NO. 2 SEAT HINGE COVER LH (w/Rear No. 2 Seat) (See INSTALLATION )
REMOVE NO. 2 SEAT HINGE COVER RH (w/Rear No. 2 Seat) (See INSTALLATION )
INSTALL DECK BOARD ASSEMBLY (w/o Rear No. 2 Seat)
INSTALL REAR FLOOR NO. 1 BOARD (w/o Rear No. 2 Seat)
INSTALL TONNEAU COVER ASSEMBLY (w/o Rear No. 2 Seat)
INSTALL PACKAGE TRAY TRIM POCKET SUBASSEMBLY (w/o Rear No. 2 Seat)
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
INSTALL REAR DOOR SCUFF PLATE LH (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
