Rear Seat Inner Belt Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT: Refer to appropriate step(s) under "Reassembly and Installation".

  1. INSTALL REAR NO. 2 SEAT INNER BELT ASSEMBLY LH (w/Rear No. 2 Seat)
    1. Install the seat belt with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 1: Installing Rear No. 2 Seat Inner Belt Assembly LH (W/Rear No. 2 Seat)
      G04490583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR NO. 2 SEAT RECLINING COVER LH (w/Rear No. 2 Seat) (See  REASSEMBLY  )
  3. INSTALL REAR NO. 2 SEAT ASSEMBLY LH (w/Rear No. 2 Seat) (See  REASSEMBLY  )
  4. INSTALL NO. 2 SEAT LEG COVER (w/Rear No. 2 Seat) (See  INSTALLATION  )
  5. INSTALL NO. 2 SEAT HINGE COVER (w/Rear No. 2 Seat) (See  INSTALLATION  )
  6. INSTALL REAR SEAT INNER BELT ASSEMBLY RH (for 60/40 Split Seat Type RH Side)
    1. Install the belt with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

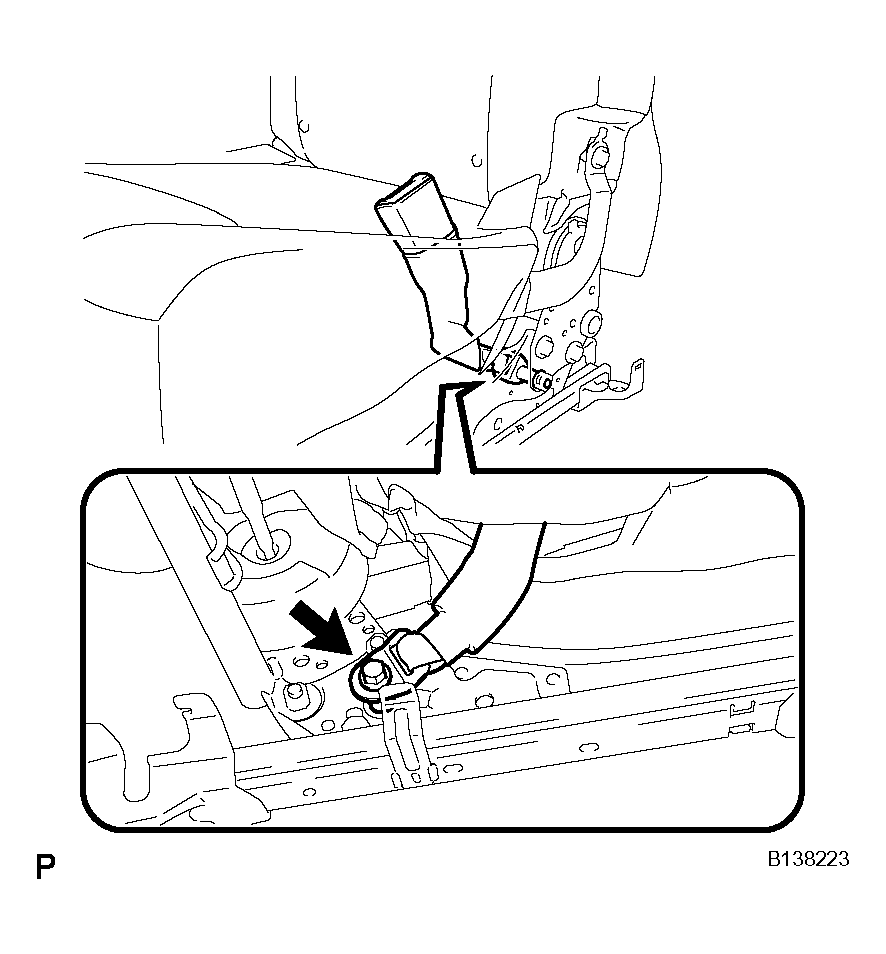

      Fig 2: Installing Rear Seat Inner Belt Assembly RH (For 60/40 Split Seat Type RH Side)
      G04490584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR NO. 1 SEAT ASSEMBLY RH (See  REASSEMBLY  )
  8. INSTALL REAR SEAT INNER BELT ASSEMBLY LH (for 60/40 Split Seat Type LH Side)
    1. Install the belt with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

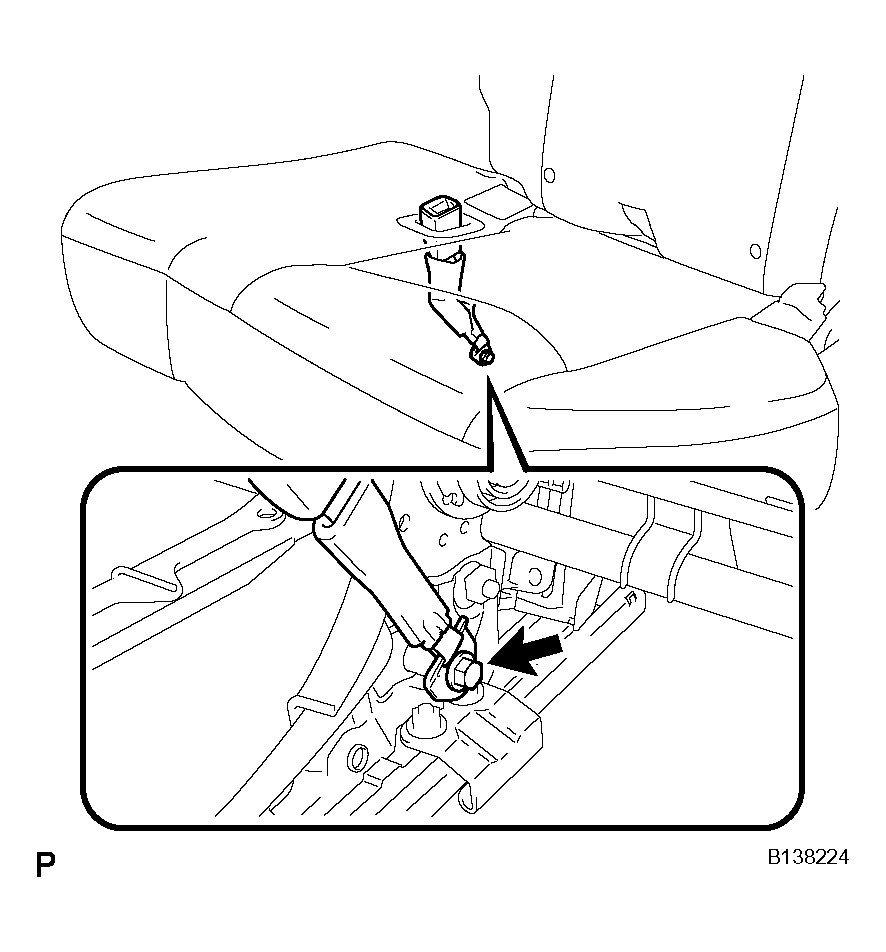

      Fig 3: Installing Rear Seat Inner Belt Assembly RH (For 60/40 Split Seat Type LH Side)
      G04490585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY CENTER LH
    1. Install the belt with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

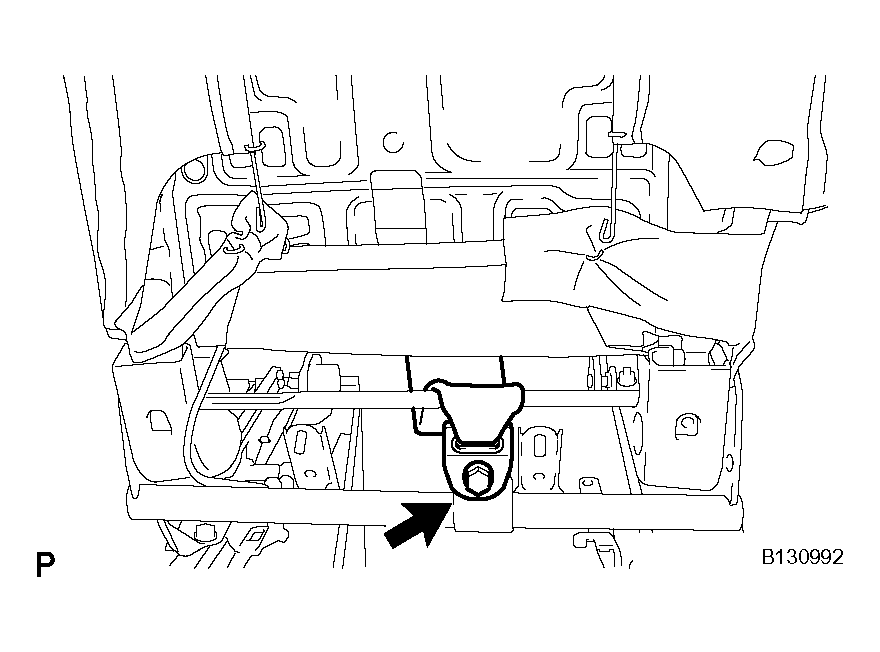

      Fig 4: Installing Rear Seat Lap Type Belt Assembly Center LH
      G04490586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL REAR SEAT REAR BRACKET COVER LH (See  REASSEMBLY  )
  11. INSTALL REAR NO. 1 SEAT ASSEMBLY LH (See  REASSEMBLY  )
  12. INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY CENTER RH (w/o Rear No. 2 Seat)
    1. Install the belt with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      NOTE: The anchor part of the seat belt must not overlap the protruding part.
      Fig 5: Installing Rear Seat Lap Type Belt Assembly Center RH (W/O Rear No. 2 Seat)
      G04490587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL REAR SEAT LAP TYPE BELT ASSEMBLY CENTER RH (w/Rear No. 2 Seat)
    1. Install the belt with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

      Fig 6: Installing Rear Seat Lap Type Belt Assembly Center RH (W/Rear No. 2 Seat)
      G04490588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: The anchor part of the seat belt must not overlap the protruding part.
  14. INSTALL REAR NO. 5 SEAT LEG SIDE COVER
  15. INSTALL REAR NO. 4 SEAT LEG SIDE COVER
  16. INSTALL REAR NO. 3 SEAT LEG SIDE COVER (w/Rear No. 2 Seat) (See  INSTALLATION  )
  17. INSTALL REAR NO. 3 SEAT LEG SIDE COVER (w/o Rear No. 2 Seat) (See  INSTALLATION  )
  18. INSTALL REAR NO. 2 SEAT LEG SIDE COVER
  19. INSTALL REAR SEAT LEG COVER
