Rear Trailing Arm: Removal

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE REAR WHEEL
DISCONNECT NO. 2 PARKING BRAKE CABLE ASSEMBLY (See REMOVAL )
REMOVE REAR TRAILING ARM ASSEMBLY LH
1. Remove the 3 bolts, nut and trailing arm from the axle carrier and suspension arm bracket.
  HINT:

  While fixing the nut in place, loosen and remove the bolt.

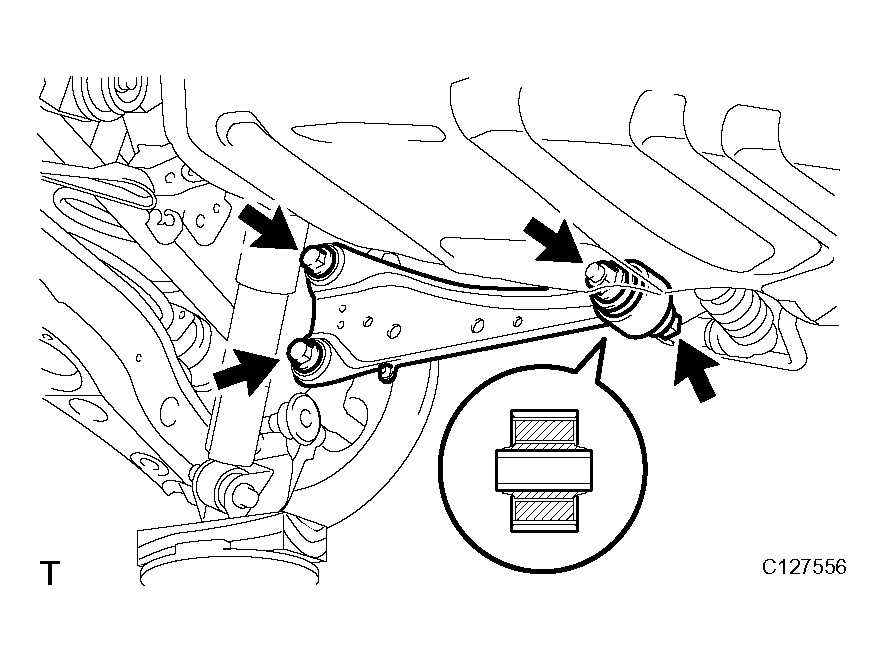

  Fig 1: Removing Rear Trailing Arm Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
