Air Conditioning Unit: Installation

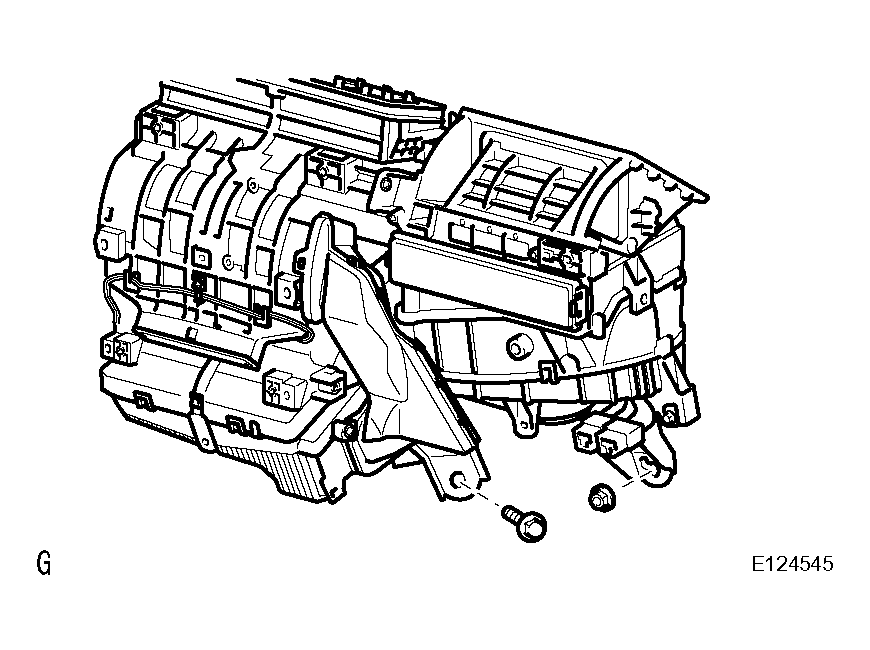

1. Install the A/C unit with the bolt and nut.

   Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

   Fig 1: Installing Air Conditioner Unit Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

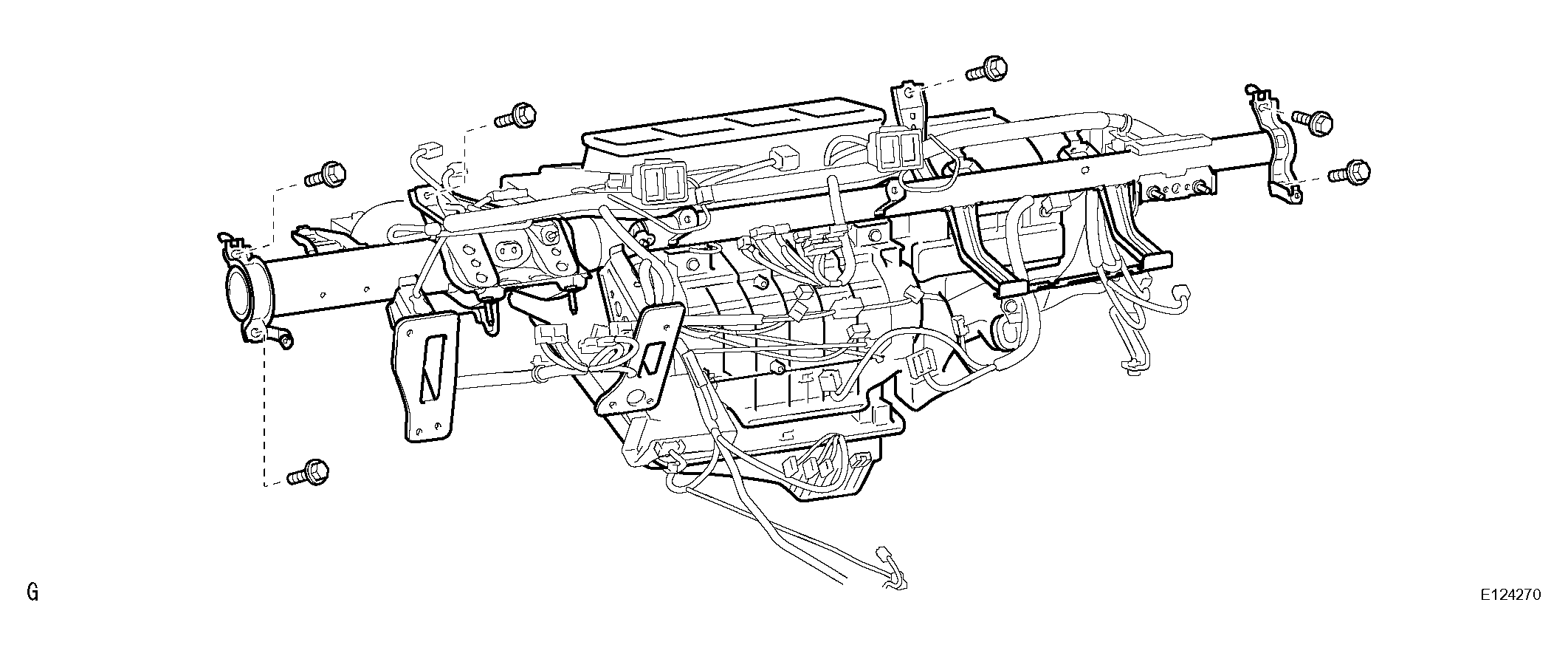

1. Install the instrument panel reinforcement with the 6 bolts.

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   Fig 2: Installing Instrument Panel Reinforcement

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

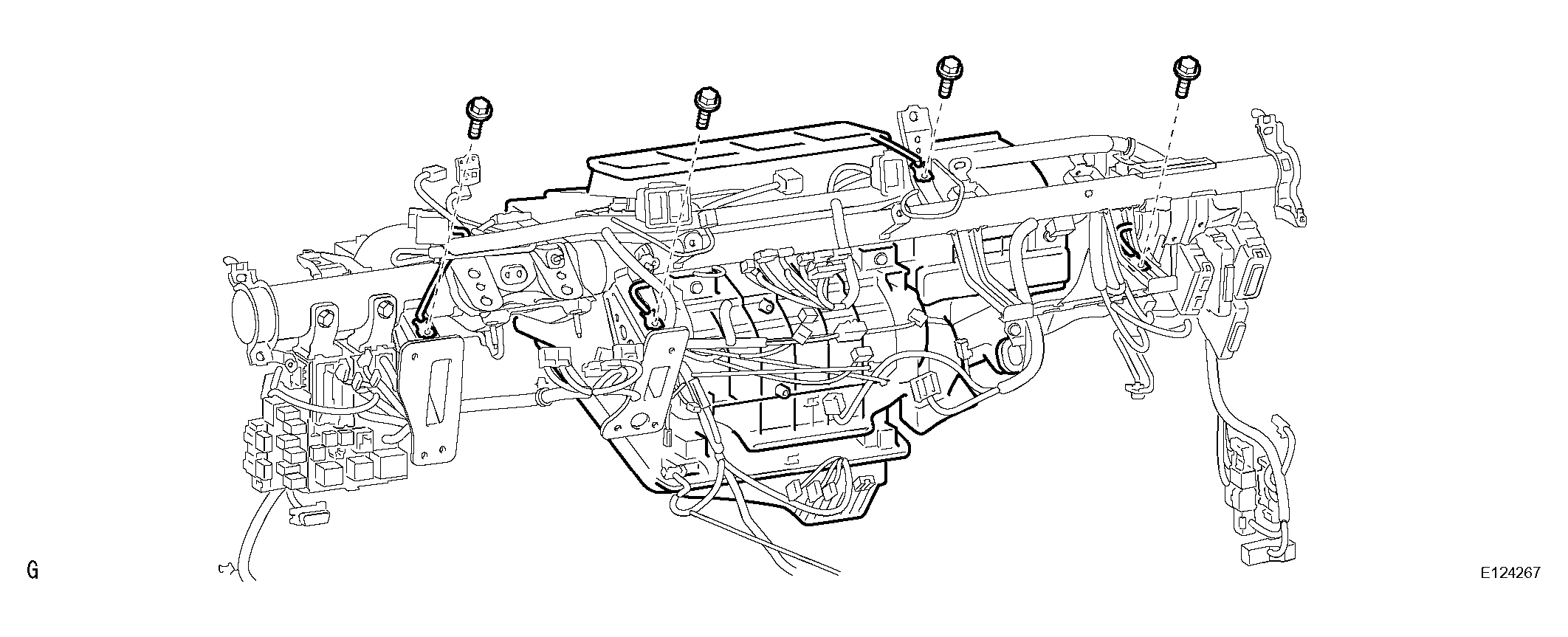

2. Install the 3 bolts.

   Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

   Fig 3: Installing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

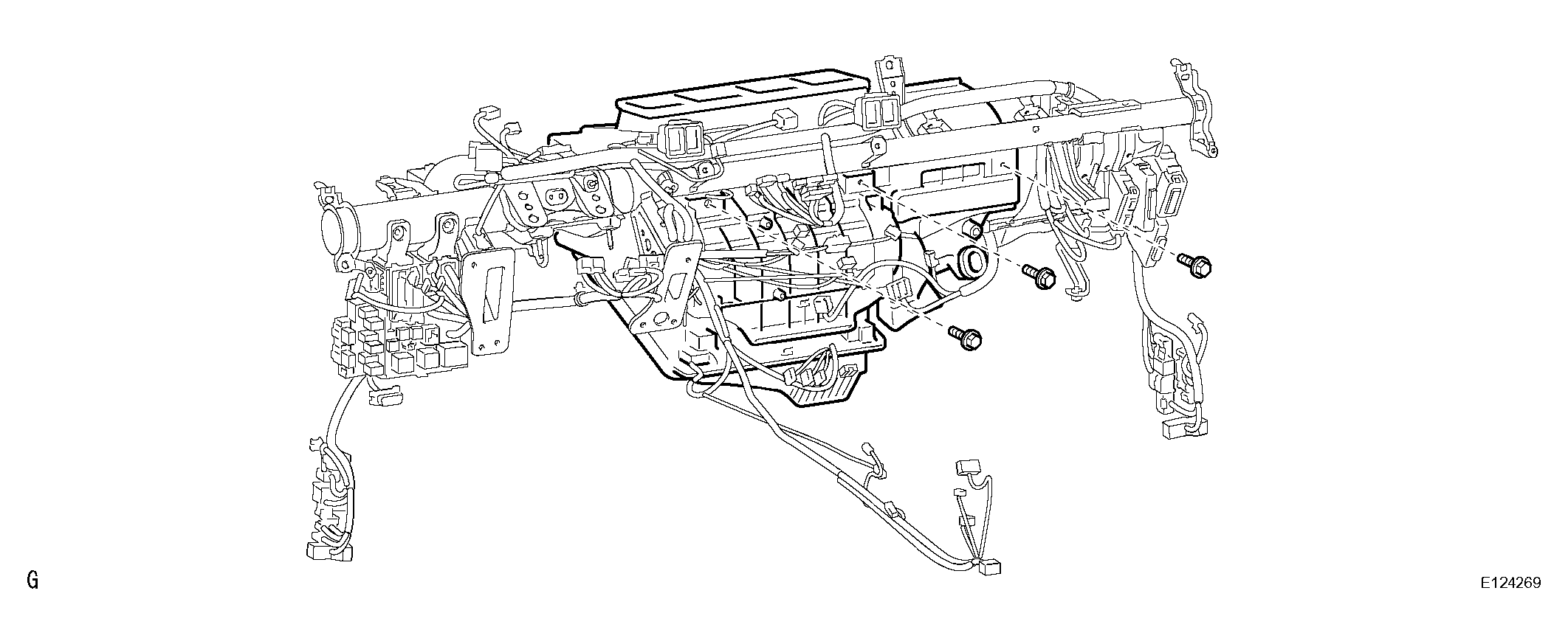

3. Install the 4 bolts and connect the ground wire.
   Fig 4: Connecting Ground Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

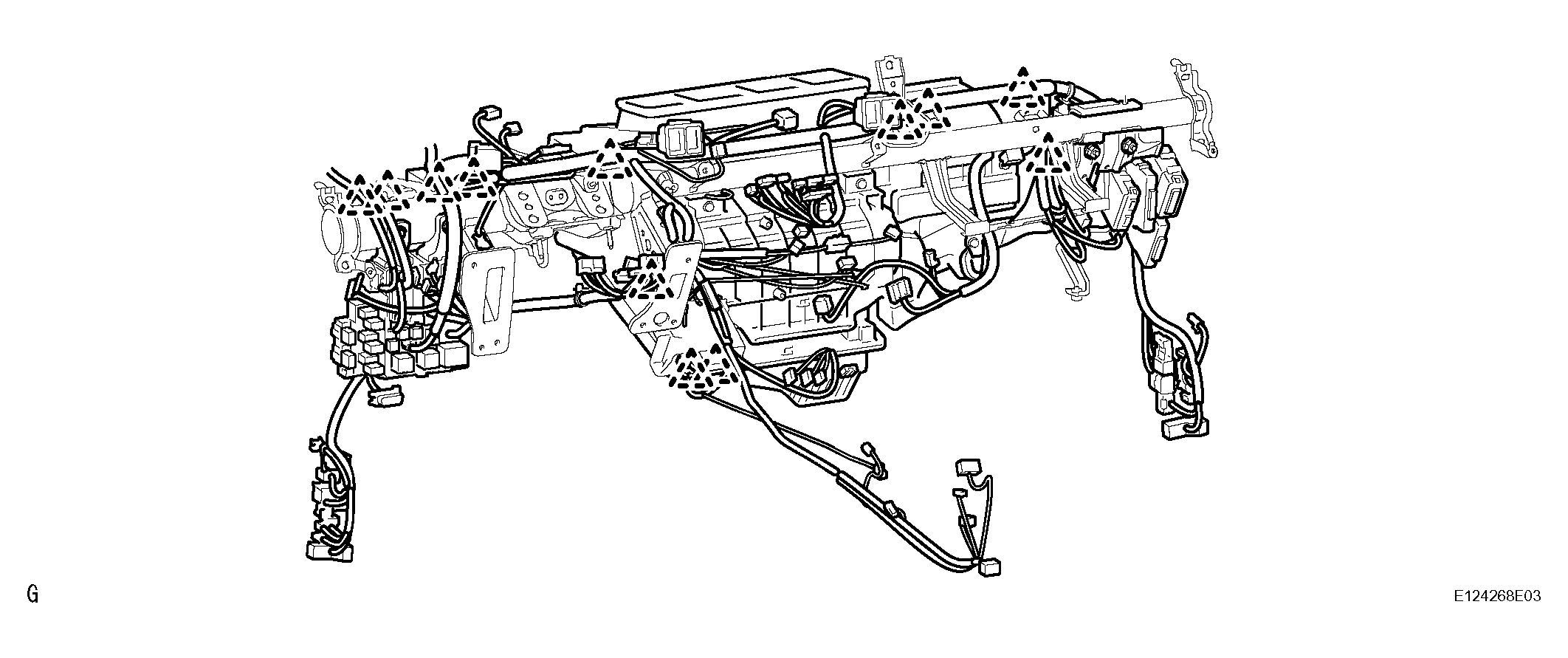

4. Attach the 12 clamps.
   Fig 5: Attaching Clamps

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the drain hose.
   Fig 6: Installing Drain Cooler Hose

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

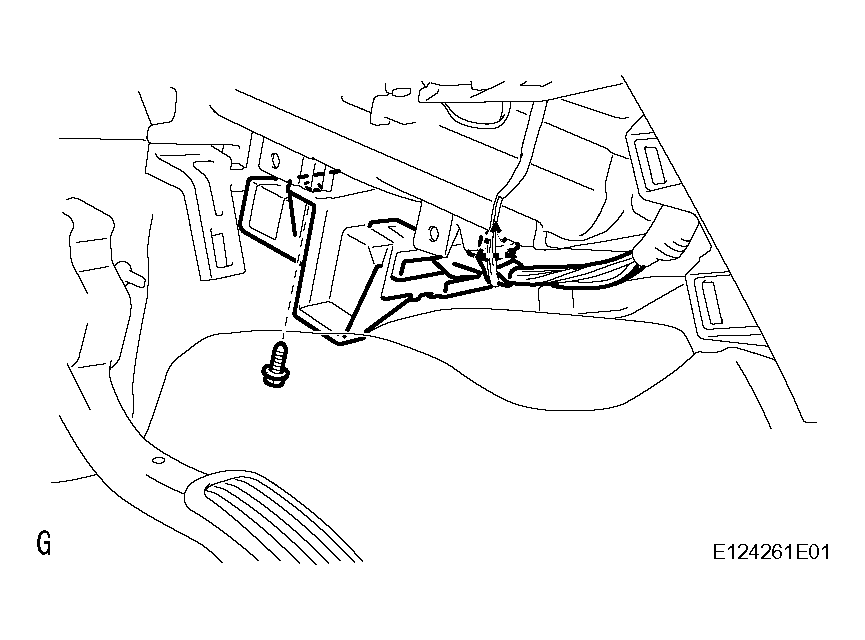

1. Install the A/C amplifier with the screw.
2. Connect the connector.
   Fig 7: Installing Air Conditioning Amplifier Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

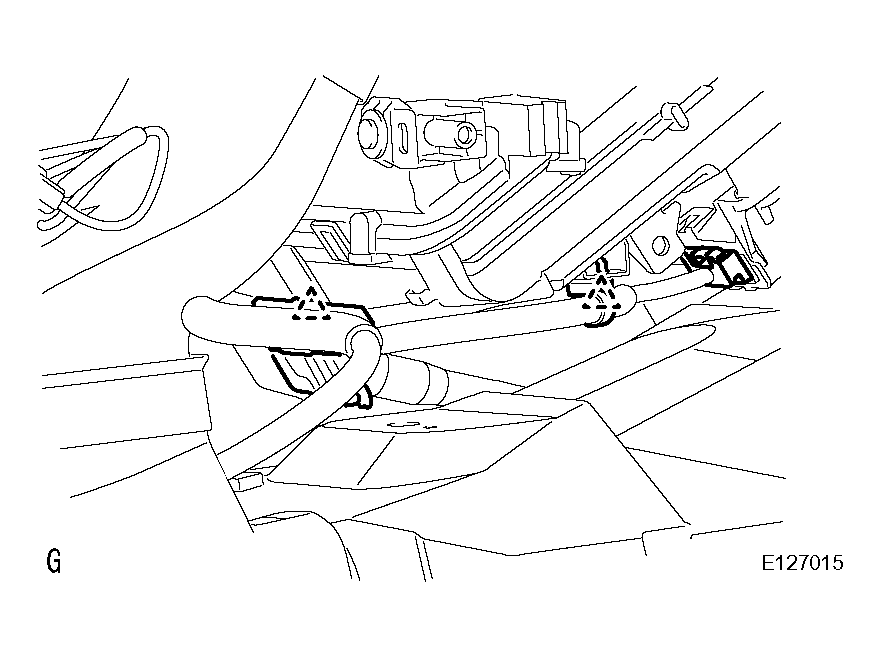

3. Attach the 2 clamps to the amplifier.
   Fig 8: Attaching Clamps To Amplifier

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

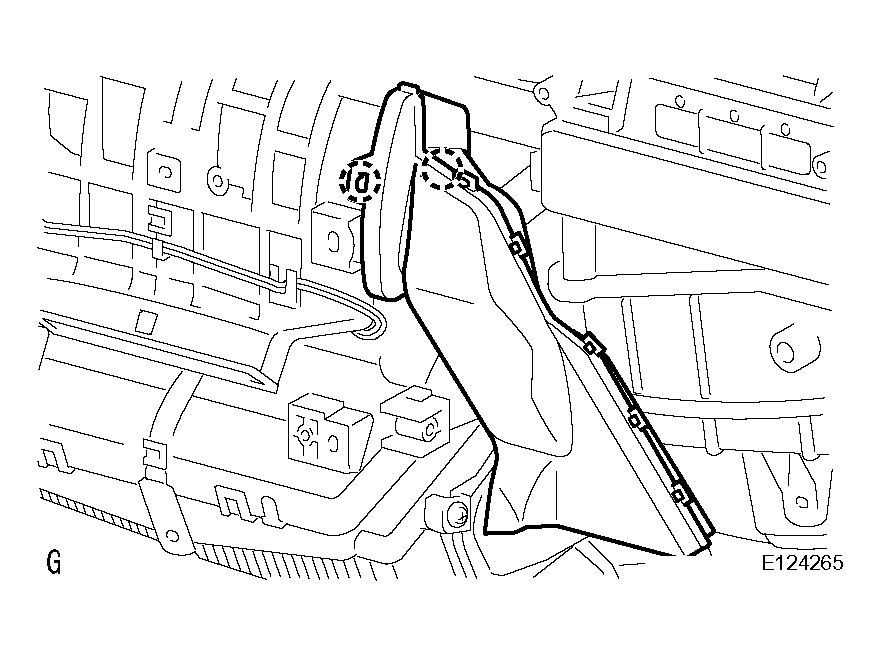

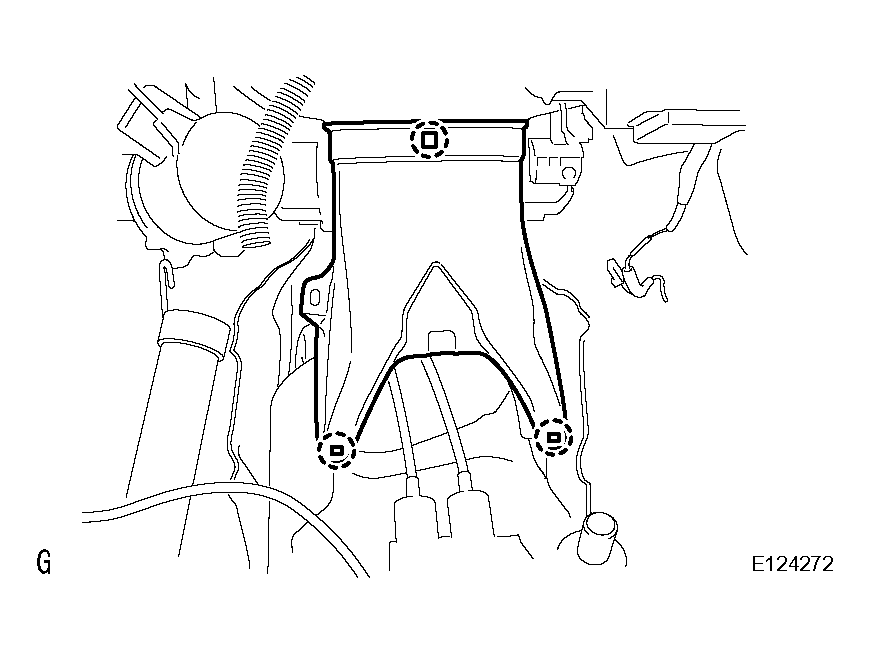

1. Attach the 2 claws and install the air duct.
   Fig 9: Installing Air Duct

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Attach the 3 claws and install the air duct rear.
   Fig 10: Installing Rear Air Duct

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

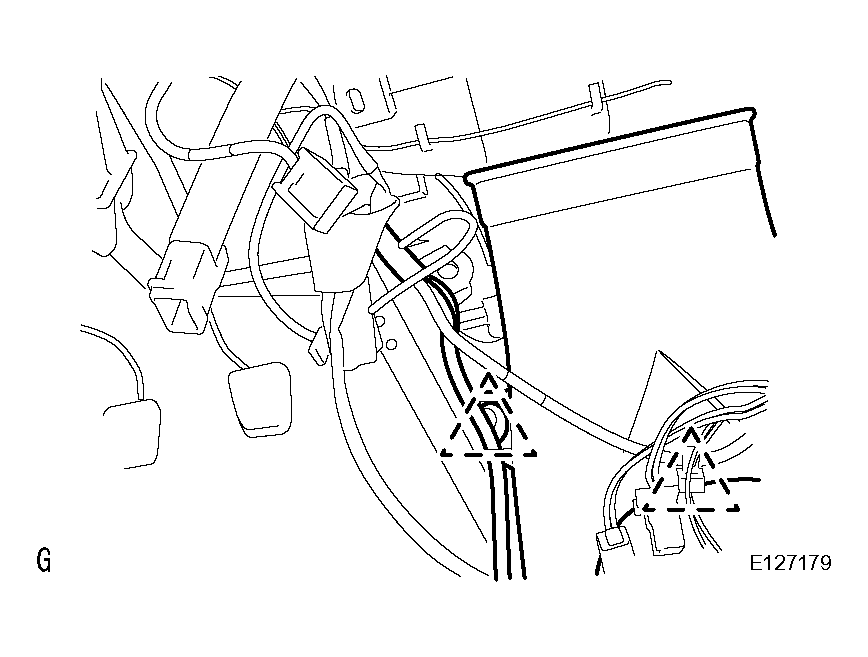

2. Attach the 2 clamps and install the wire harness.
   Fig 11: Installing Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

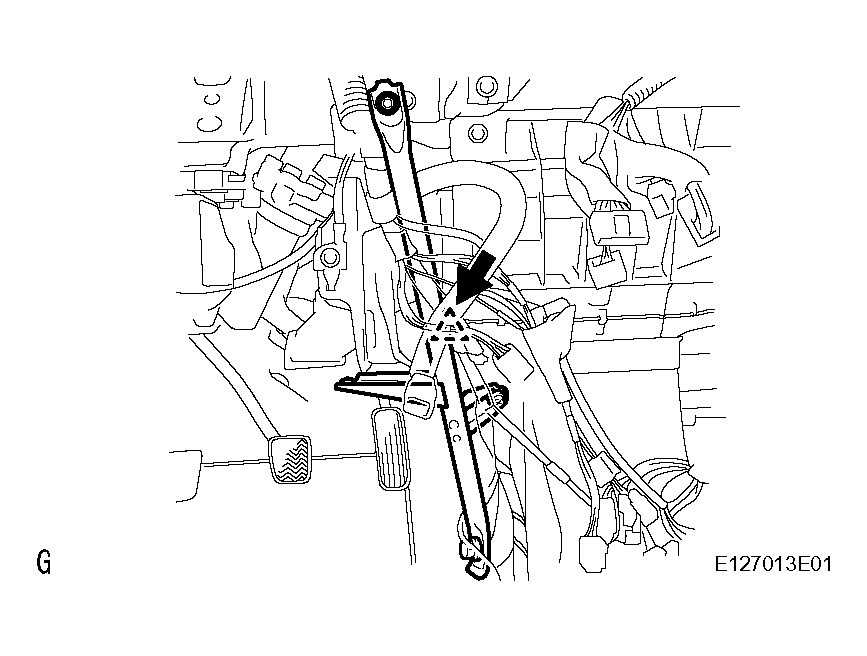

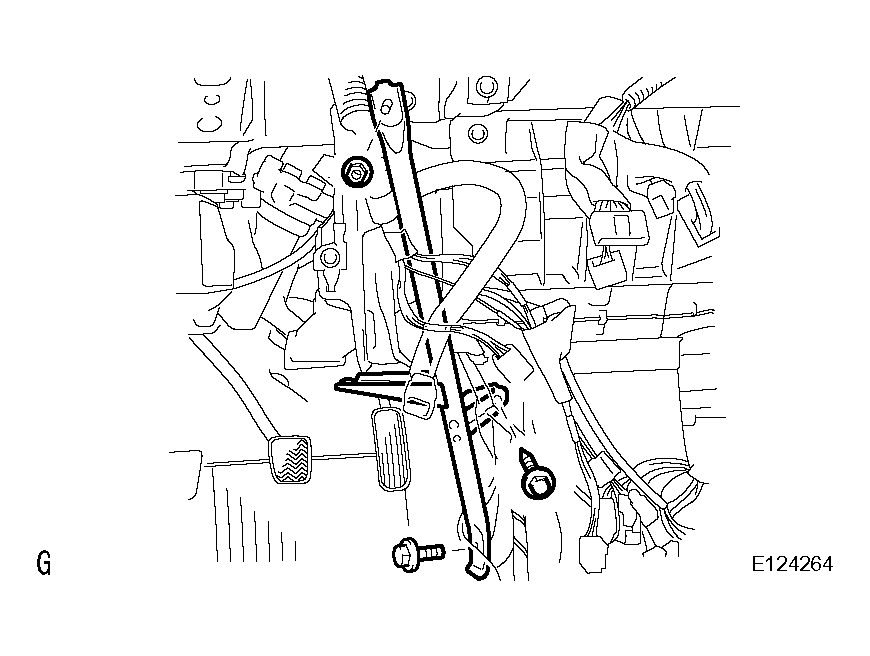

1. Install the instrument panel brace with the bolt, nut and screw.
   Fig 12: Installing Instrument Panel Brace

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the clamp and connect the wire harness.
   Fig 13: Connecting Wire Harness

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

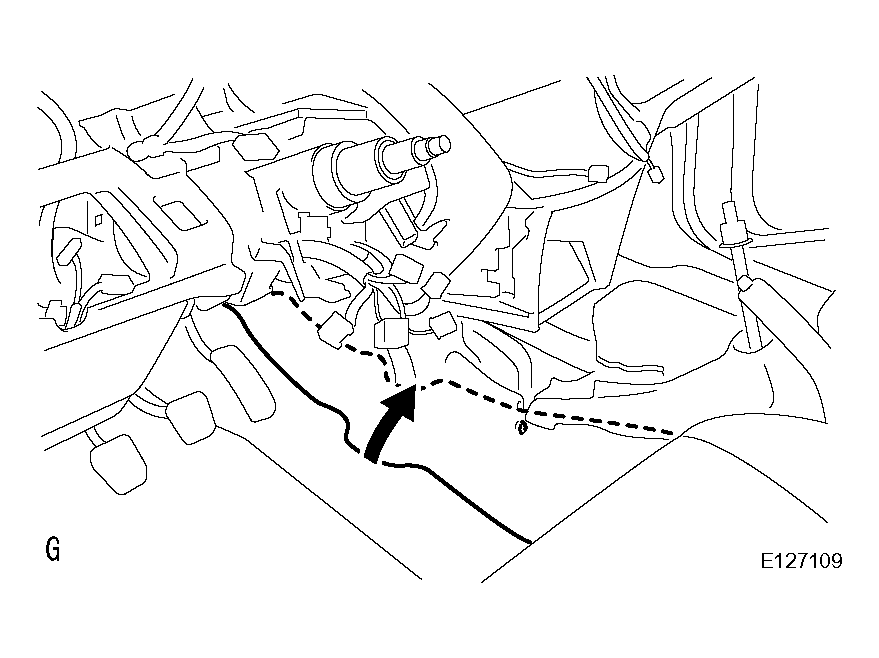

3. Reposition the floor carpet.
   Fig 14: Repositioning Floor Carpet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

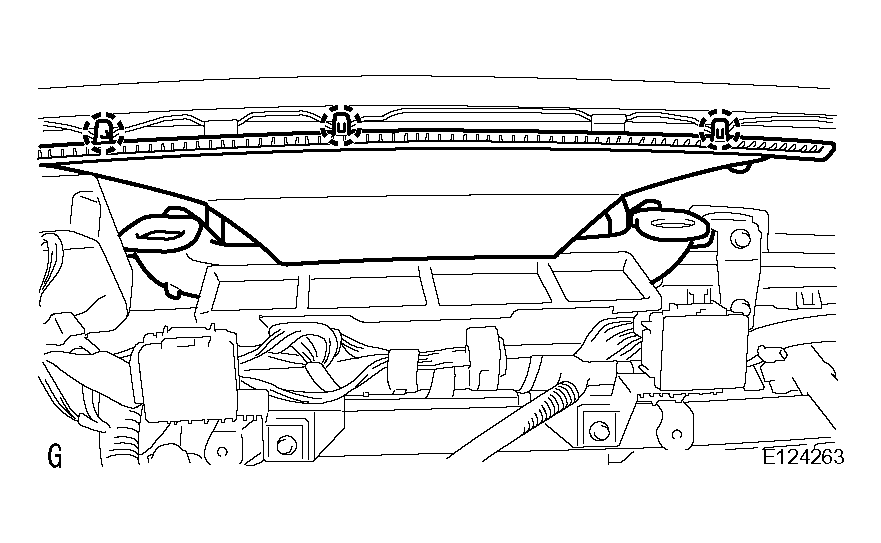

1. Attach the 3 claws and install the defroster nozzle assembly lower.

1. Install the lower instrument panel (see INSTALLATION ).

1. Install the upper instrument panel (see INSTALLATION ).
   Fig 15: Installing Defroster Nozzle Assembly Lower

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the steering column (see INSTALLATION ).

1. Connect the water hose and attach the clip.

HINT:

Use the same procedures described for the water outlet hose.

Fig 16: Connecting Heater Water Inlet And Outlet Hose

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the attached vinyl tape from the pipe.
2. Sufficiently apply compressor oil to new 2 O-rings and the fitting surface of the suction tube and liquid tube.

   Compressor oil: ND-OIL 8 or equivalent

3. Install the 2 O-rings on the suction tube and liquid tube.
4. Connect the suction tube and liquid tube.

   HINT:

   After the connection, check that the claw of the piping clamp is engaged.

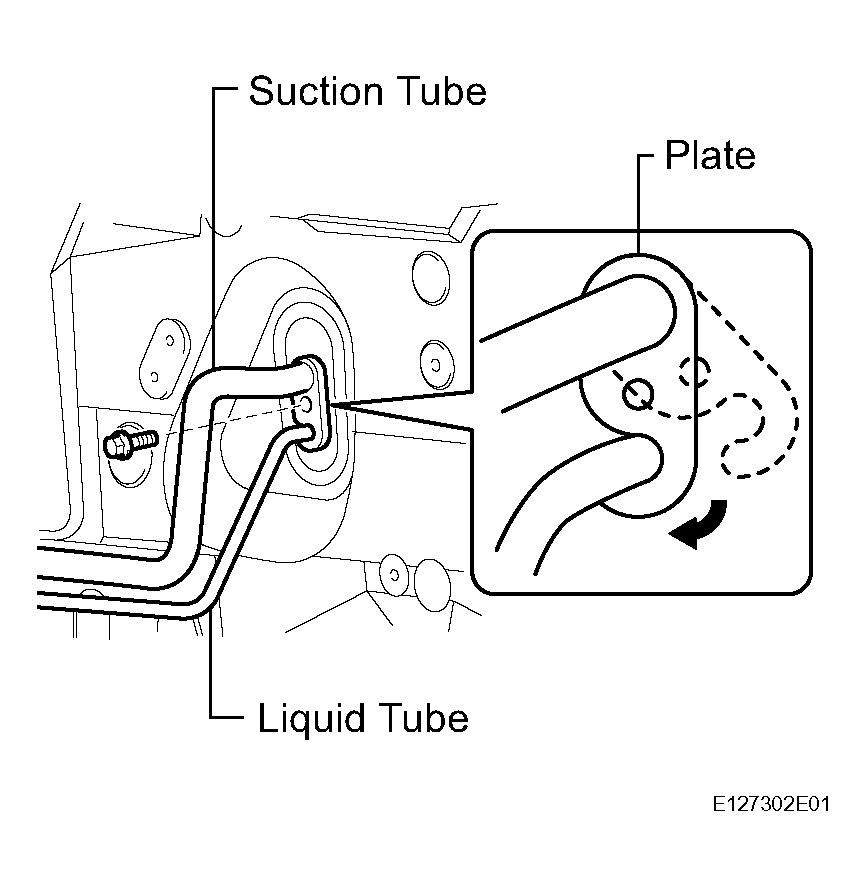

5. Install the plate with the bolt.

   Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

   Fig 17: Installing Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).

Refer to the following procedures (see COOLANT ).
