Upper Instrument Panel: Installation

WARNING: This page is about a different car, the 2007 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL UPPER INSTRUMENT PANEL
    1. Attach the 6 clips and 5 claws to install the instrument panel.
    2. Connect the connectors and clamps.
    3. Install the 2 bolts and 2 screws.

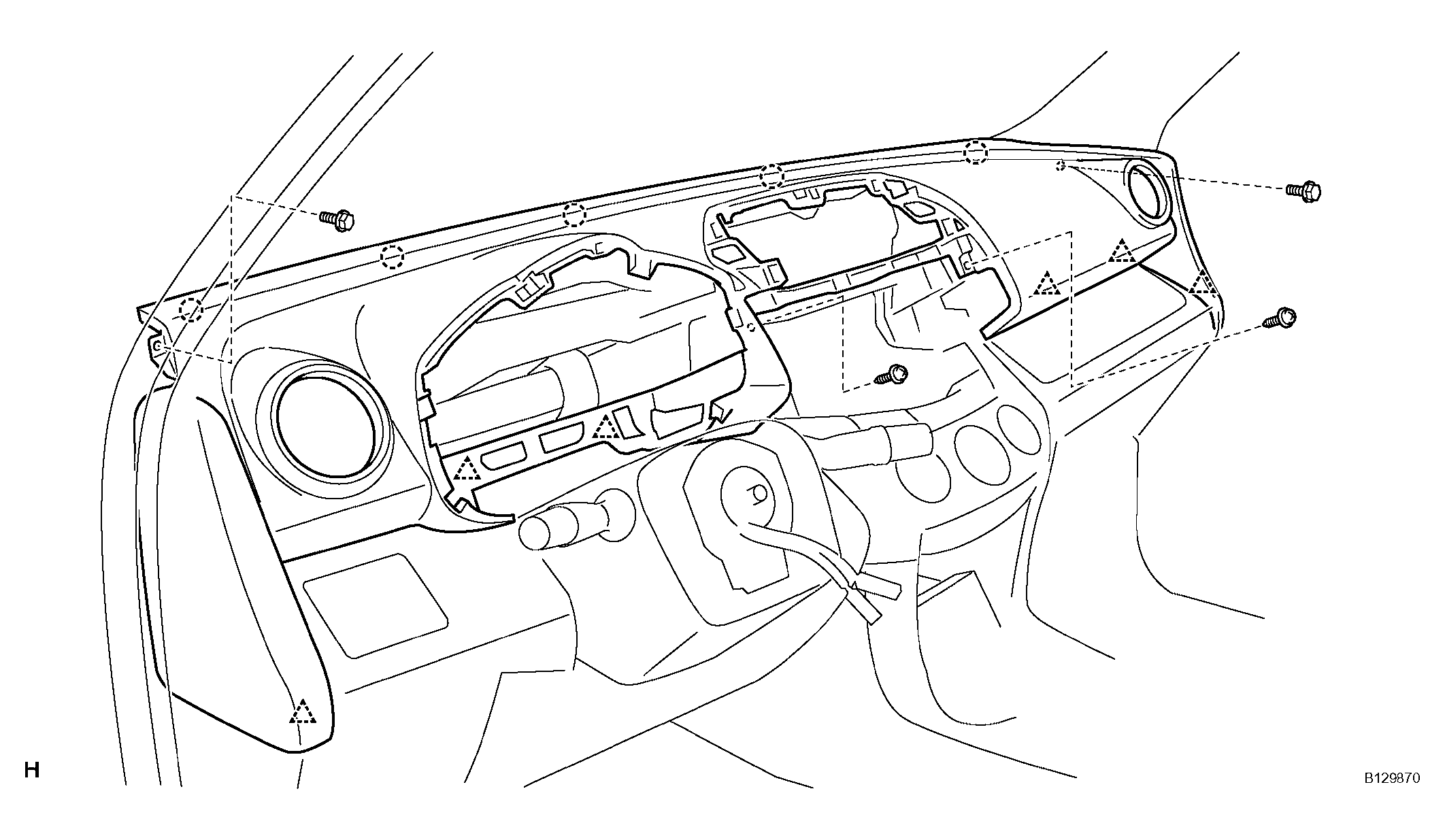

      Fig 1: Installing Upper Instrument Panel
      G04491533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the passenger airbag connector.
    5. Install the 2 bolts to the passenger airbag.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

  2. INSTALL FRONT PILLAR GARNISH LH (See appropriate step(s) under  INSTALLATION  )
  3. INSTALL FRONT PILLAR GARNISH RH (See appropriate step(s) under  INSTALLATION  )
  4. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See  INSTALLATION  )
    Fig 2: Installing Glove Compartment Door Assembly Bolts
    G04491534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL INSTRUMENT PANEL REGISTER ASSEMBLY CENTER
    1. Attach the 5 clips to install the instrument panel register.

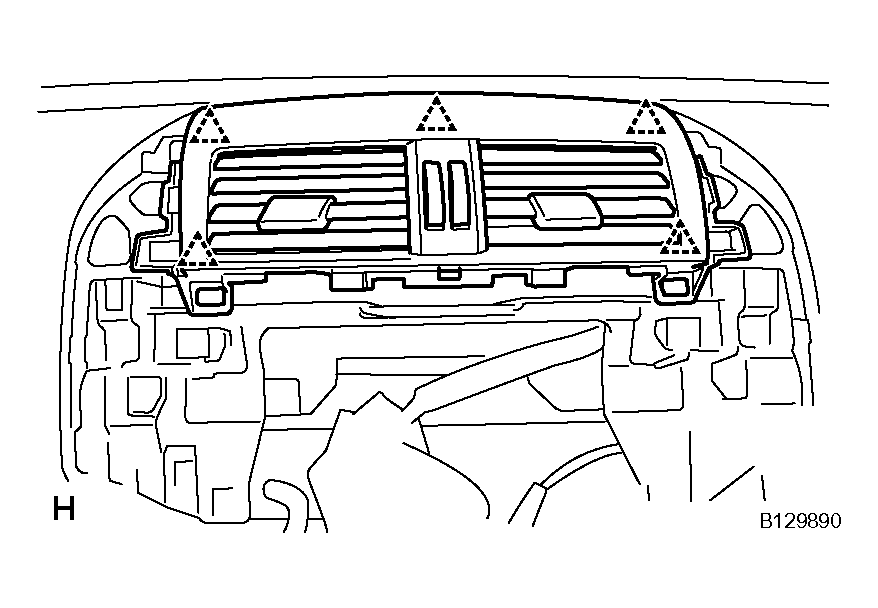

      Fig 3: Installing Instrument Panel Register
      G04491535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL RADIO RECEIVER
    1. Connect the connectors.
    2. Attach the 4 clips to install the radio receiver.
    3. Install the 4 bolts.

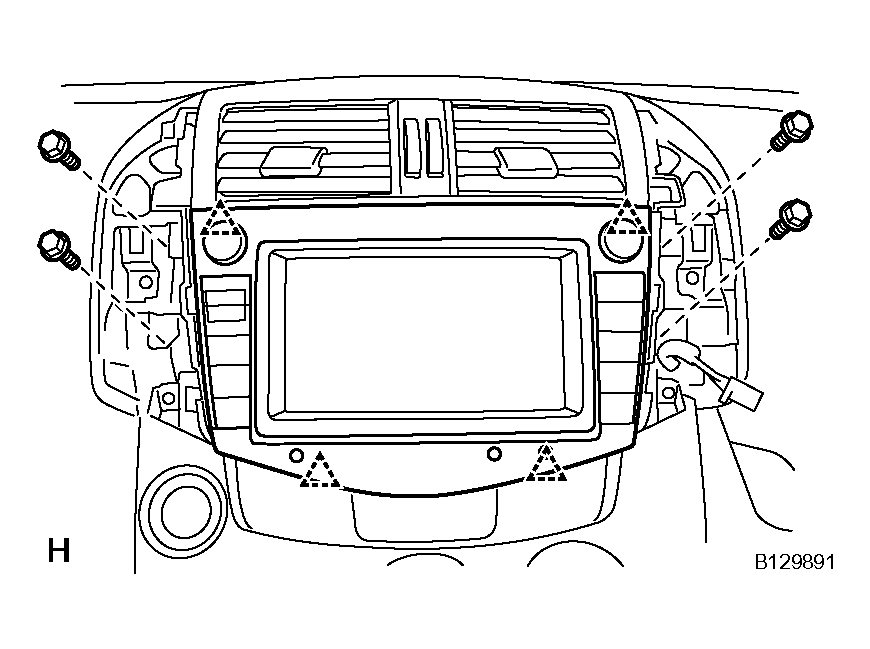

      Fig 4: Installing Radio Receiver
      G04491536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 INSTRUMENT CLUSTER FINISH PANEL CENTER
    1. Connect the connector.
    2. Attach the 3 clips and 3 claws to install the cluster finish panel.
      Fig 5: Installing No. 1 Instrument Cluster Finish Panel Center
      G04491537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL NO. 2 INSTRUMENT CLUSTER FINISH PANEL CENTER
    1. Connect the connector.
    2. Attach the 3 clips and 3 claws to install the cluster finish panel.
      Fig 6: Installing No. 2 Instrument Cluster Finish Panel Center
      G04491538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
    2. Attach the 2 clips to install the combination meter.
    3. Install the 2 screws.

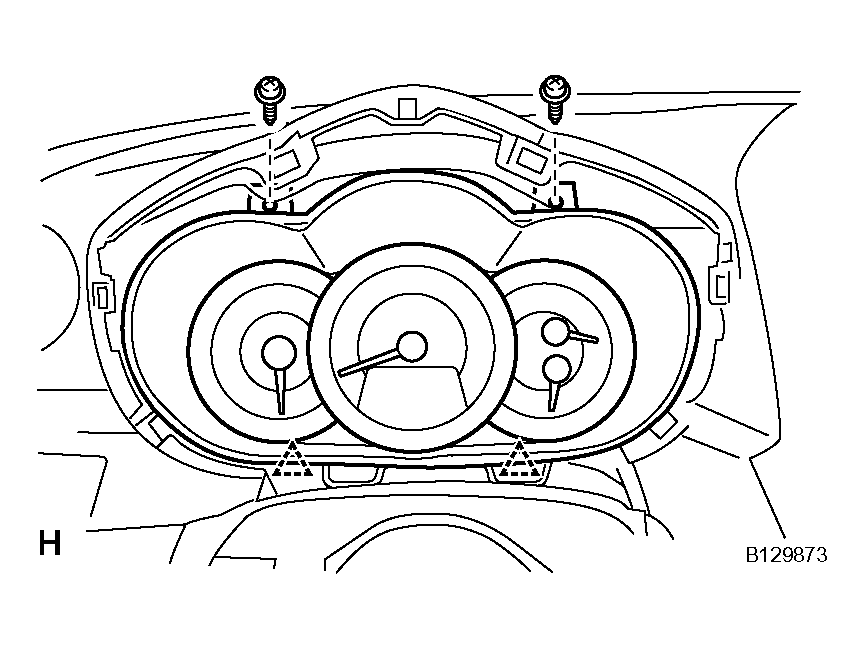

      Fig 7: Installing Combination Meter Assembly
      G04491539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Attach the 4 clips and 6 claws to install the instrument cluster finish panel.

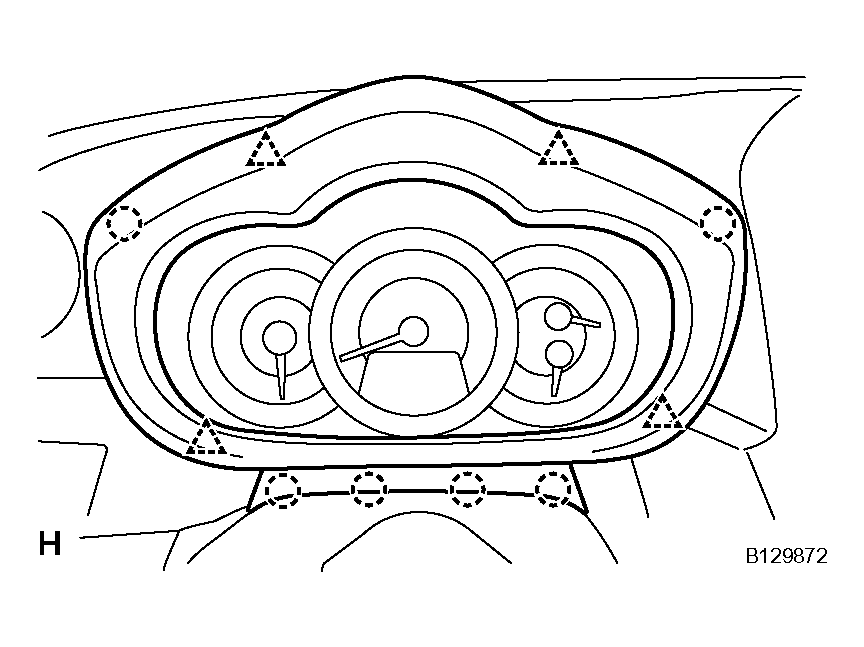

      Fig 8: Attaching Instrument Cluster Finish Panel
      G04491540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
